Installation Procedure
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
- Apply a light coat of high temperature brake lubricant to the park brake shoe contact areas of the parking brake anchor backing plate.

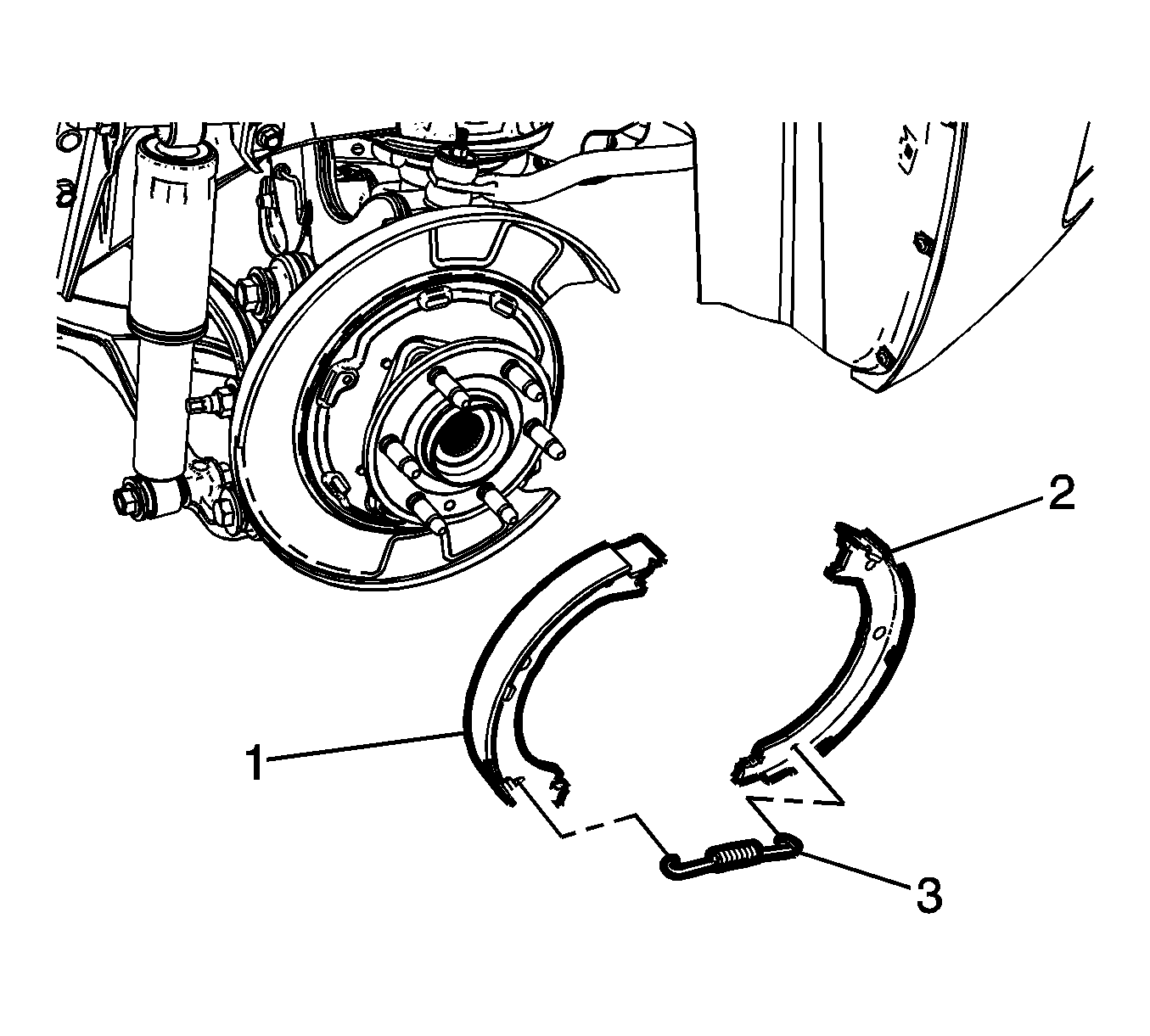

- Install the front park brake shoe (1), rear park brake shoe (2), and the lower retaining spring (3) to the parking brake anchor backing plate.

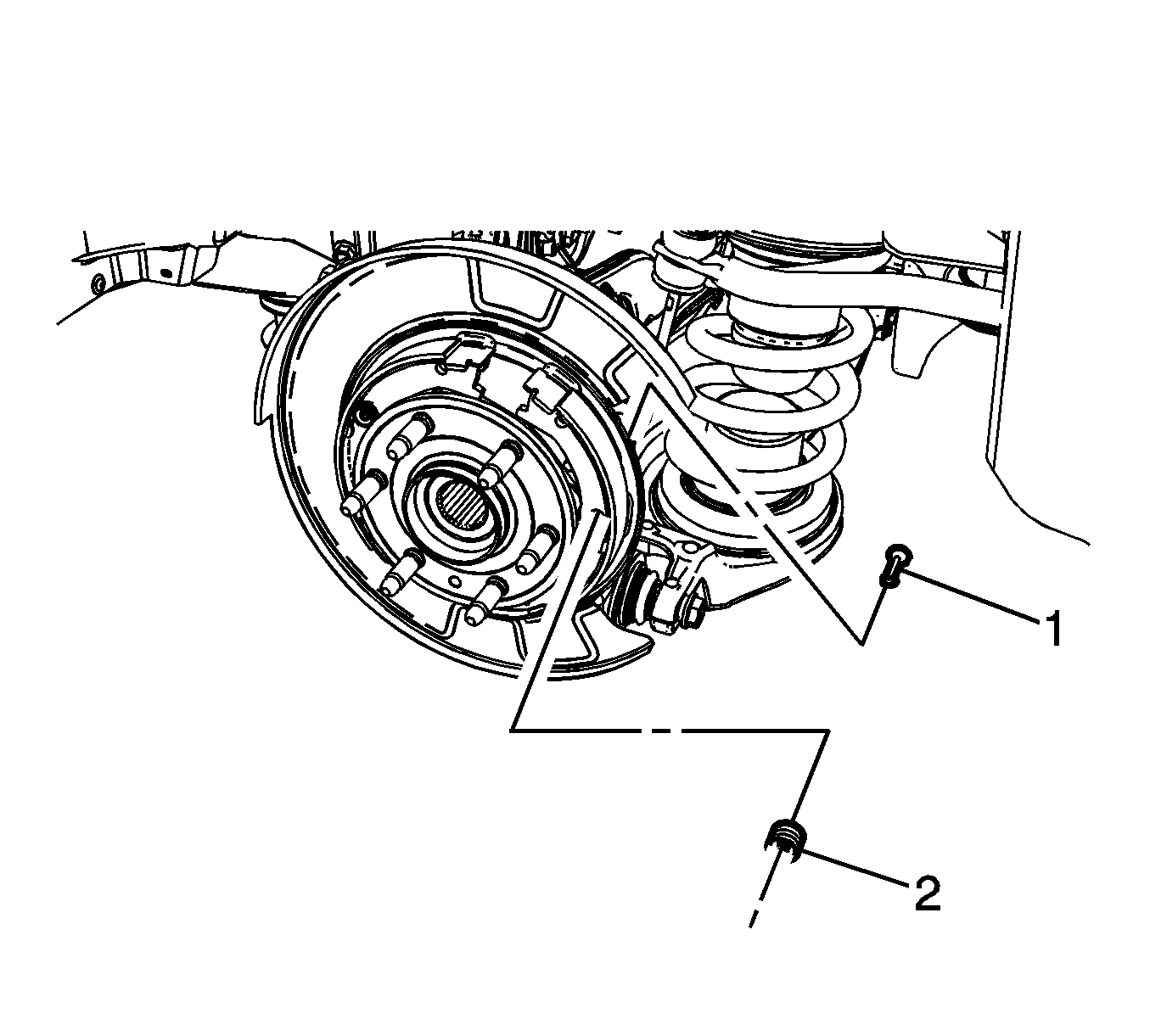

- While holding the front park brake shoe hold down spring pin (1) stationary, compress and rotate the hold down spring and cup (2) 1/4 turn.

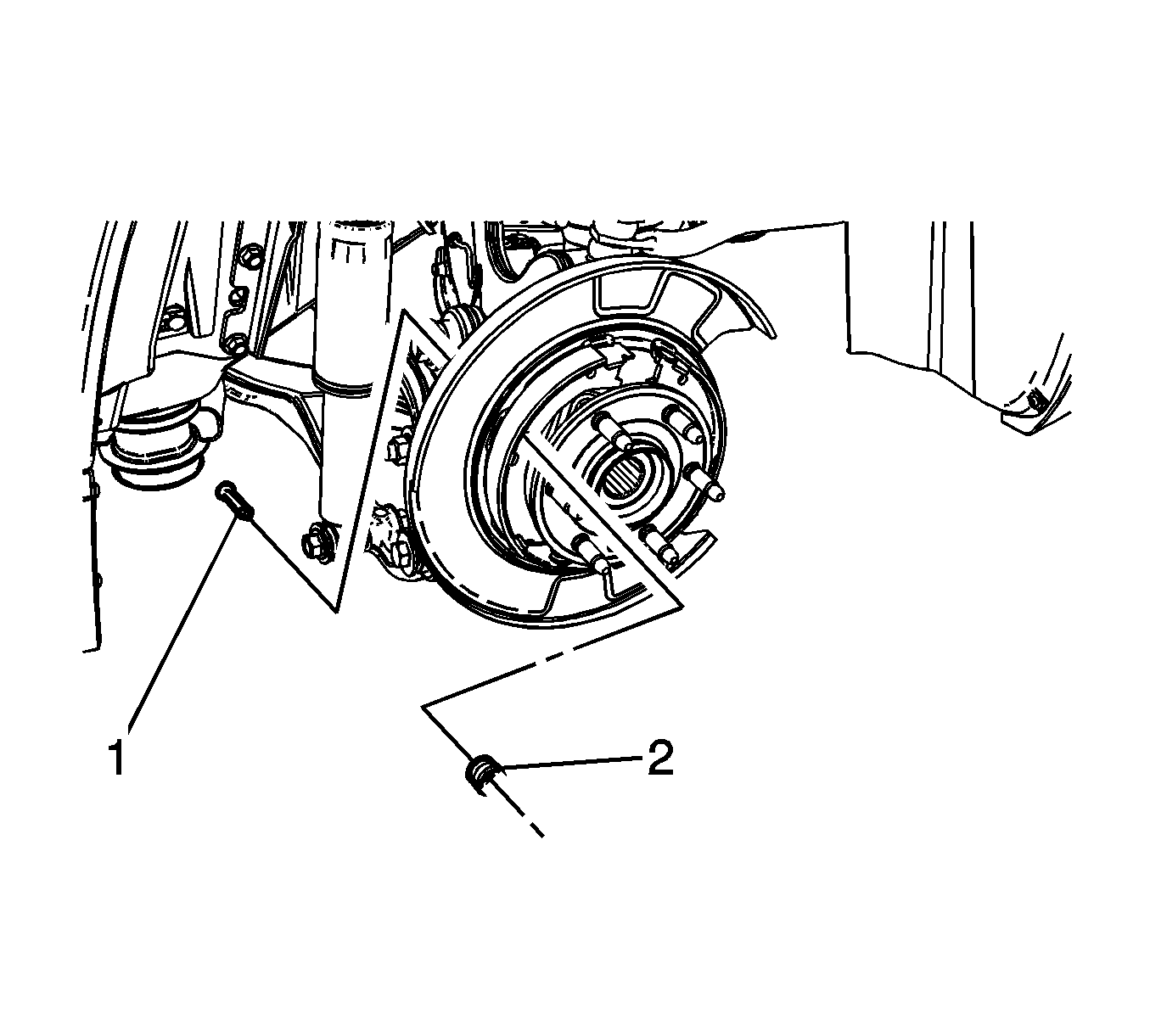

- While holding the rear park brake shoe hold down spring pin (1) stationary, compress and rotate the hold down spring and cup (2) 1/4 turn.

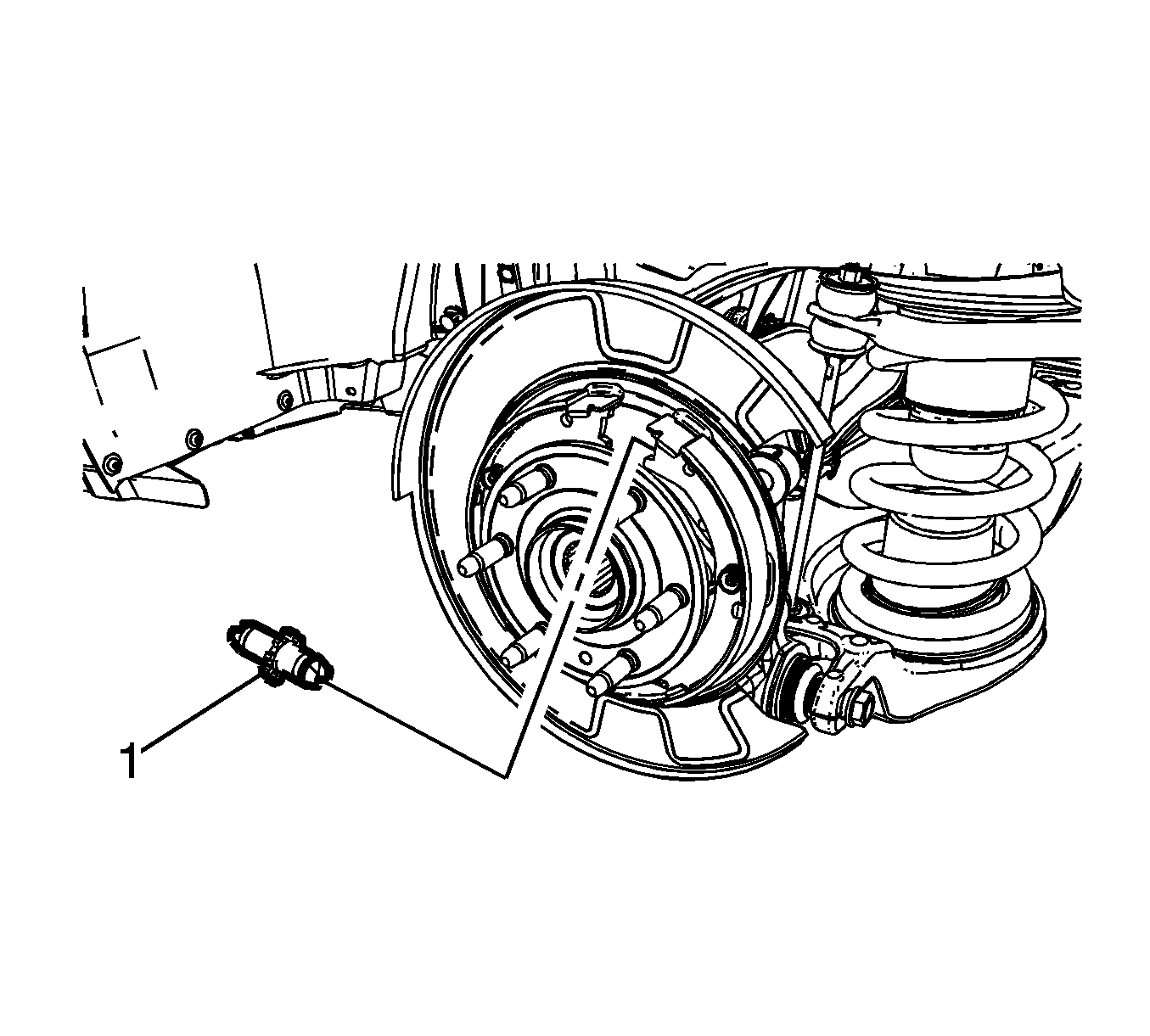

- Install the park brake shoe adjuster (1).
- Install the rear park brake shoe hold down spring (1) by compressing the spring and rotating 1/4 turn.

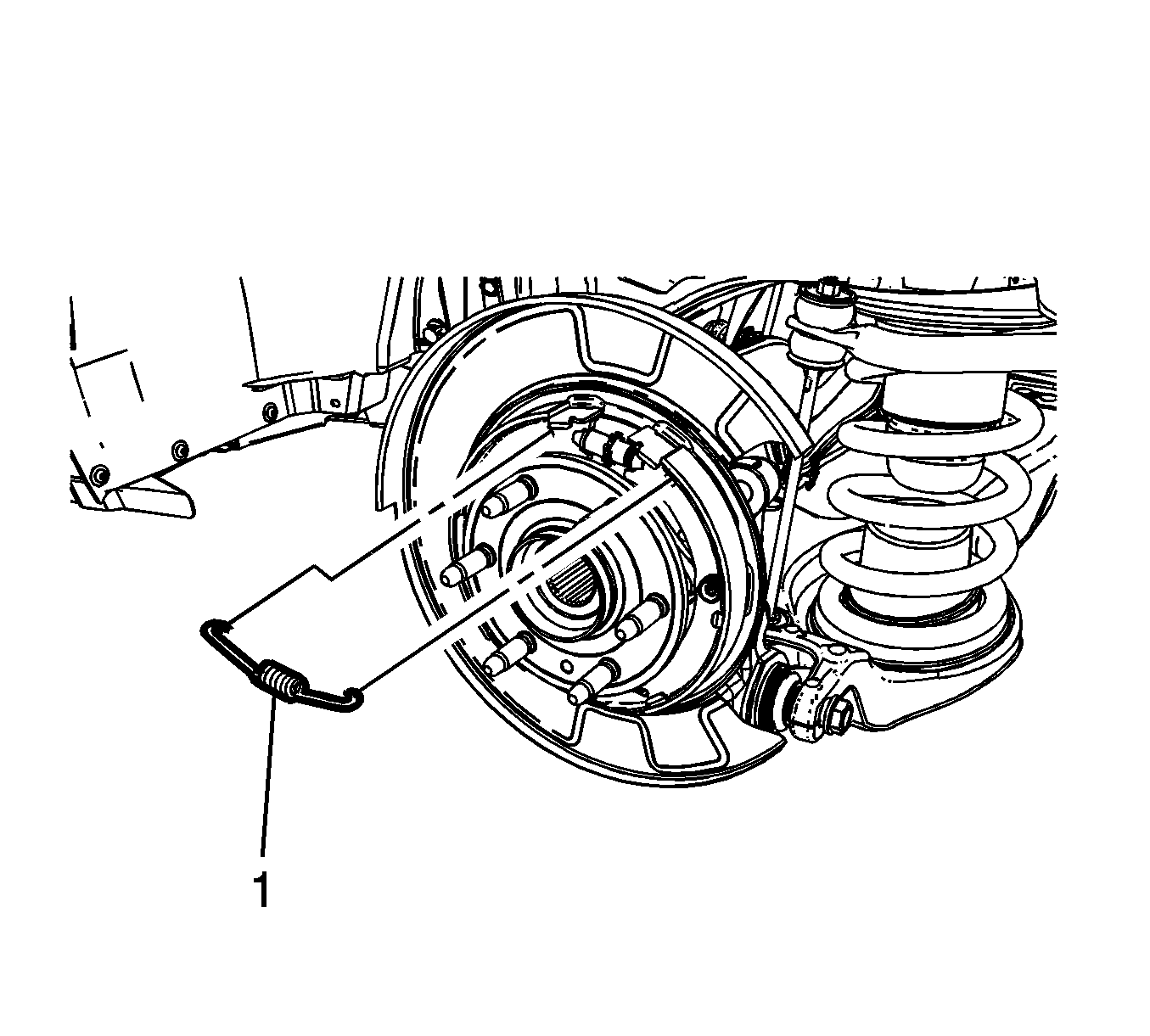

- Install the upper park brake shoe retainer spring (1).
- Adjust the park brake. Refer to Parking Brake Adjustment .
