Removal Procedure
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
- Release the park brake.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
- Loosen, but do not remove the park brake equalizer locknut (1).

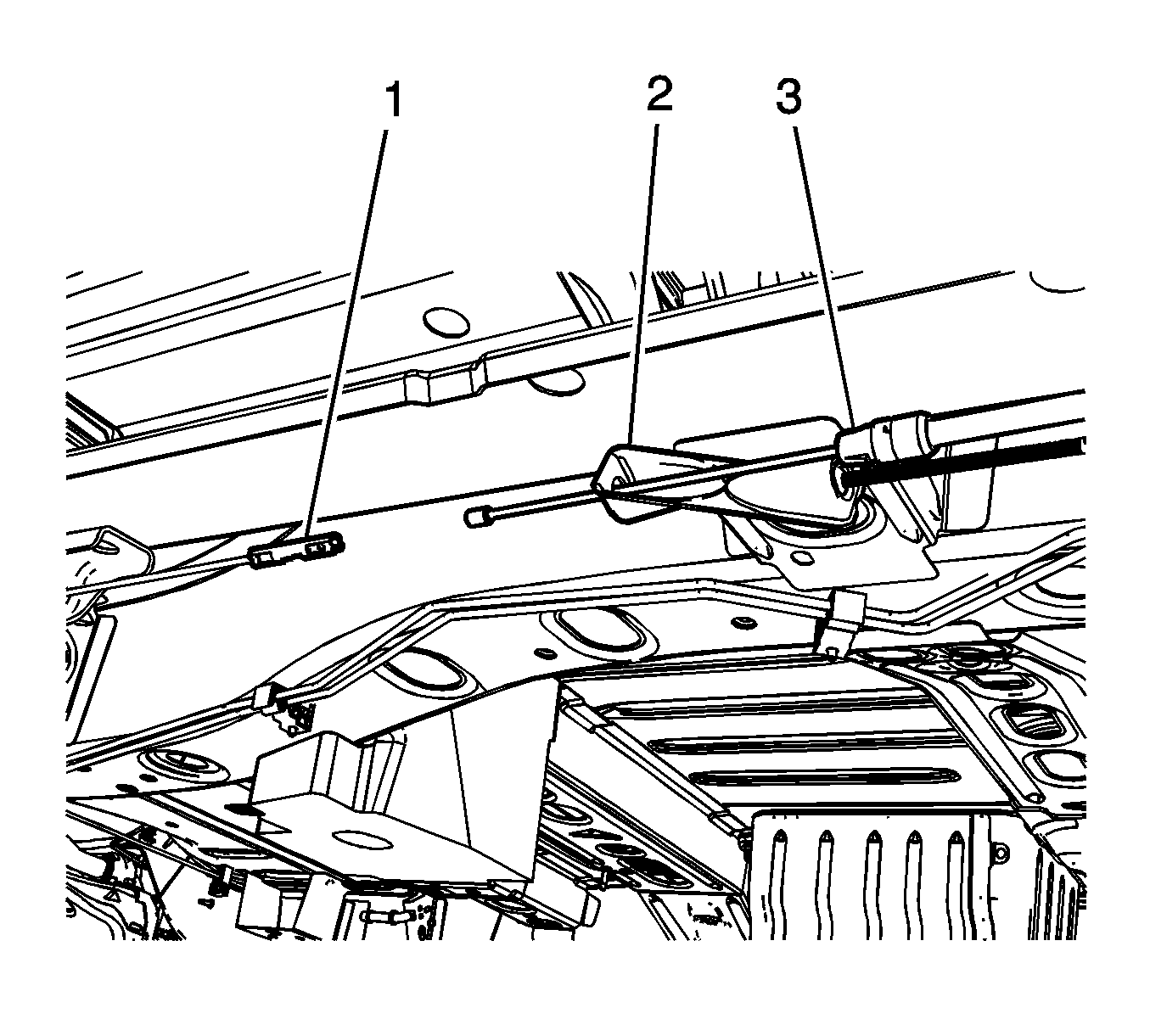

- Disconnect the front park brake cable (1) from the right park brake cable.
- Using the J 37043 parking brake cable release tool, release the park brake cable from the park brake equalizer (2) by compressing the locking tabs on the cable conduit (3).
- Remove the 2 park brake cable bracket bolts located on top of the crossmember above the rear suspension module.

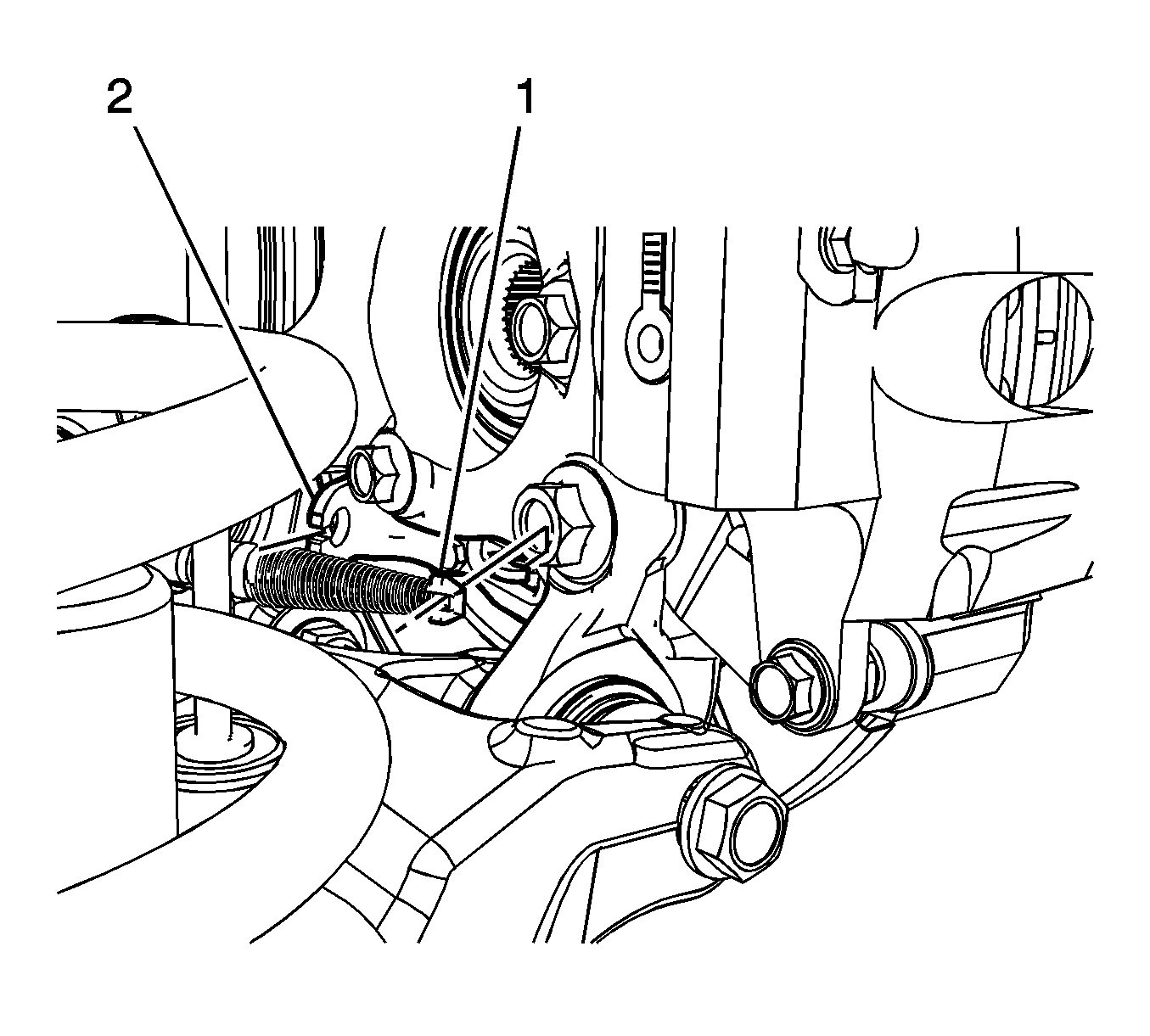

- Disconnect the park brake cable eyelet (1) from the park brake actuator.
- Compress the locking tabs and pull the park brake cable conduit toward the front of the vehicle to compress the park brake cable spring.
- Remove the park brake cable from the cable bracket (2).
- Pull the park brake cable through the cable guides and remove the park brake cable from the vehicle.
