Parking Brake Actuator Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

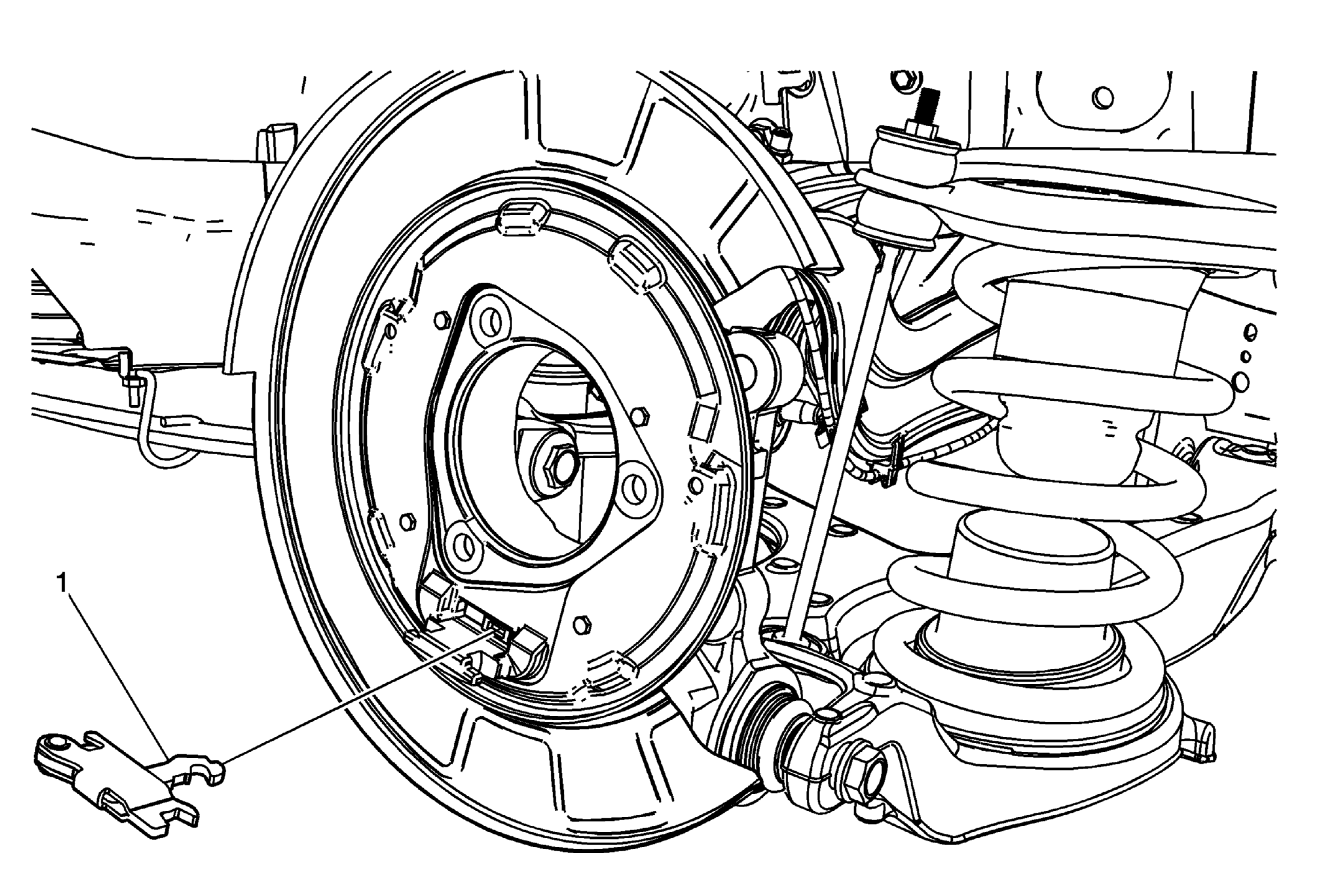

Fig 1: Parking Brake Actuator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Brake Dust Warning . Preliminary Procedures Release the park brake. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Remove the park brake shoes. Refer to Parking Brake Shoe Replacement .
1	Park Brake Actuator Procedure Disconnect the park brake cable from the actuator. After the installation is complete, adjust the park brake. Refer to Parking Brake Adjustment

Callout

Component Name

WARNING:

Refer to Brake Dust Warning .

Preliminary Procedures

Release the park brake.
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Remove the park brake shoes. Refer to Parking Brake Shoe Replacement .

Park Brake Actuator

Procedure

Disconnect the park brake cable from the actuator.
After the installation is complete, adjust the park brake. Refer to Parking Brake Adjustment
