Ignition Lock Cylinder Opening Trim Cover Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

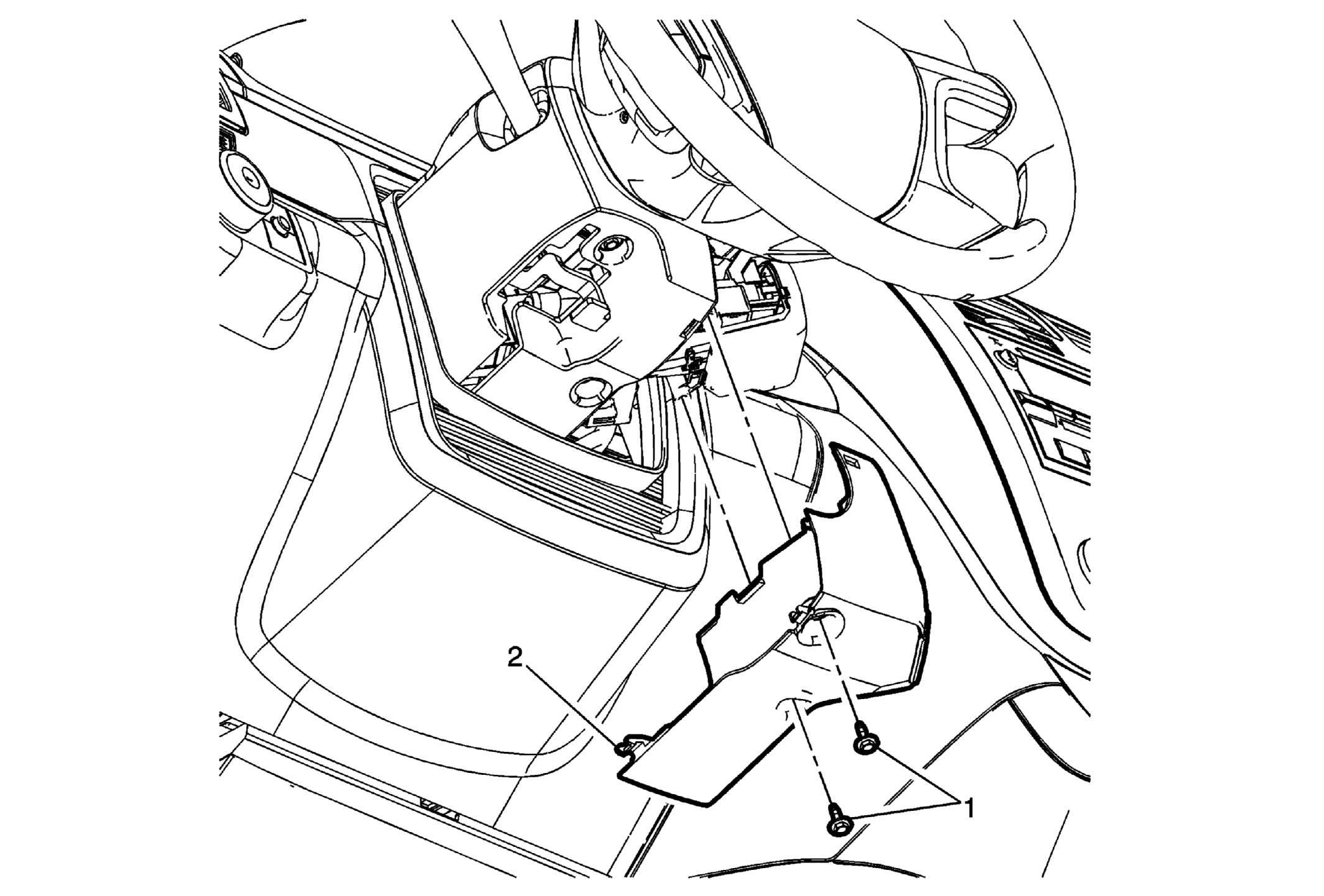

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the steering column lower trim cover bolts. Refer to Steering Column Lower Trim Cover Replacement . |
|
| 1 | Ignition Lock Cylinder Opening Trim Cover Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Ignition Lock Cylinder Opening Trim Cover Procedure
|
