M73C Seat Blower Motor - Driver Cushion
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
|
|

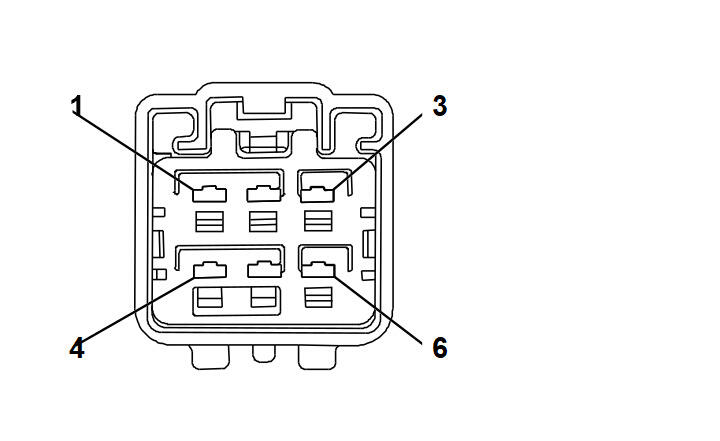

Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 7282-6466-40
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way M YESC Kaizen Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-5 (PU) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2 |
RD/WH |
640 |
Battery Positive Voltage |
I |
- |
| 2 |
0.35 |
L-BU/WH |
181 |
Heated Seat Control Module Status Signal |
I |
- |
| 3 |
2 |
BK |
550 |
Ground |
I |
A45+KB6 |
| 4 |
0.35 |
OG |
7018 |
Cushion NTC Signal |
I |
A45+KB6 |
| 5 |
0.35 |
OG/WH |
7019 |
Cushion NTC Low Reference |
I |
A45+KB6 |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
