M55P Seat Rear Vertical Motor - Passenger
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
|
|

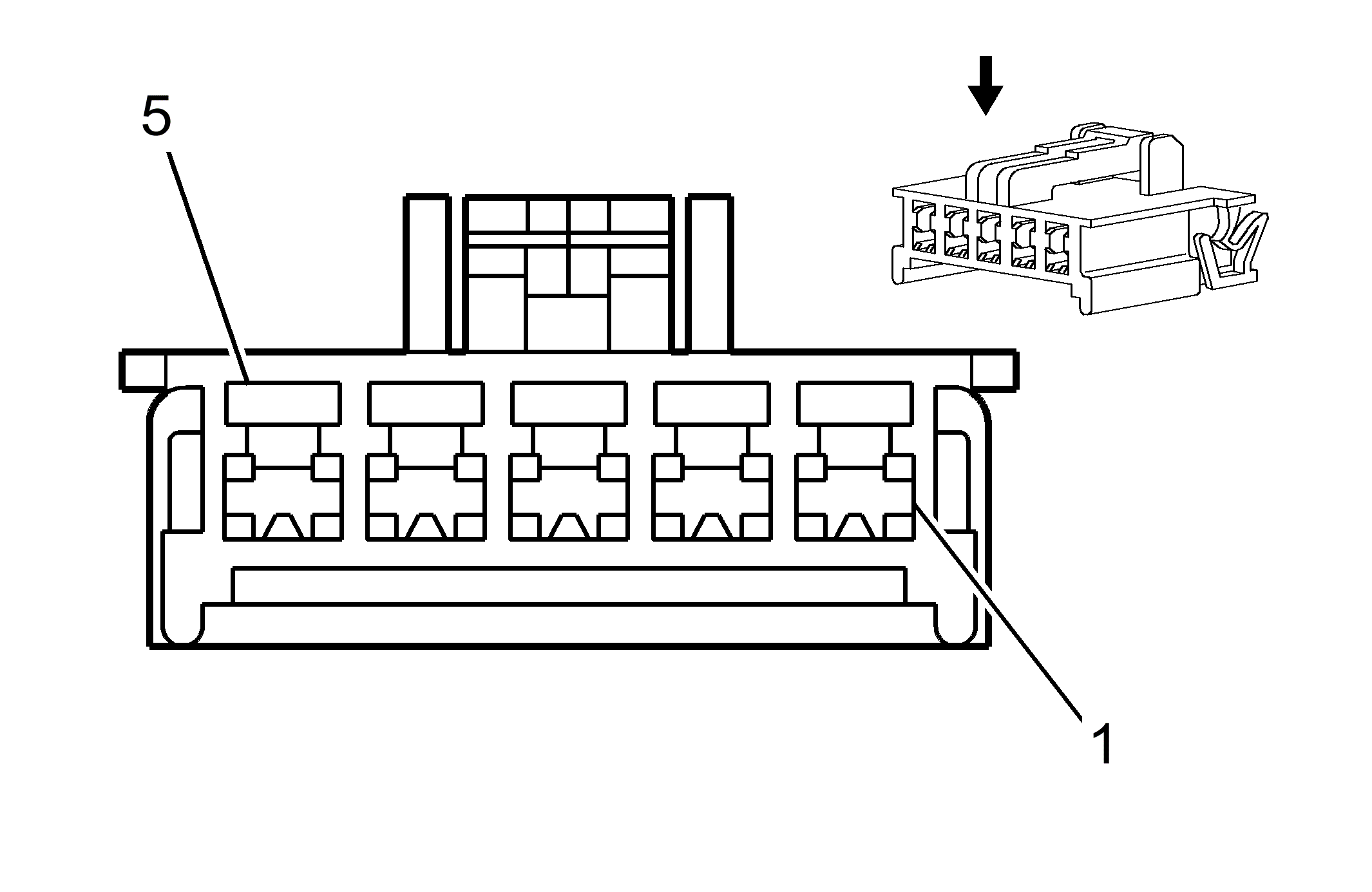

Connector Part Information
- Harness Type: Passenger Seat
- OEM Connector: 6098-0344
- Service Connector: Service by Harness - See Part Catalog
- Description: 5-Way F HD 090 Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2 |
YE |
288 |
Passenger Power Seat Rear Vertical Motor Up Control |
I |
AH8 |
| 2 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
2 |
L-BU |
289 |
Passenger Power Seat Rear Vertical Motor Down Control |
I |
AH8 |
