B5RR Wheel Speed Sensor - Right Rear
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
|
|

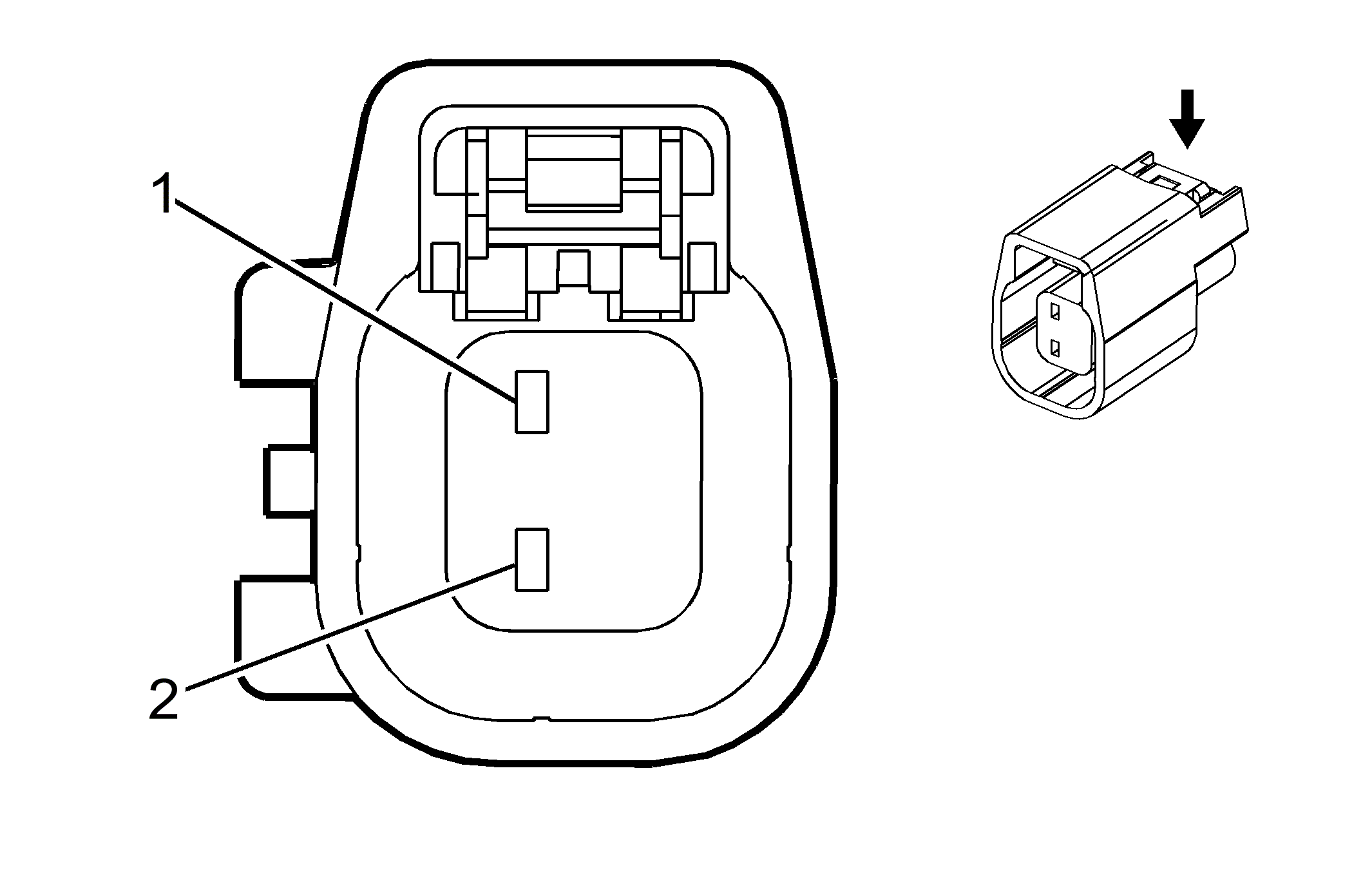

Connector Part Information
- Harness Type: Rear Axle
- OEM Connector: 7287-1597-30
- Service Connector: 13587192
- Description: 2-Way F (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN |
882 |
Wheel Speed Sensor Signal Right Rear |
I |
- |
| 2 |
0.5 |
WH |
883 |
Wheel Speed Sensor Low Reference Right Rear |
I |
- |
