Disassemble Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel drive shaft from the vehicle. Refer to Rear Wheel Drive Shaft and Rear Axle Shaft Seal Replacement .
  2. Fig 1: Wheel Drive Shaft In Vise
    GM860858Courtesy of GENERAL MOTORS COMPANY
  3. Install the wheel drive axle shaft in a soft jawed vice.
  4. Fig 2: Boot Clamps
    GM2008294Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Do not cut through the wheel drive shaft inboard or outboard boot during service. Cutting through the boot may damage the sealing surface of the housing and the tripot or the constant velocity joint bushing. Damage to the sealing surface may lead to water and dirt intrusion and premature wear of the constant velocity joint.

    NOTE:

    The following proceed is for the wheel drive shaft that have the low profile boot clamp. If the wheel drive shaft is equipped with the ear type boot clamp, proceed to step 6.

  5. Using the appropriate tool, remove and discard the outer boot clamp (2) from the CV joint boot (3).
  6. Using a pair of side cutters, remove and discard the inner boot clamp (4) from the CV joint boot (3).
  7. Remove the CV joint boot (3) from the CV joint housing (1).

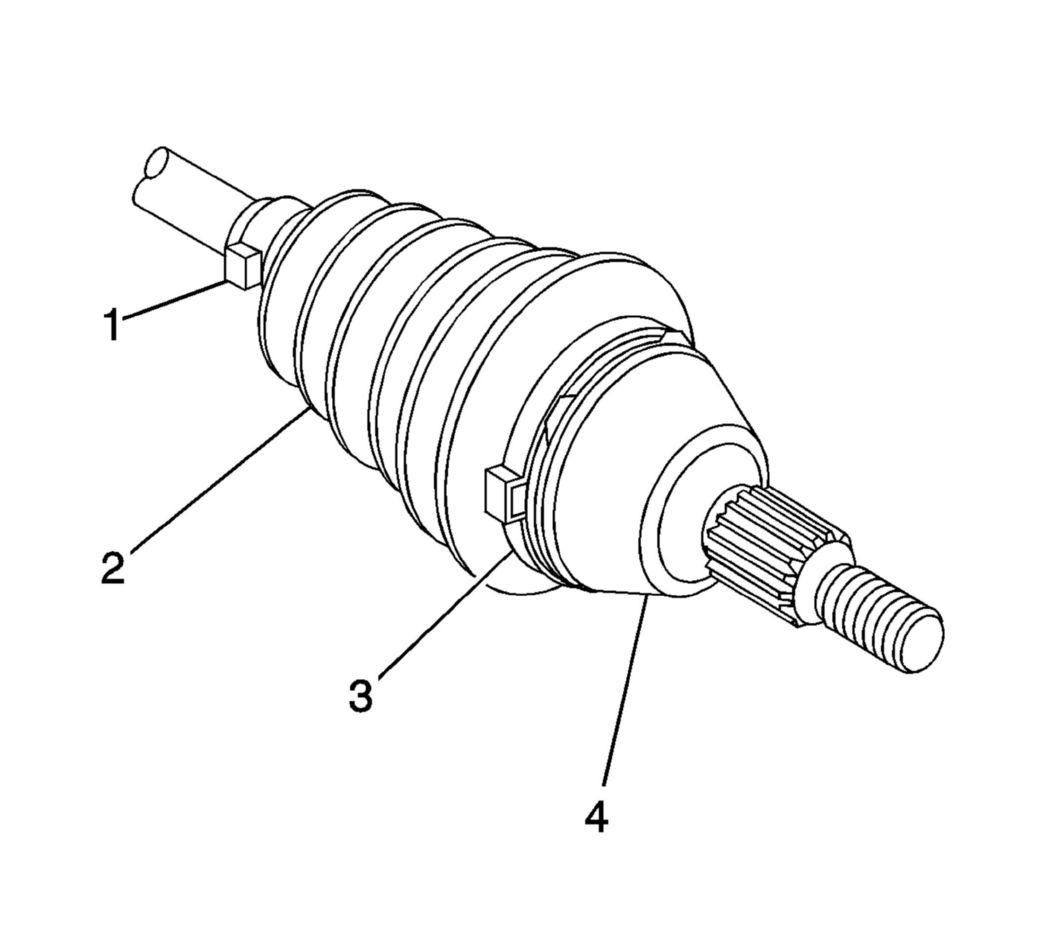

  8. Fig 3: Boot, Clamp And Outer CV Joint
    GM2094178Courtesy of GENERAL MOTORS COMPANY
  9. Using a pair of side cutters, remove and discard the outer boot clamp (3) and the inner boot clamp (1).
  10. Remove the CV joint boot (2) from the CV joint housing (4).
  11. Fig 4: Separating CV Joint From Axle Shaft
    GM891620Courtesy of GENERAL MOTORS COMPANY
  12. Using a hammer and a block of wood, remove the CV joint (2) from the wheel drive shaft (1).
  13. Fig 5: Spacer Ring
    GM233593Courtesy of GENERAL MOTORS COMPANY
  14. Using the J 8059  pliers, remove the retaining ring (2) from the wheel drive shaft.
  15. Fig 6: Boot And Wheel Drive Shaft
    GM2008315Courtesy of GENERAL MOTORS COMPANY
  16. Remove the CV joint boot (1) from the wheel drive shaft (2).
  17. Inspect the wheel drive shaft CV joint. Refer to Wheel Drive Shaft Outer Joint Inspection .
