Removal Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the right front wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement .

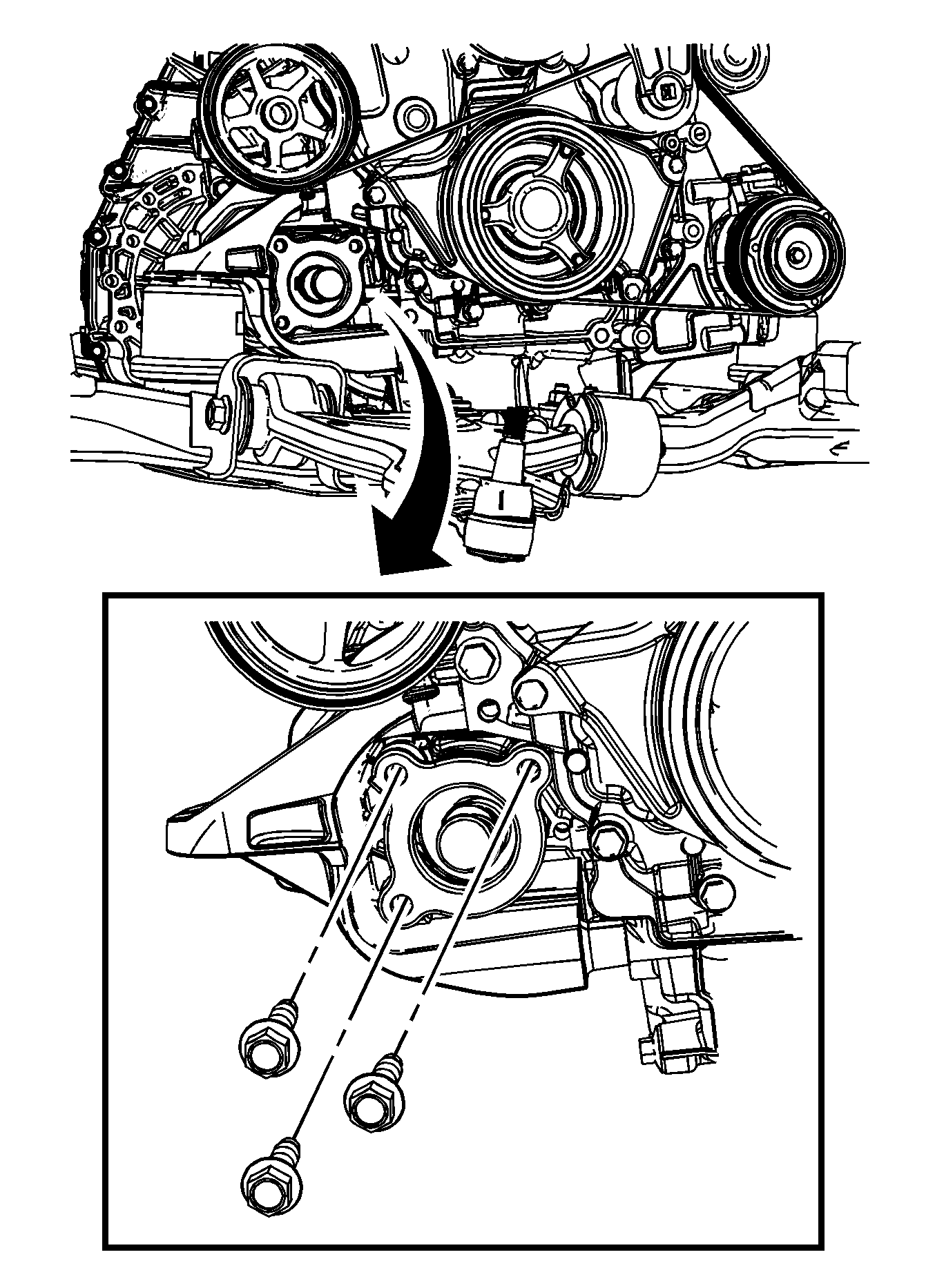

    3. Fig 1: Intermediate Drive Shaft Mounting Bolts
    GM1850442Courtesy of GENERAL MOTORS COMPANY
  3. Remove the intermediate drive shaft mounting bolts from the engine bracket.

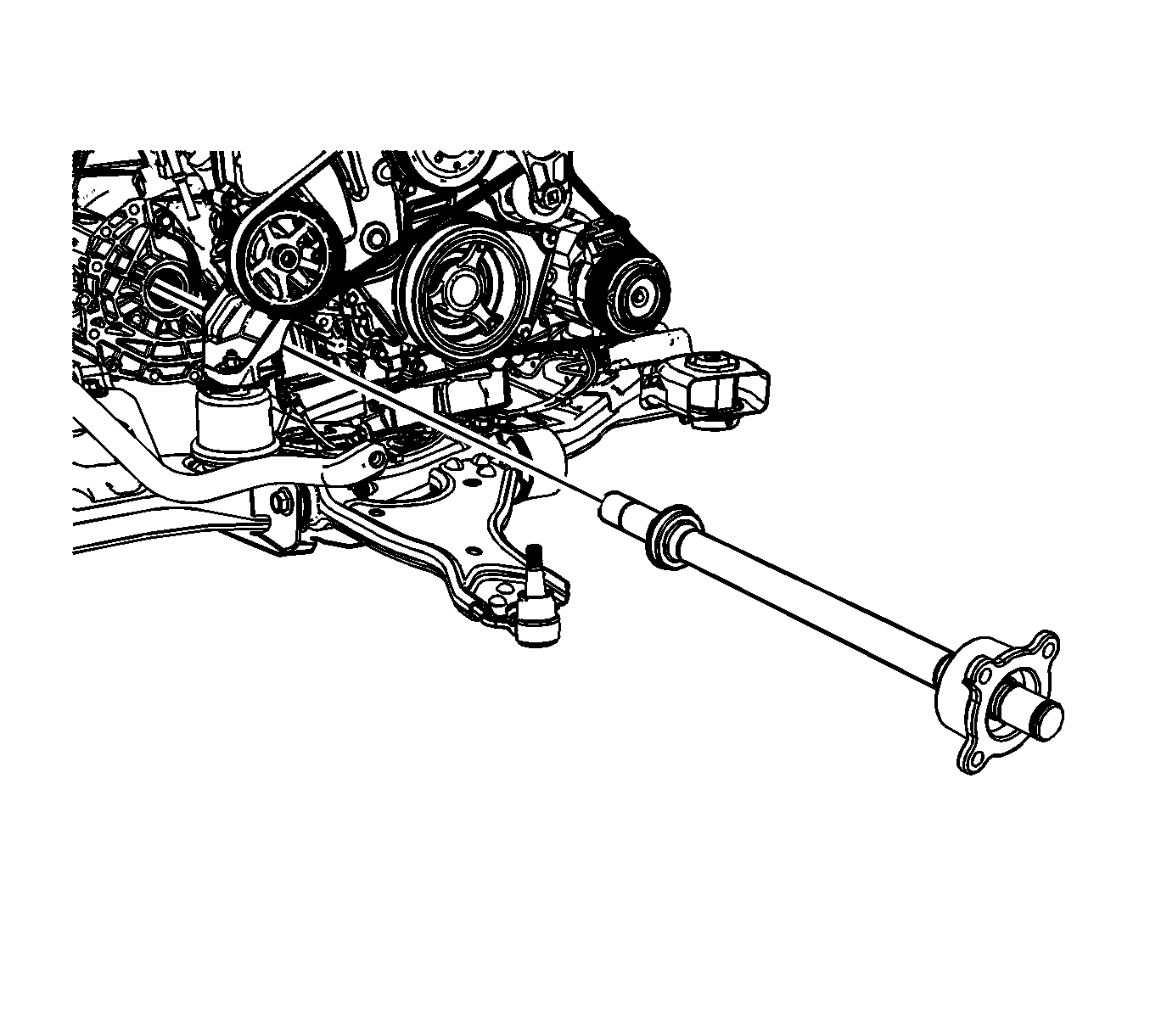

    4. Fig 2: Intermediate Drive Shaft
    GM1850888Courtesy of GENERAL MOTORS COMPANY
  4. Remove the intermediate drive shaft from the vehicle.
