Installation Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Intermediate Drive Shaft
    GM1850888Courtesy of GENERAL MOTORS COMPANY
  1. Install the intermediate drive shaft to the transaxle.
  2. Position the intermediate shaft support bracket to the engine.
    3. Fig 2: Intermediate Drive Shaft Mounting Bolts
    GM1850442Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the support bracket bolts.

    Tighten

    Tighten the bolts to 58 N.m (43 lb ft).

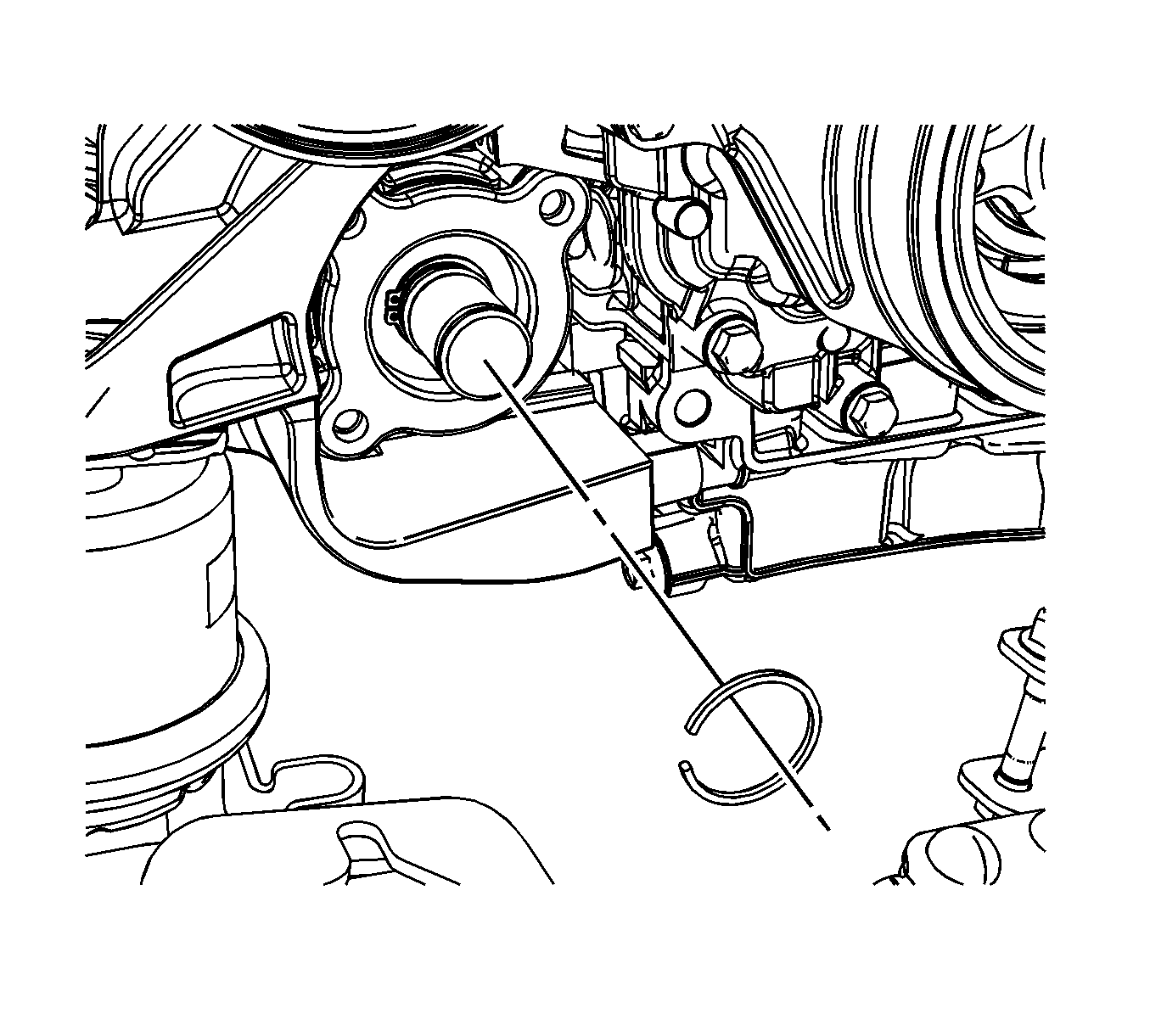

    4. Fig 3: Identifying Wheel Drive Shaft Retaining Ring
    GM1851039Courtesy of GENERAL MOTORS COMPANY
  4. Install a new wheel drive shaft retaining ring.
  5. Install the right wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement .
  6. Remove the support and lower the vehicle.
