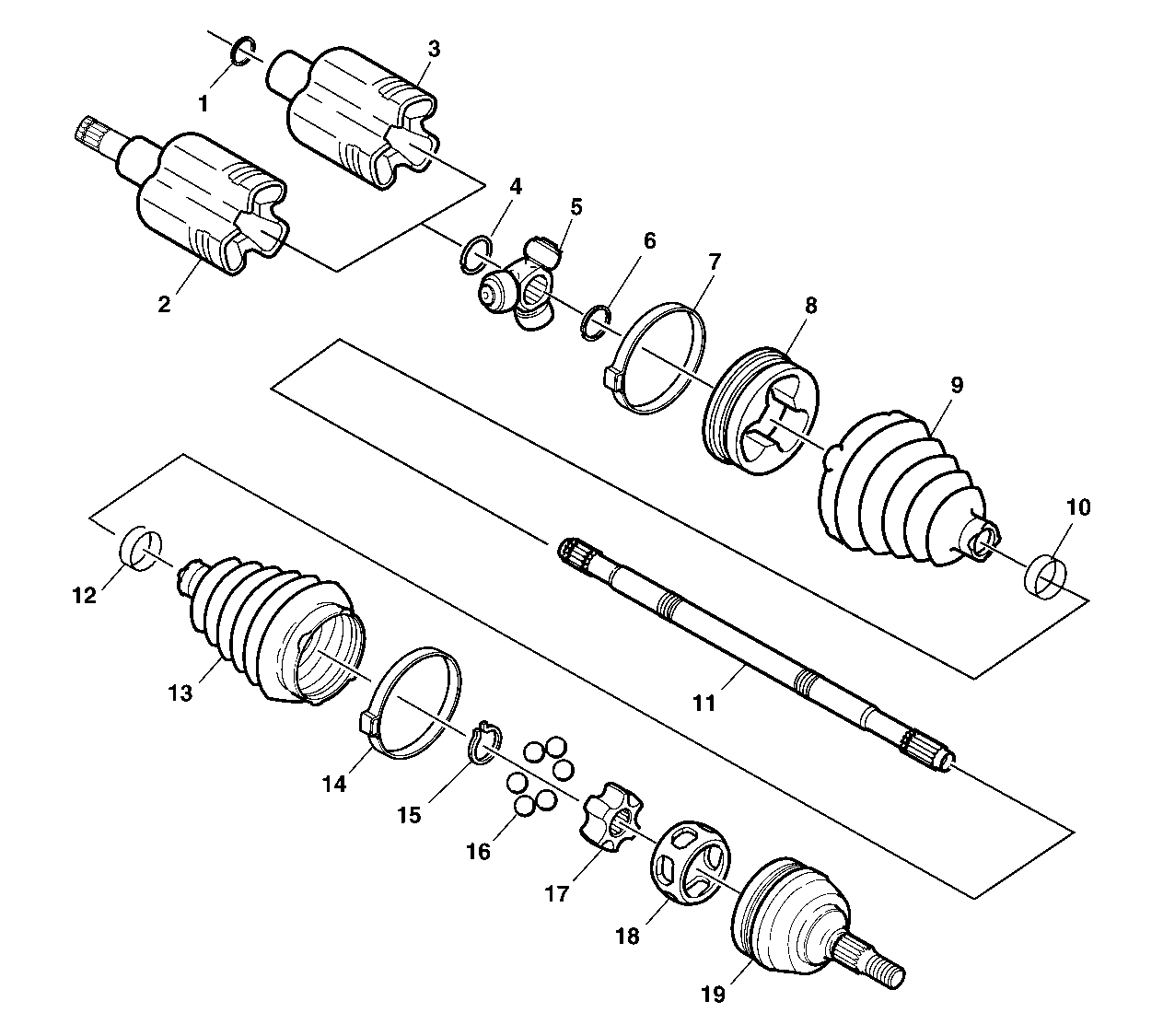

Front Wheel Drive Shaft Disassembled Views
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Retaining Ring |
| 2 | Housing Assembly |
| 3 | Retainer and Housing Assembly |
| 4 | Spacer Ring |
| 5 | Tripot Joint Spider Assembly |
| 6 | Spacer Ring (If Equipped) |
| 7 | Boot Retaining Clamp |
| 8 | Trilobal Tripot Bushing |
| 9 | Tripot Joint Boot |
| 10 | Swage Ring |
| 11 | Halfshaft Bar |
| 12 | Swage Ring |
| 13 | CV Joint Boot |
| 14 | Boot Retaining Clamp |
| 15 | Race Retaining Ring |
| 16 | Chrome Alloy Ball |
| 17 | CV Joint Inner Race |
| 18 | CV Joint Cage |
| 19 | CV Joint Outer Race |
