Installation Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

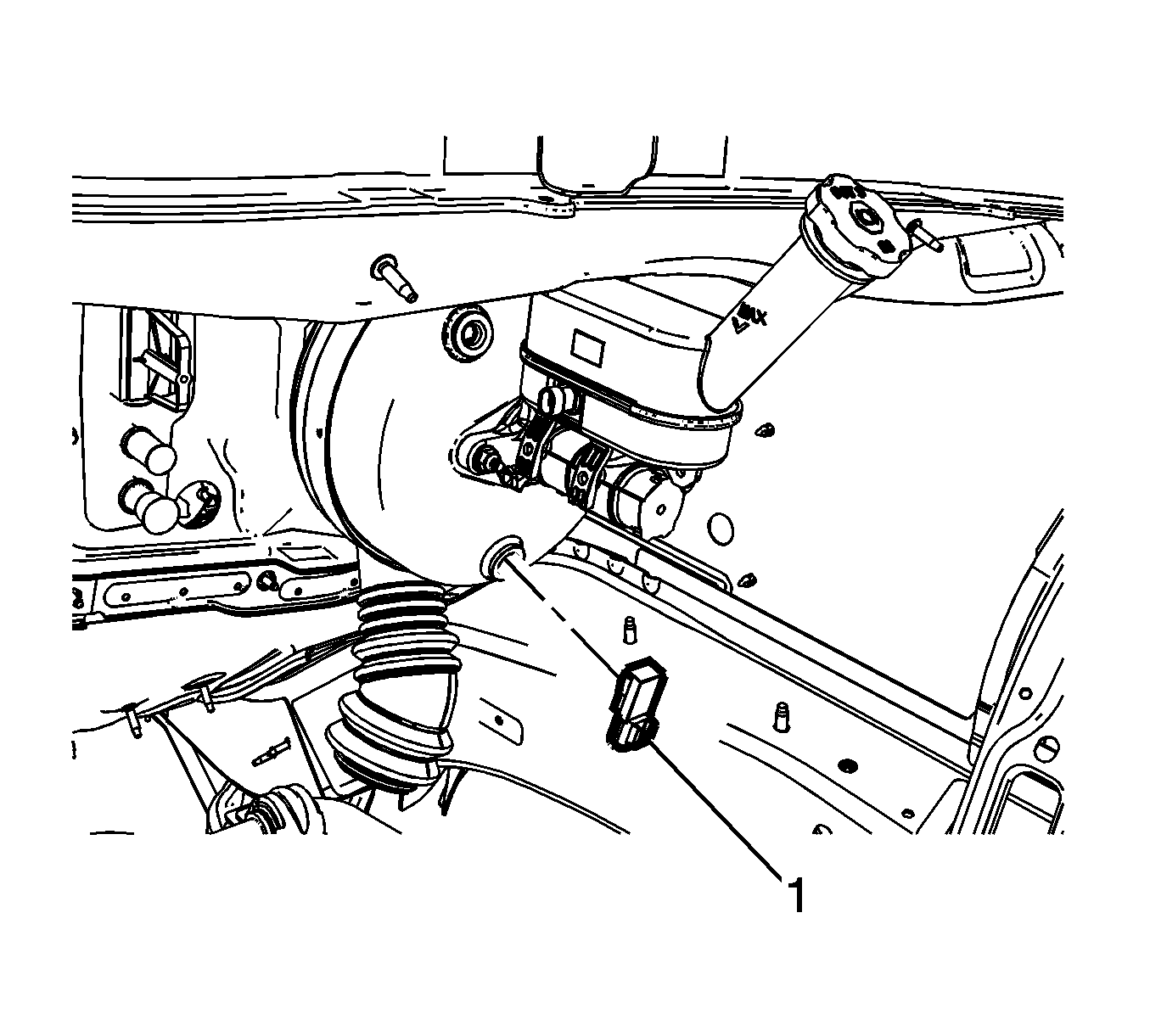

    Fig 1: Power Brake Booster Vacuum Sensor
    GM2664138Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    A small amount of denatured alcohol can be used as a lubricant for installation. Do not use soap.

  1. Install the power brake booster vacuum sensor (1) to the brake booster.
  2. Connect the power brake booster vacuum sensor electrical connector.
