Spare Wheel Hoist Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

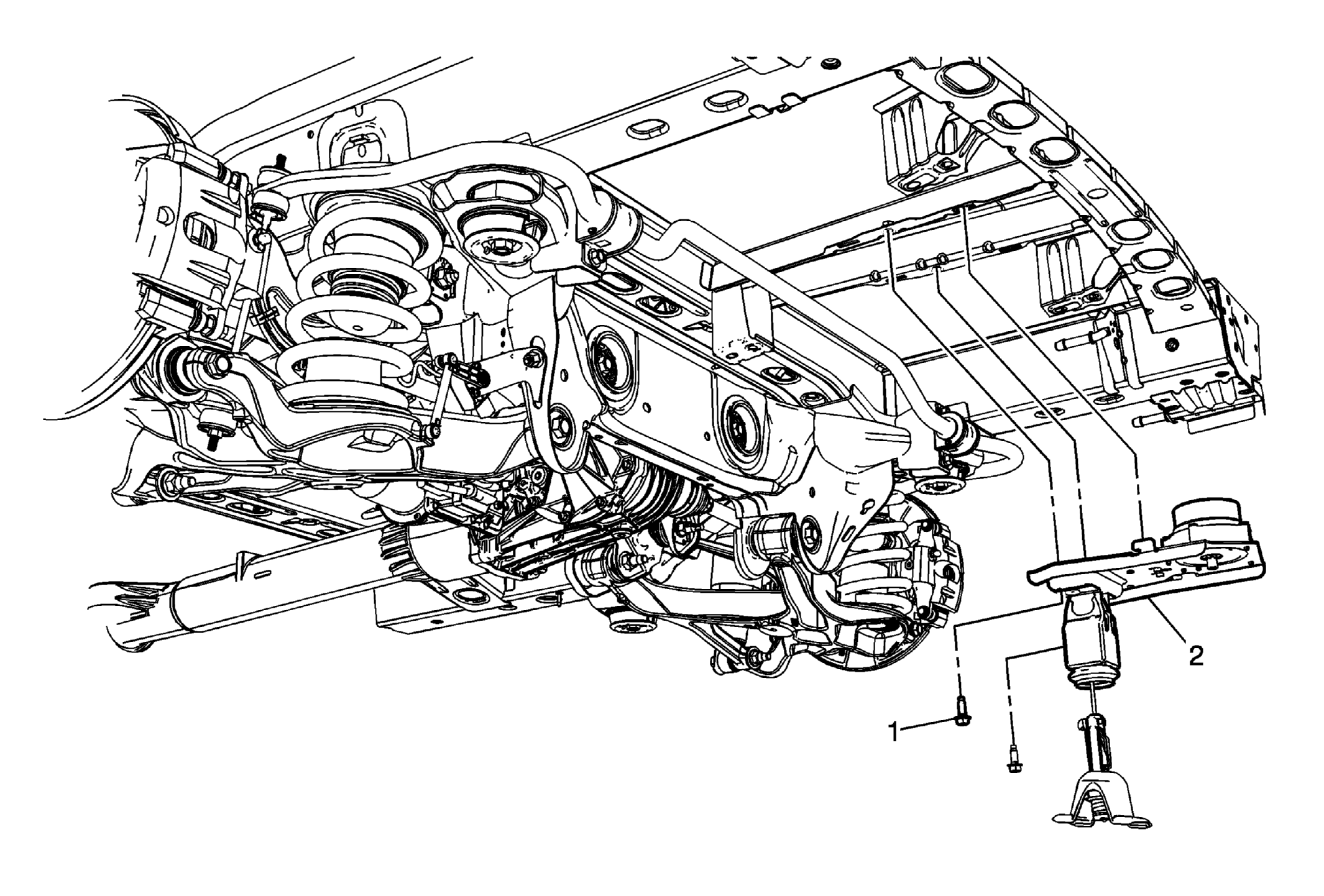

Fig 1: Identifying Spare Wheel Hoist

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the tire and wheel from the spare tire hoist. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Spare Tire Hoist Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
2	Spare Tire Hoist

Callout

Component Name

Preliminary Procedure

Remove the tire and wheel from the spare tire hoist.
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Spare Tire Hoist Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
25 N.m (18 lb ft)

Spare Tire Hoist
