Installation Procedure
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

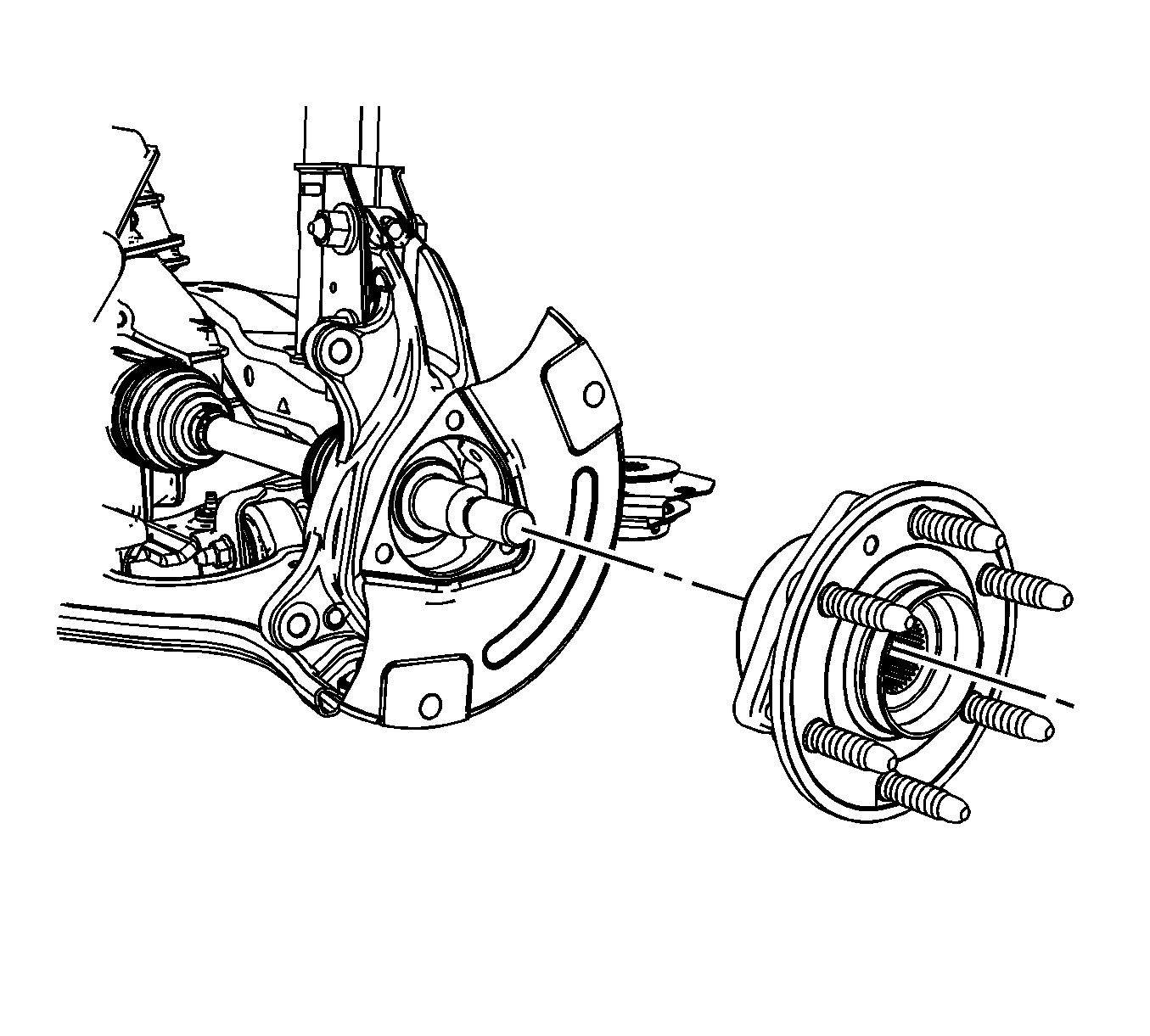

- Position the wheel bearing and hub assembly in the knuckle.
- Using an approved solvent, clean the old threadlocker from the threads of the wheel bearing hub and the bolts.
- Apply the high-temperature, high- strength threarlocker to 2/3 of the threads of the wheel bearing and the bolts.

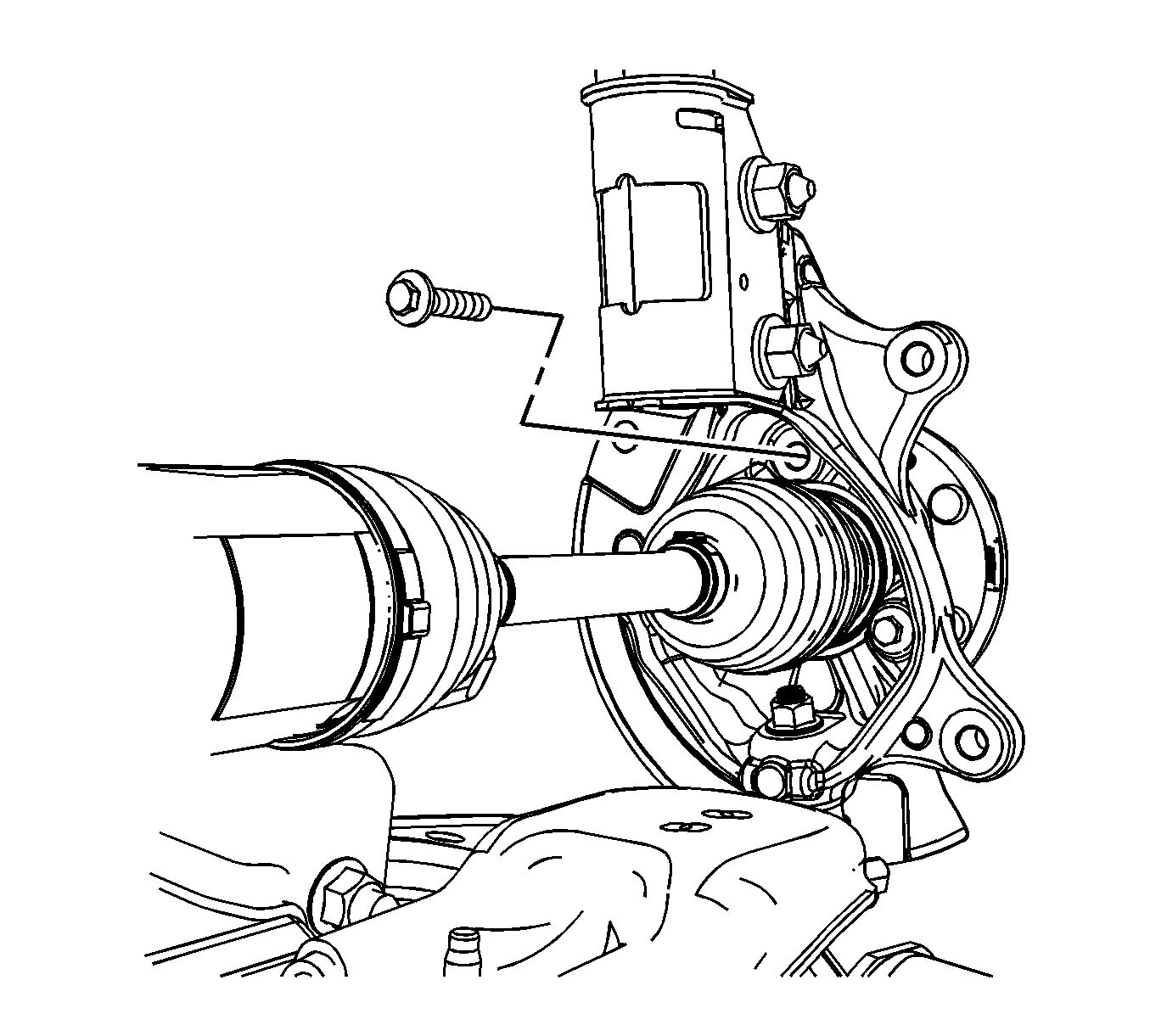

- Install the retaining bolts for the wheel bearing and hub.
Tighten
Tighten the bolts to 120 N.m (89 lb ft).
- Install the front brake rotor. Refer to Front Brake Rotor Replacement .
- Install the wheel drive shaft retaining nut and washer. Refer to Front Wheel Drive Shaft Replacement .
- Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
- Remove the support and lower the vehicle.
NOTE:
Ensure that there are no gaps in the threadlocker and allow to dry approximately 10 minutes before installing the wheel bearing bolts.
CAUTION:
Refer to Fastener Caution .
