Control Valve Channel Plate- Upper Body Spacer Plate Side
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

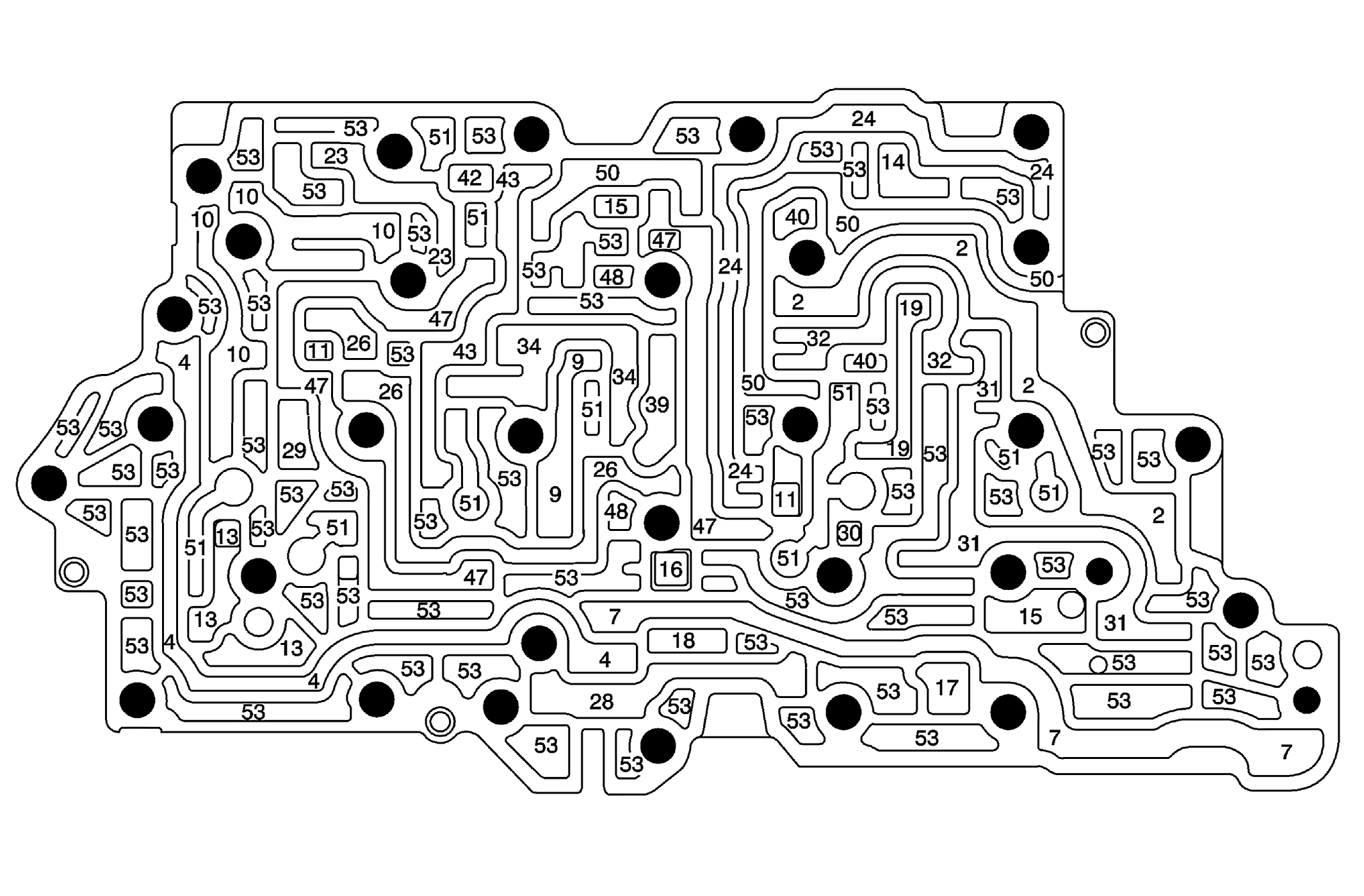

| Callout | Component Name |
|---|---|
| 2 | Line |
| 4 | Converter Feed |
| 7 | Cooler Feed |
| 9 | Regulated Apply |
| 10 | Compensator Feed |
| 11 | Actuator Feed Limit |
| 13 | PCS Line |
| 14 | PCS R1/456 Clutch |
| 15 | Solenoid 1 |
| 16 | Solenoid 2 |
| 17 | CSV2 Enable |
| 18 | CSV3 Enable |
| 19 | R1/456 Clutch Feed |
| 23 | PCS 35 Reverse Clutch |
| 24 | Reverse |
| 26 | 35 Reverse Supply |
| 28 | 35 Reverse Clutch |
| 29 | 35 Reverse Clutch Feedback |
| 30 | PCS 1234 Clutch |
| 31 | Drive |
| 32 | Drive Brake |
| 34 | 26 Clutch/1234 Clutch Feed |
| 39 | Drive 1-6 |
| 40 | Latch Feed |
| 42 | PCS 26 Clutch |
| 43 | 26 Clutch |
| 47 | 456 Clutch |
| 48 | PCS TCC |
| 50 | Exhaust Backfill |
| 51 | Exhaust |
| 53 | Void |
