A/Trans Case Assembly- Torque Converter and Differential Housing Side

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

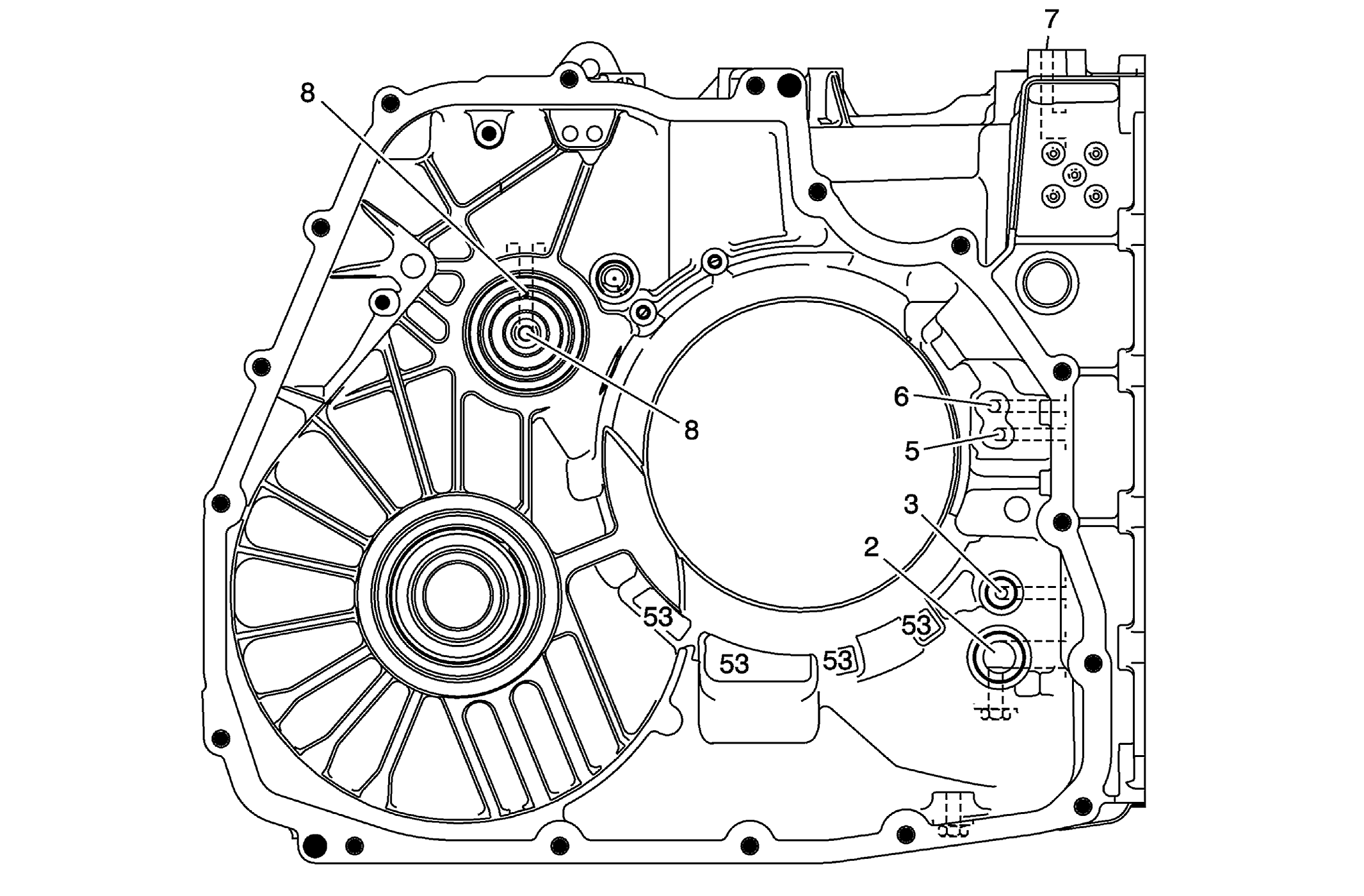

Fig 1: A/Trans Case Assembly - Torque Converter And Differential Housing Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
2	Line
3	Decrease
5	TCC Release
6	TCC Apply
7	Cooler Feed
8	Lube
53	Void
