Engine Rear Mount Bracket Replacement (Front Wheel Drive)

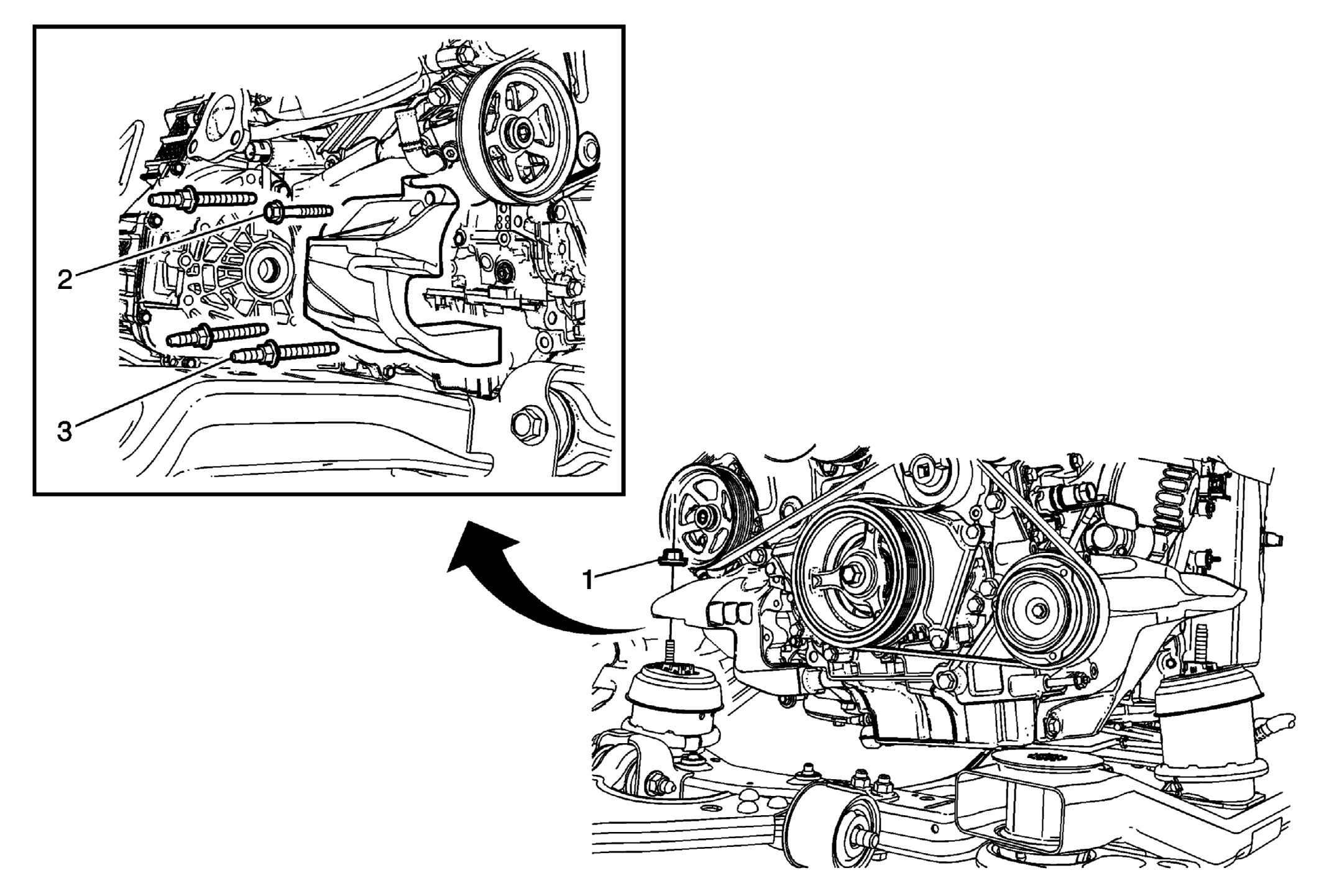

Fig 1: Identifying Engine Rear Mount Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures If equipped with FWD, remove the intermediate drive shaft. Refer to Front Wheel Drive Intermediate Shaft Replacement . Support the engine. Refer to Engine Support Fixture . Remove the exhaust flexible pipe. Refer to Exhaust Flexible Pipe Replacement .
1	Rear Engine Mount Upper Nut CAUTION: Refer to Fastener Caution Procedure Remove and discard engine mount nut. Apply threadlocker to the engine mount threads. Refer to Adhesives, Fluids, Lubricants, and Sealers . NOTE: The engine mount nuts must be replaced once removed. Allow adhesive on new engine mounts nuts to cure for 24 hours after replacement. Use engine support fixture to raise engine. Tighten 60 N.m (44 lb ft)
2	Rear Engine Mount Bracket Bolt Tighten 22 N.m (16 lb ft)
3	Rear Engine Mount Bracket Bolt Tighten 58 N.m (43 lb ft)
