Engine Front Mount Replacement

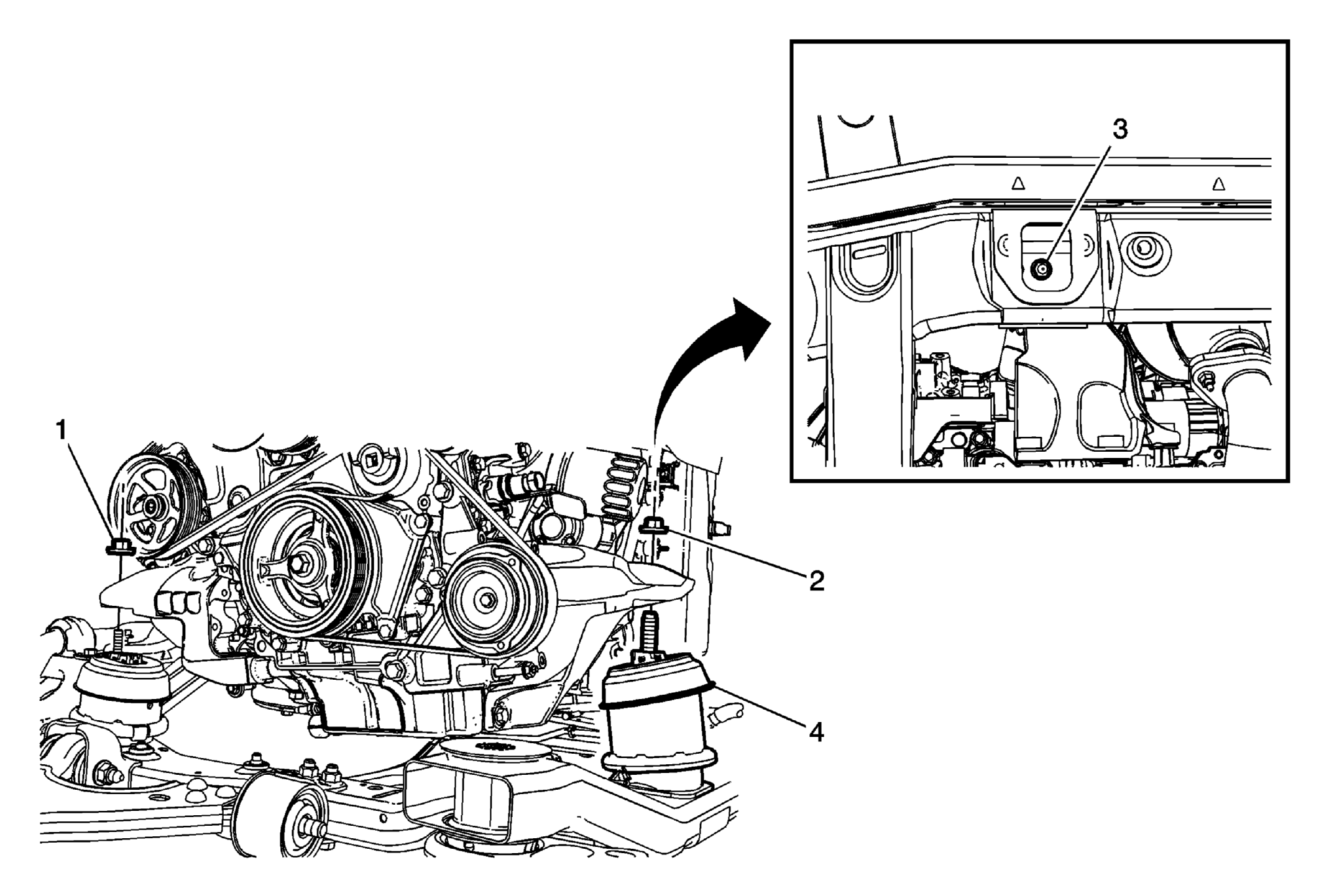

Fig 1: Identifying Engine Front Mount Assembly
GM2063581Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Support the engine. Refer to Engine Support Fixture .
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Rear Upper Engine Mount Nut
CAUTION:

Refer to Fastener Caution

Procedure

  1. Remove and discard the rear engine mount nut.
  2. Apply threadlocker to the engine mount threads. Refer to Adhesives, Fluids, Lubricants, and Sealers .
NOTE:
  • The engine mount nuts must be replaced once removed. Allow adhesive on new engine mounts nuts to cure for 24 hours after replacement.
  • Use engine support fixture to raise engine.

Tighten
60 N.m (44 lb ft)
2 Front Upper Engine Mount Nut

Procedure

  1. Remove and discard the front engine mount nut.
  2. Disconnect the active engine mount vacuum line, if equipped.
  3. Apply threadlocker to the engine mount threads. Refer to Adhesives, Fluids, Lubricants, and Sealers .
NOTE:
  • The engine mount nuts must be replaced once removed. Allow adhesive on new engine mounts nuts to cure for 24 hours after replacement.
  • Use engine support fixture to raise engine.

Tighten
90 N.m (66 lb ft)
3 Front Lower Engine Mount Nut

Procedure

  1. Remove and discard the lower front engine mount nut.
  2. Apply threadlocker to the engine mount threads. Refer to Adhesives, Fluids, Lubricants, and Sealers .

TIP:  The engine mount nuts must be replaced once removed. Allow adhesive on new engine mounts nuts to cure for 24 hours after replacement.
Tighten
75 N.m (55 lb ft)
4 Engine Mount
