Starting and Charging Schematics

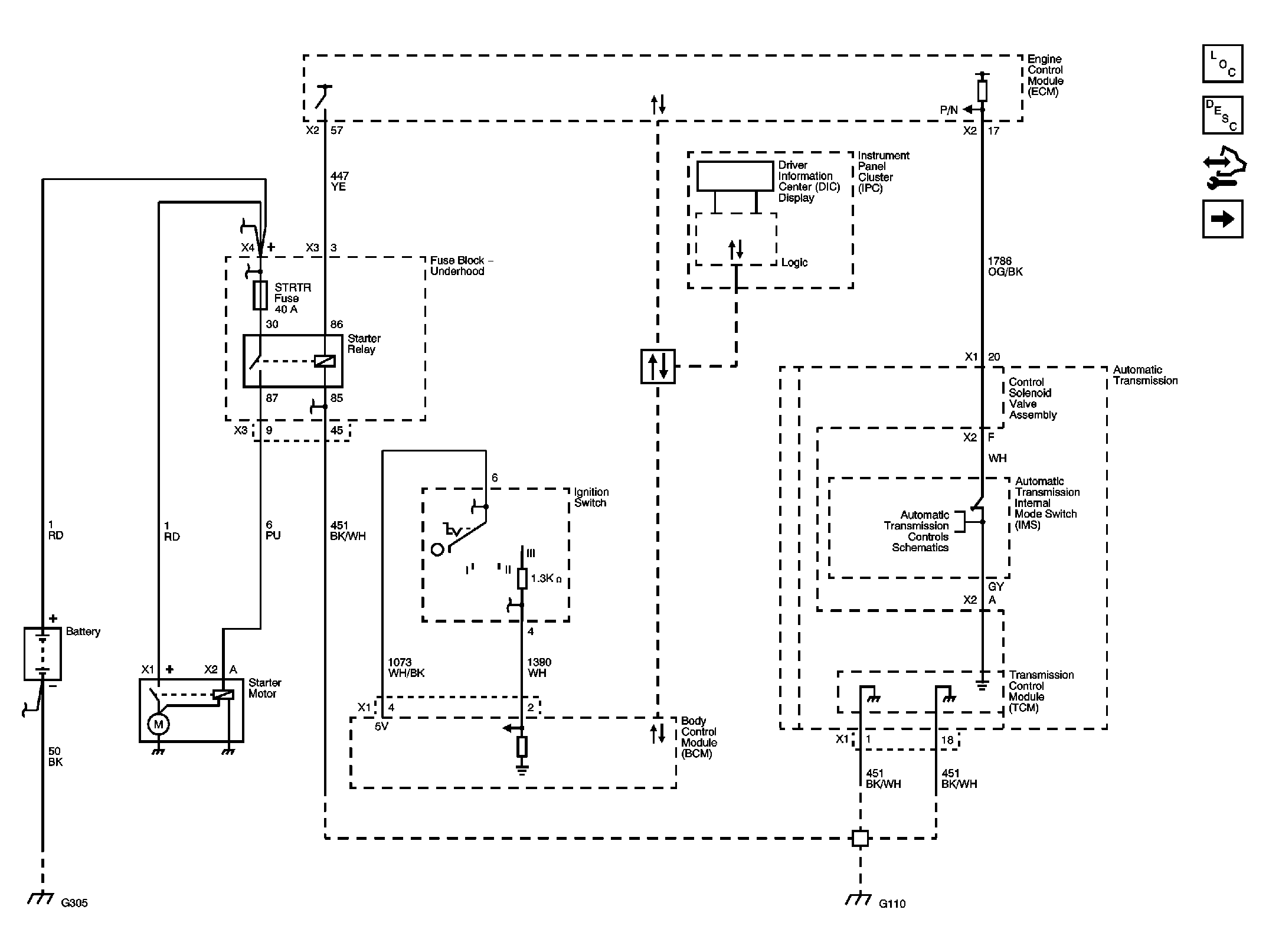

Fig 1: Starting Circuit Schematic

GM2248153

Courtesy of GENERAL MOTORS CORP.

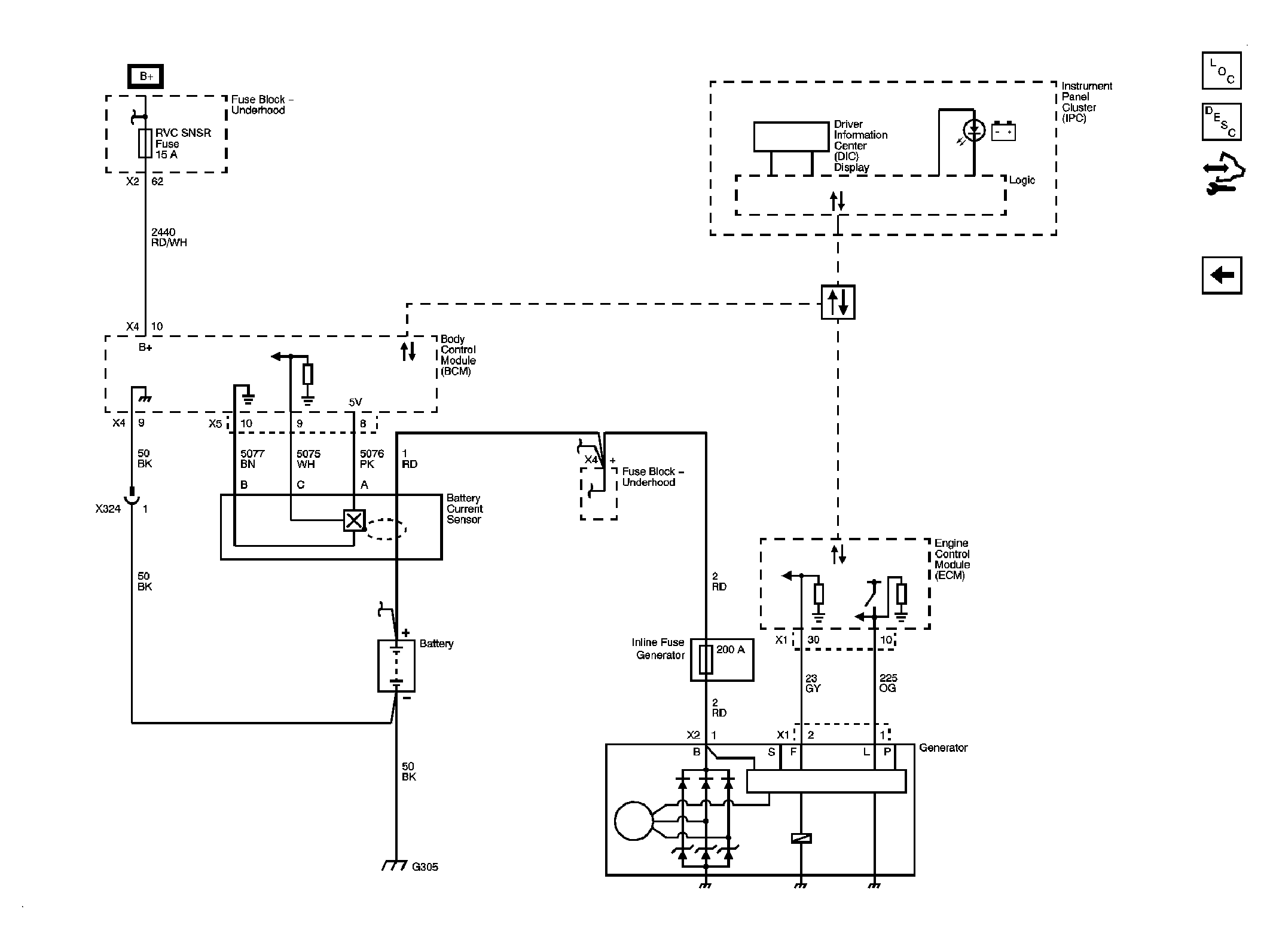

Fig 2: Charging Circuit Schematic

GM2248156

Courtesy of GENERAL MOTORS CORP.
