Instrument Cluster Schematics

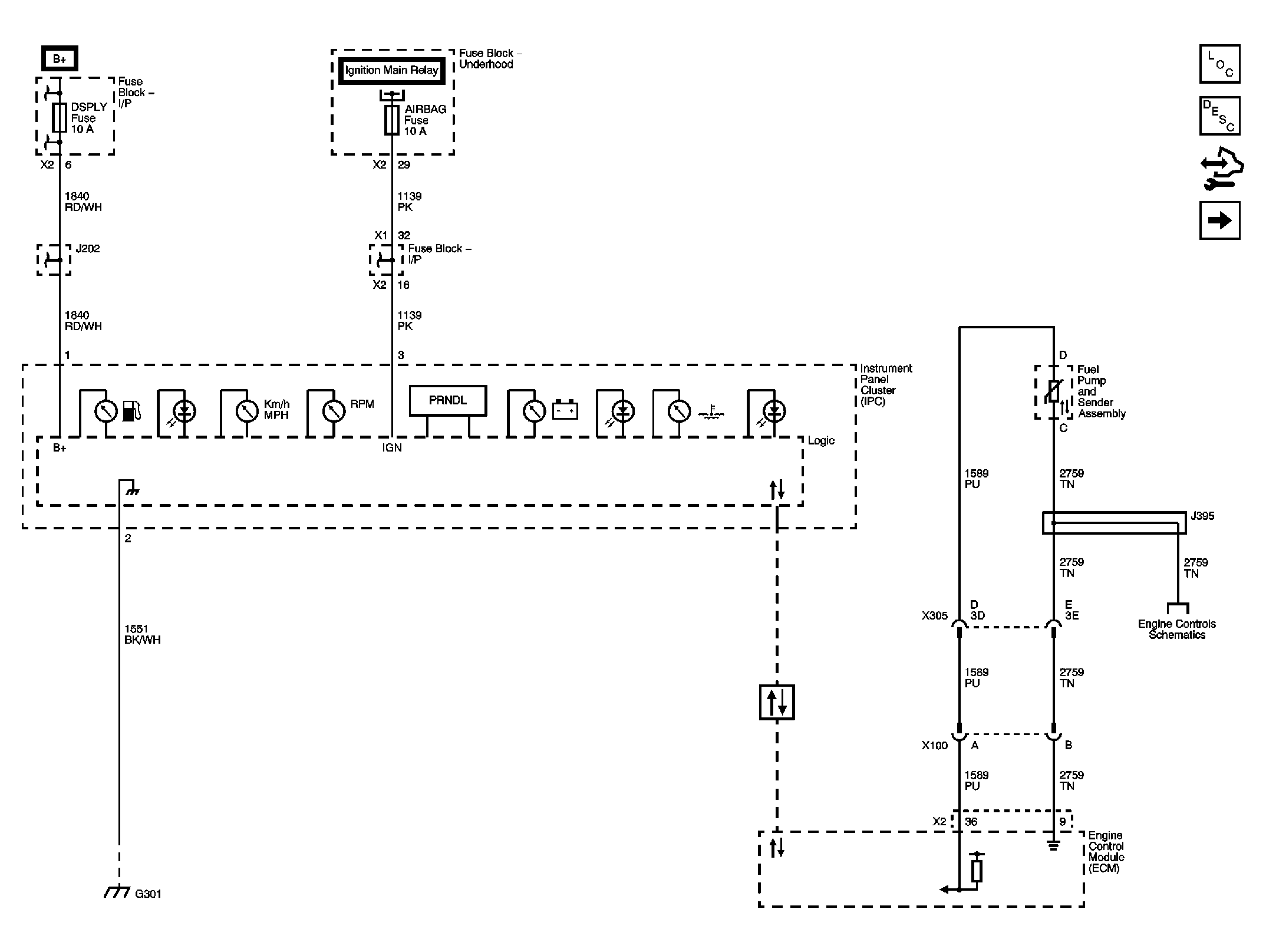

Fig 1: Gages, Ground & Power Circuit Schematic
GM2248097Courtesy of GENERAL MOTORS CORP.

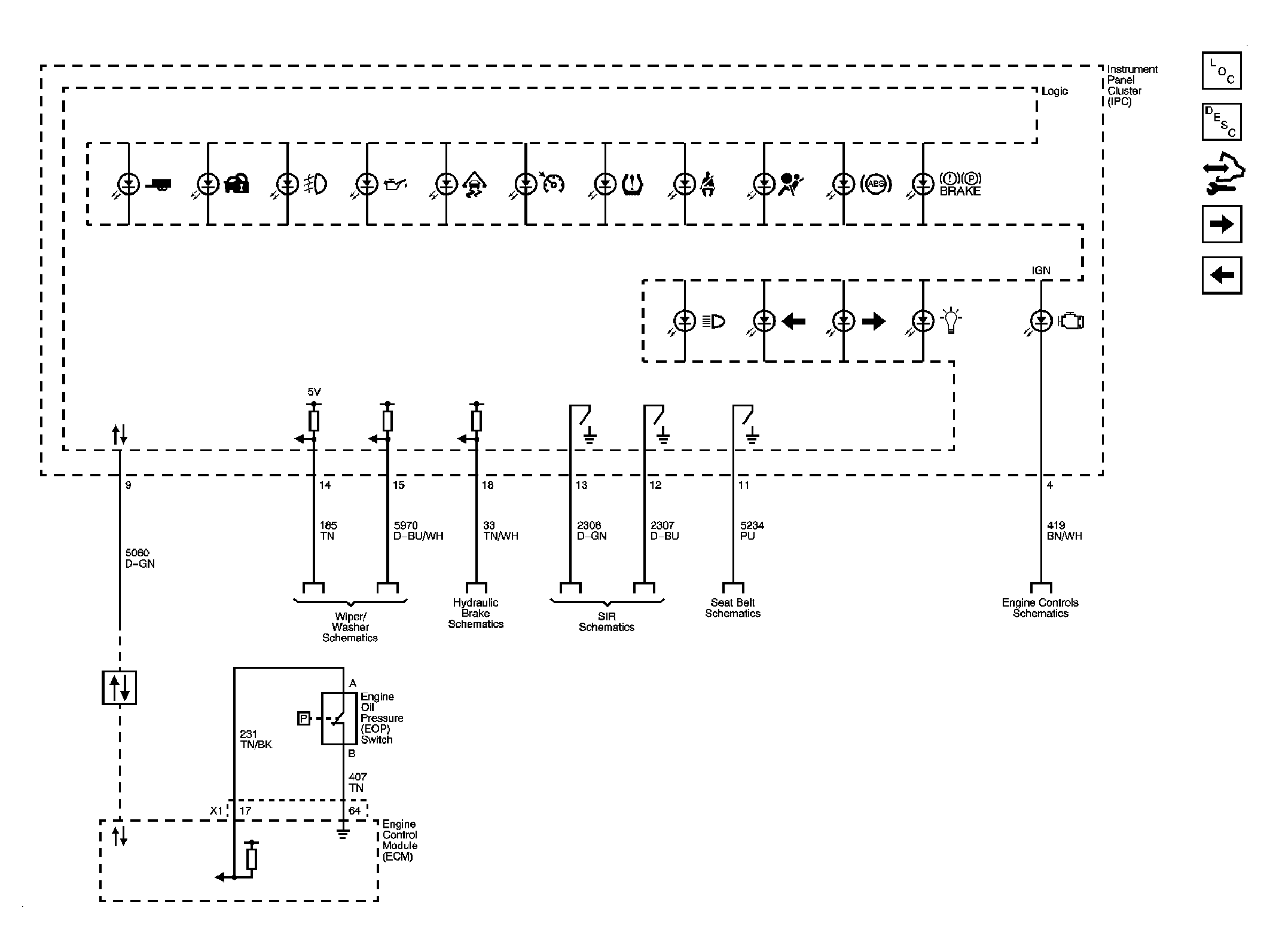

Fig 2: Indicators & Lighting Circuit Schematic
GM2248100Courtesy of GENERAL MOTORS CORP.

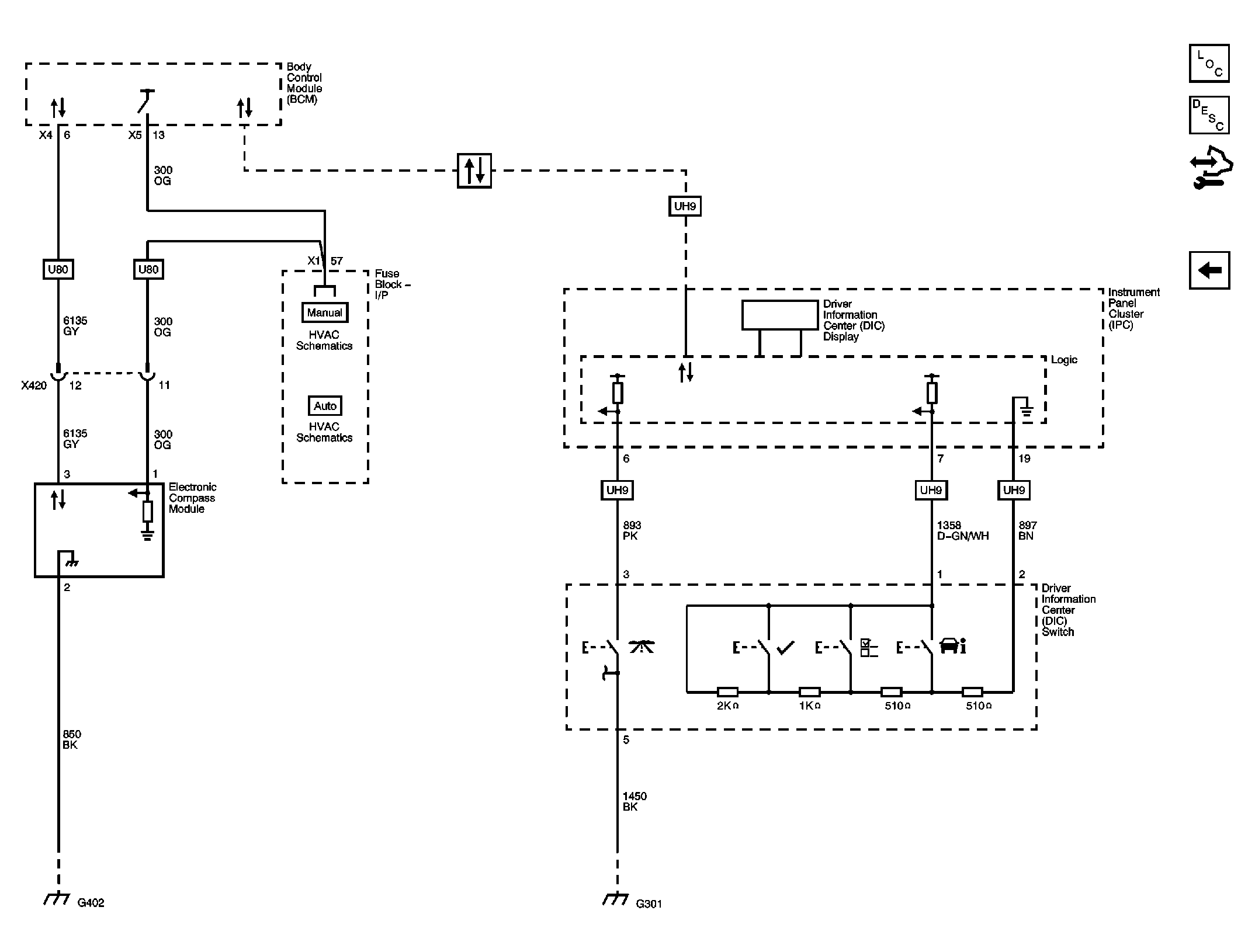

Fig 3: DIC with UH9 and U80 Circuit Schematic
GM2248104Courtesy of GENERAL MOTORS CORP.
