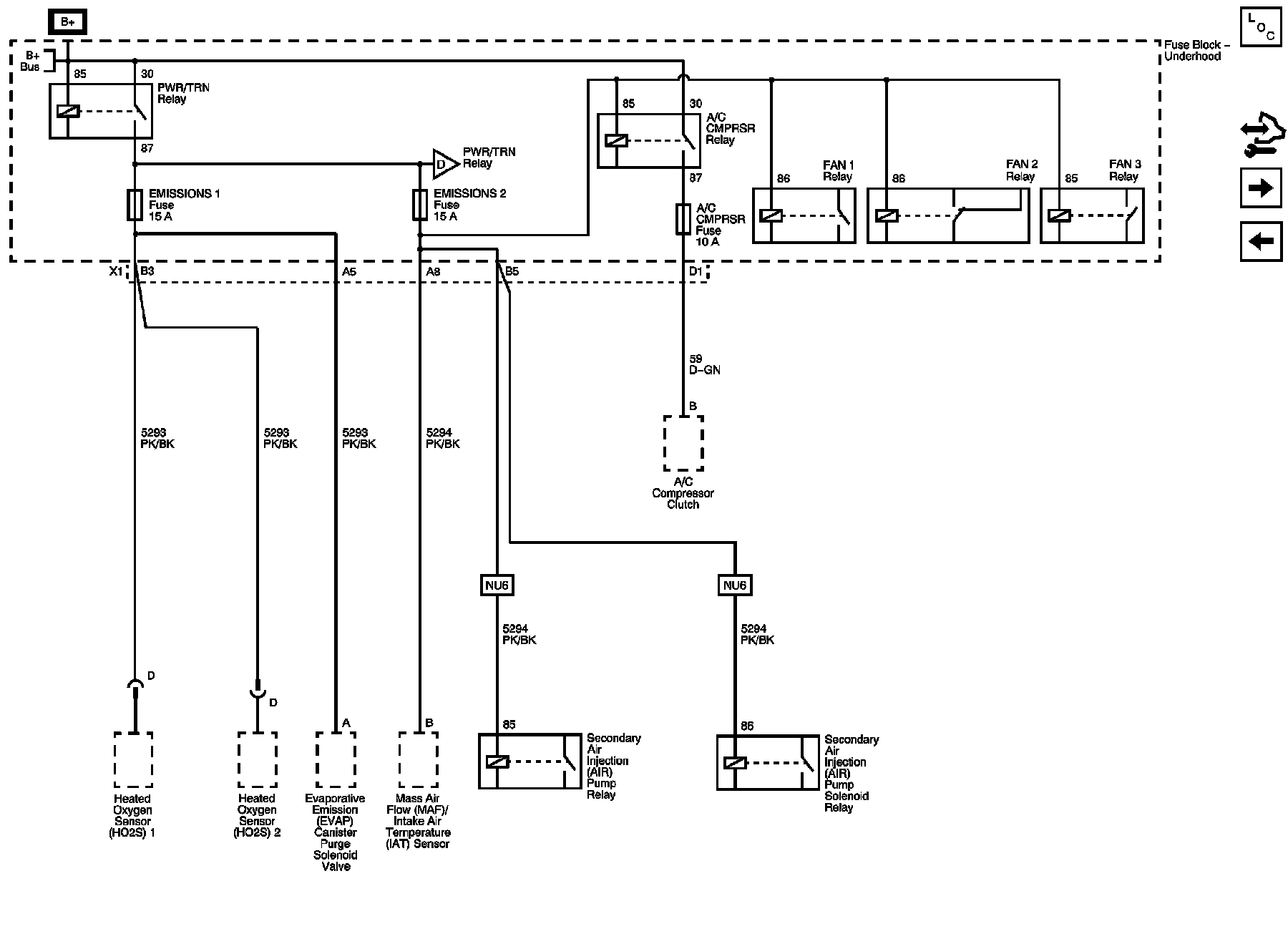

Home >> Chevrolet >> 2010 >> Impala V6-3.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Schematics >> Power Distribution Schematic 13
