Rear of Vehicle Harness Routing

Harness Routing Views

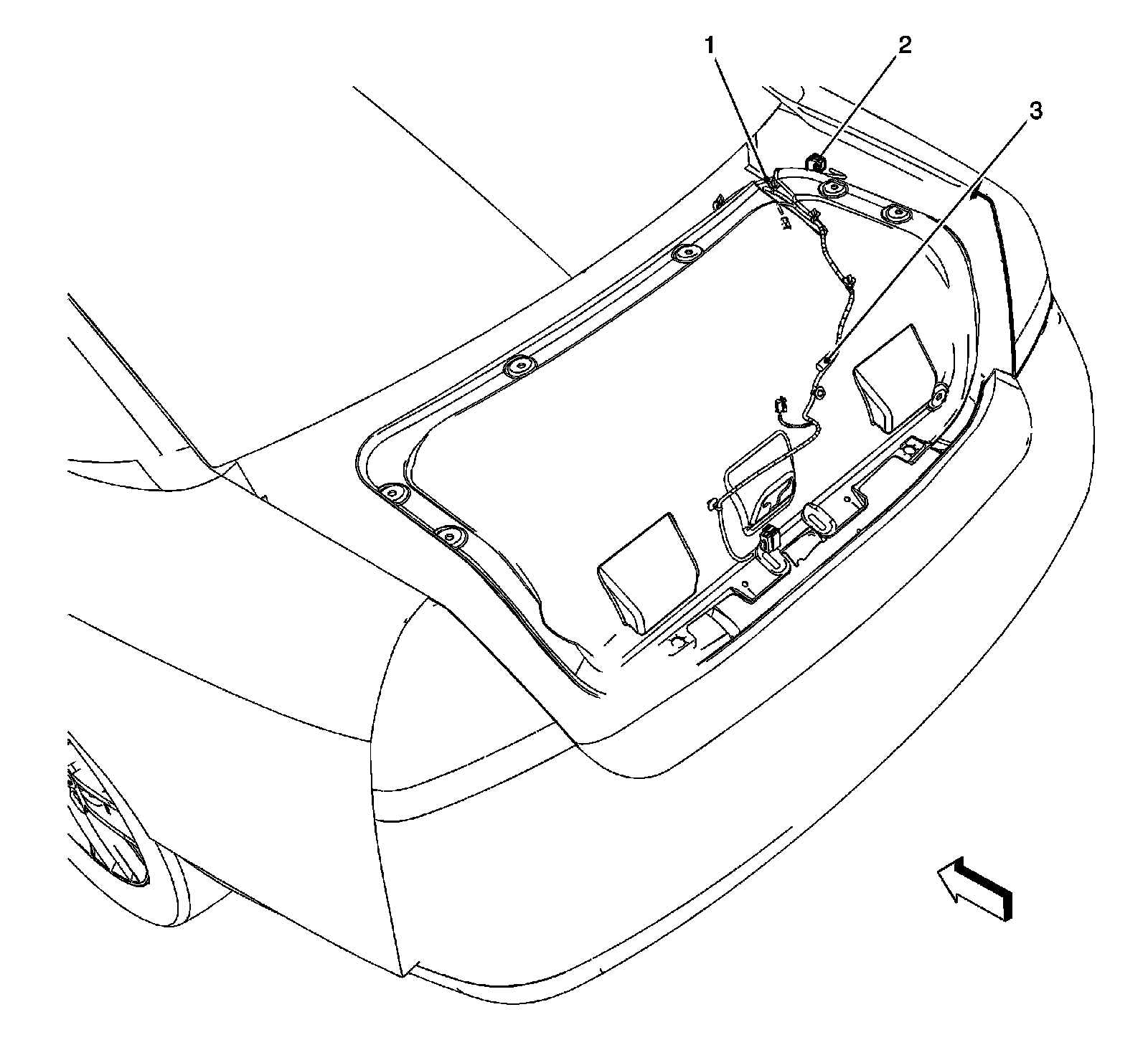

Rear Compartment Lid Harness Routing

1 - J902
2 - X430
3 - J901
