Left Rear Door Harness Routing

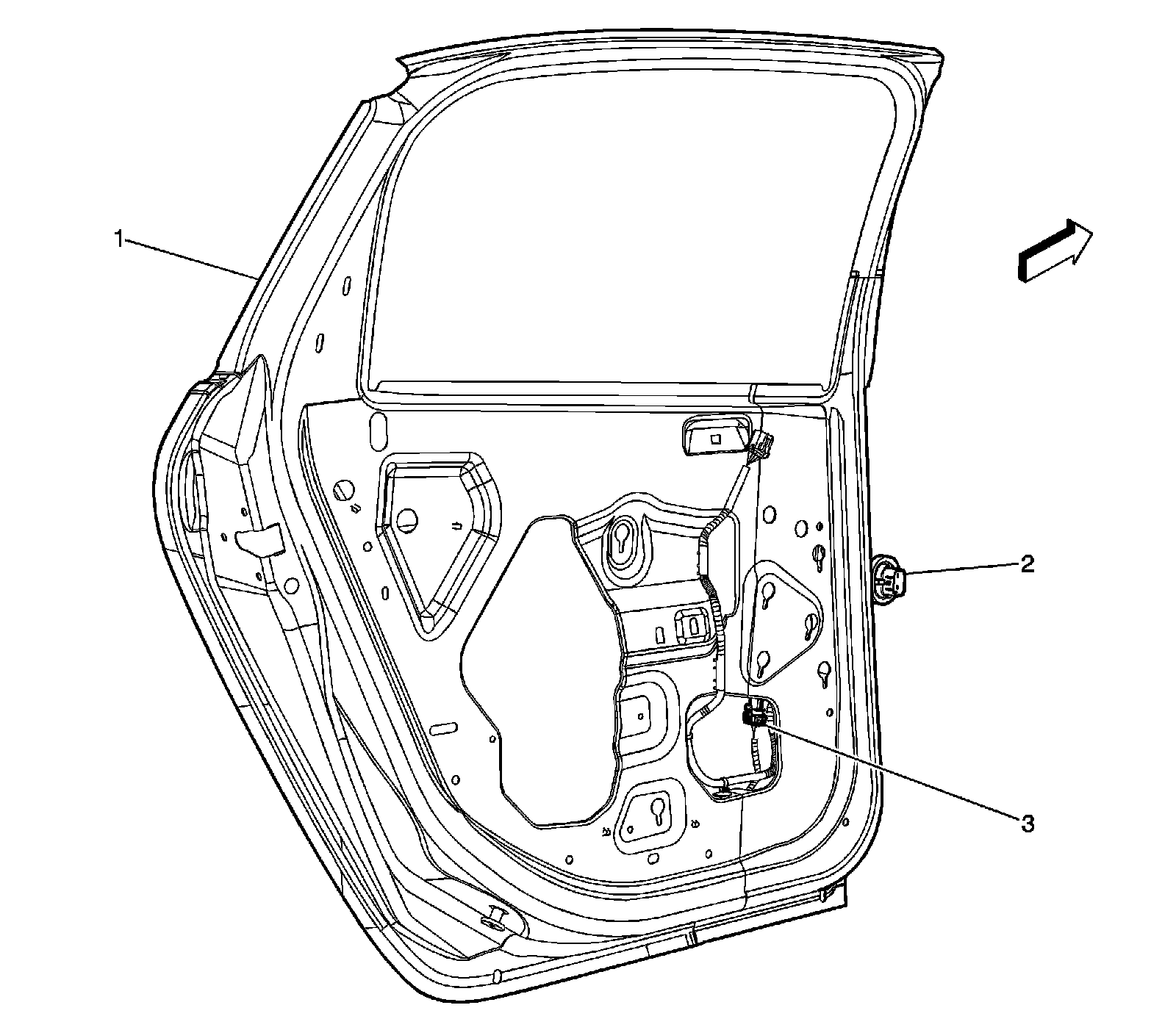

Harness Routing Views

Left Rear Door Harness Routing




1 - Door Frame
2 - X700
3 - Window Motor - Left Rear Connector
