Air Injection Pump

Component Connector End Views

Secondary Air Injection (AIR) Pump (NU6)

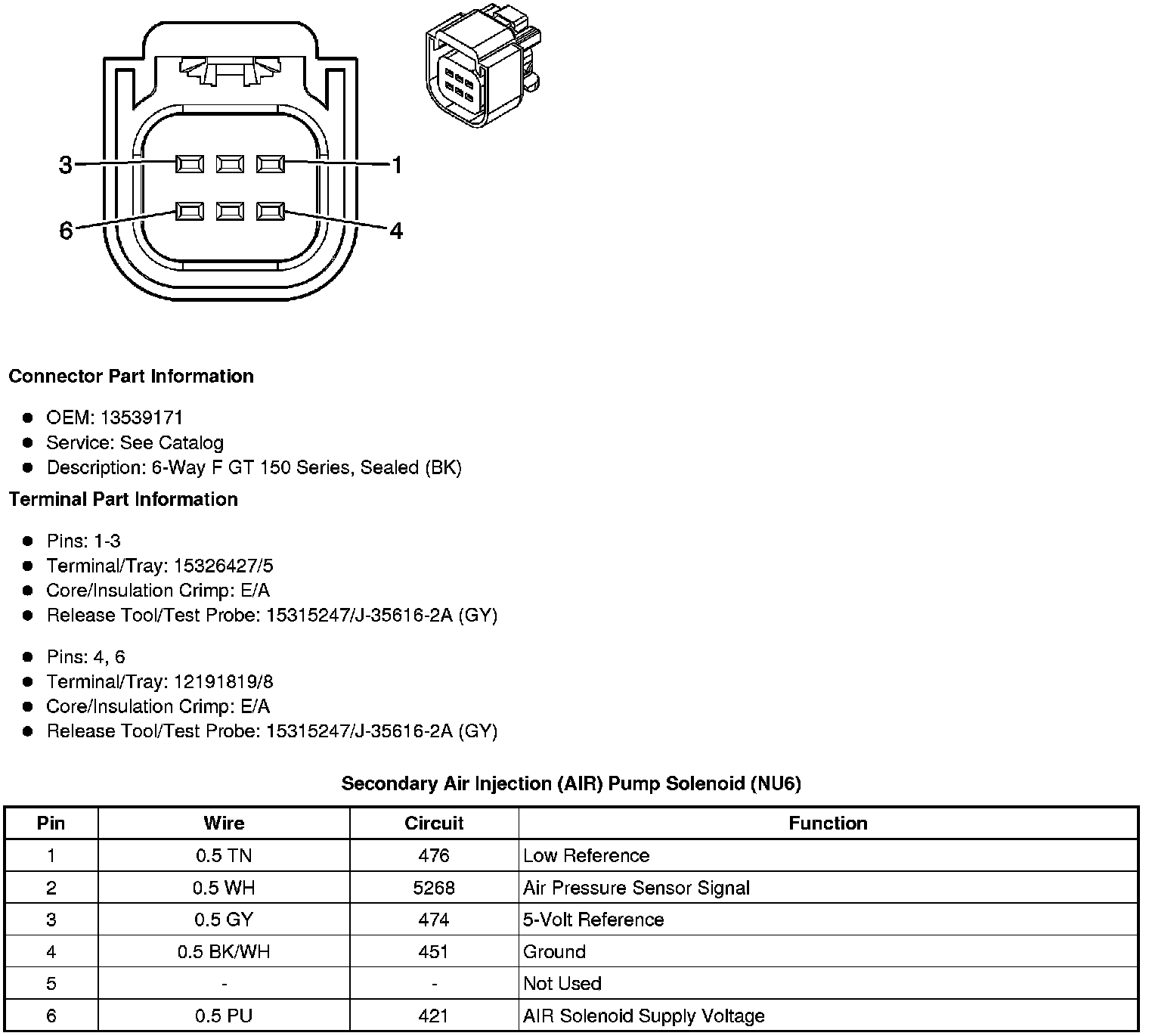

Secondary Air Injection (AIR) Pump Solenoid (NU6)
