Connector Views




Component Connector End Views

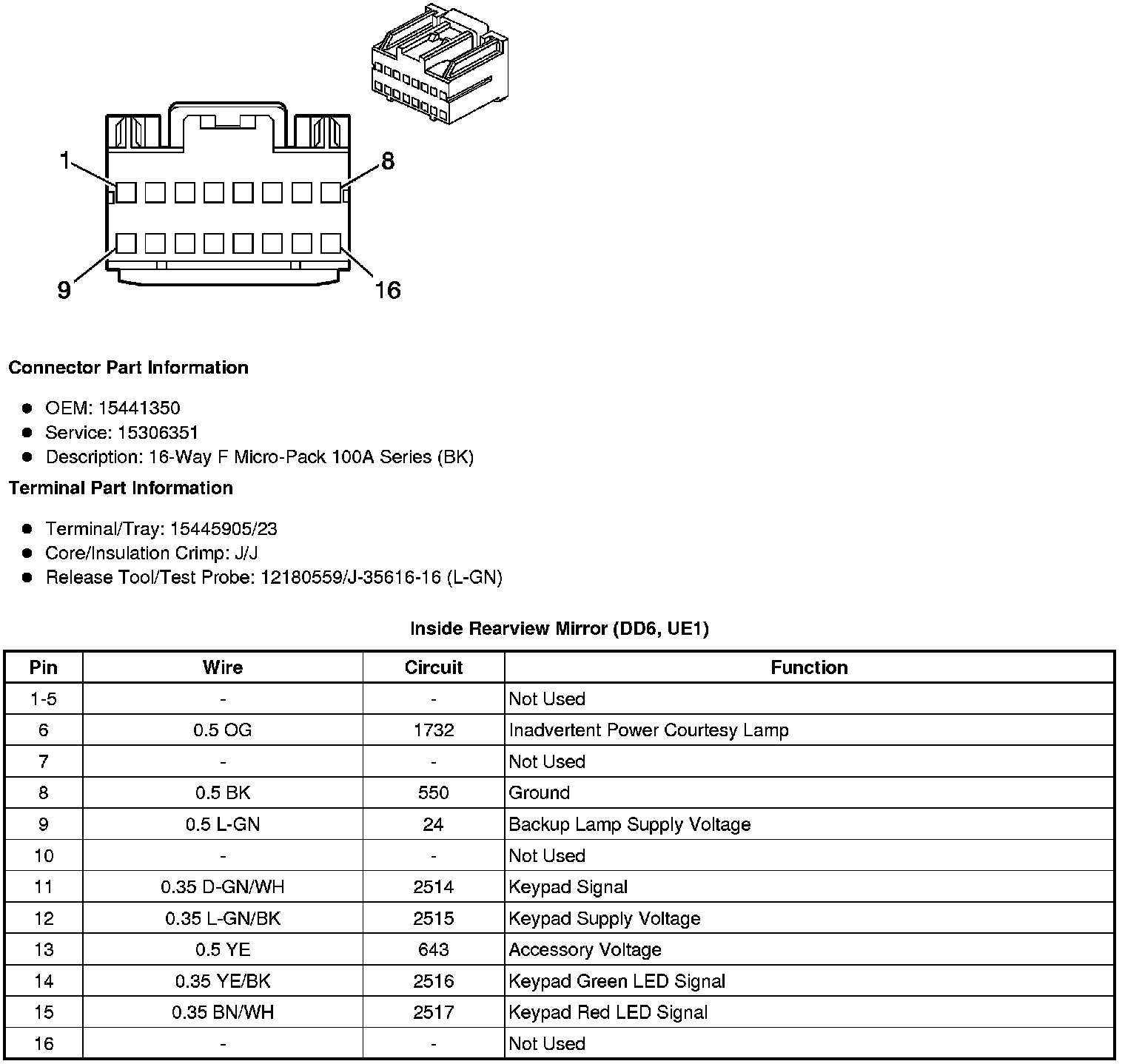

Inside Rearview Mirror (DD6, UE1)





Inside Rearview Mirror (without DD6 or UE1)

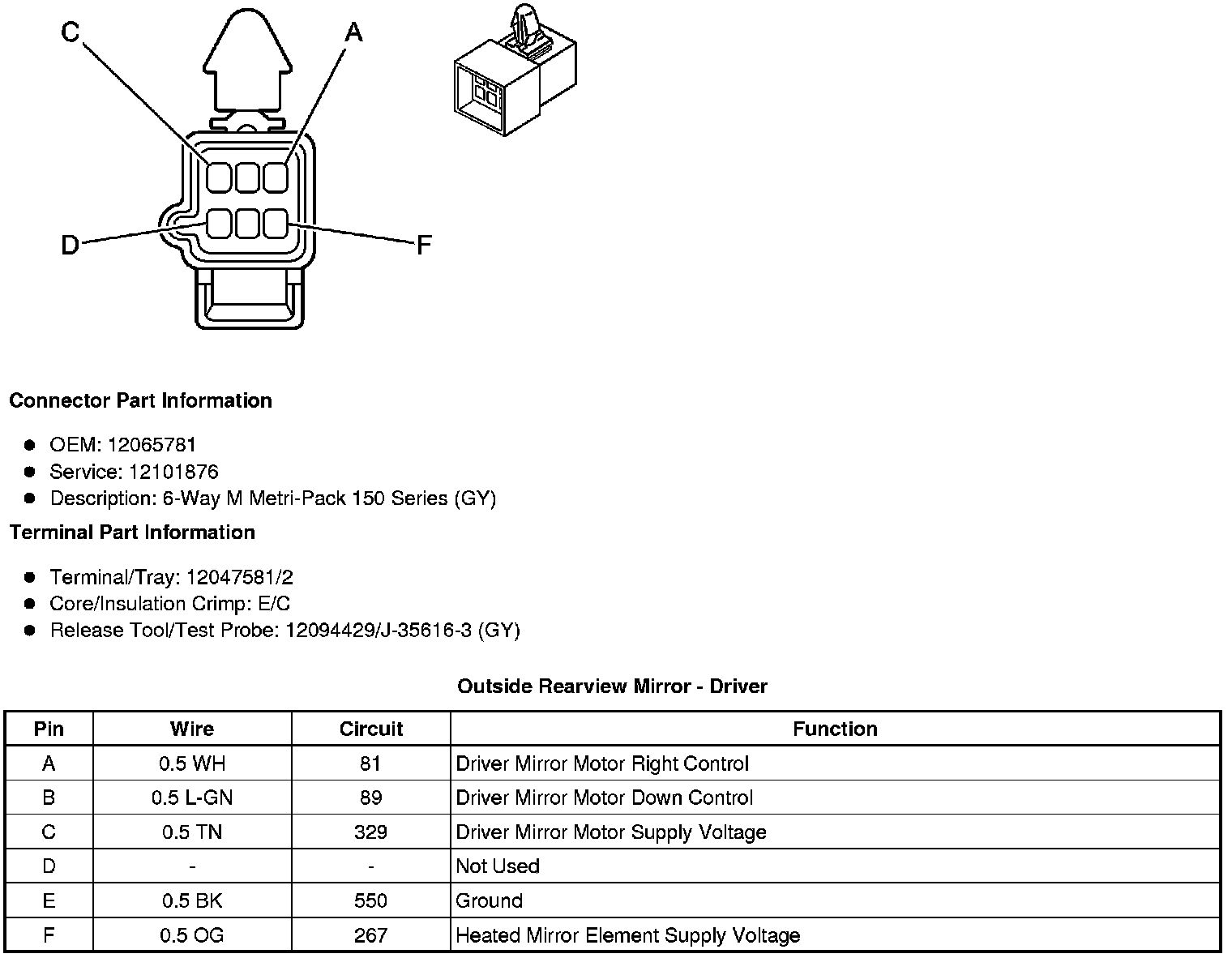

Outside Rearview Mirror - Driver

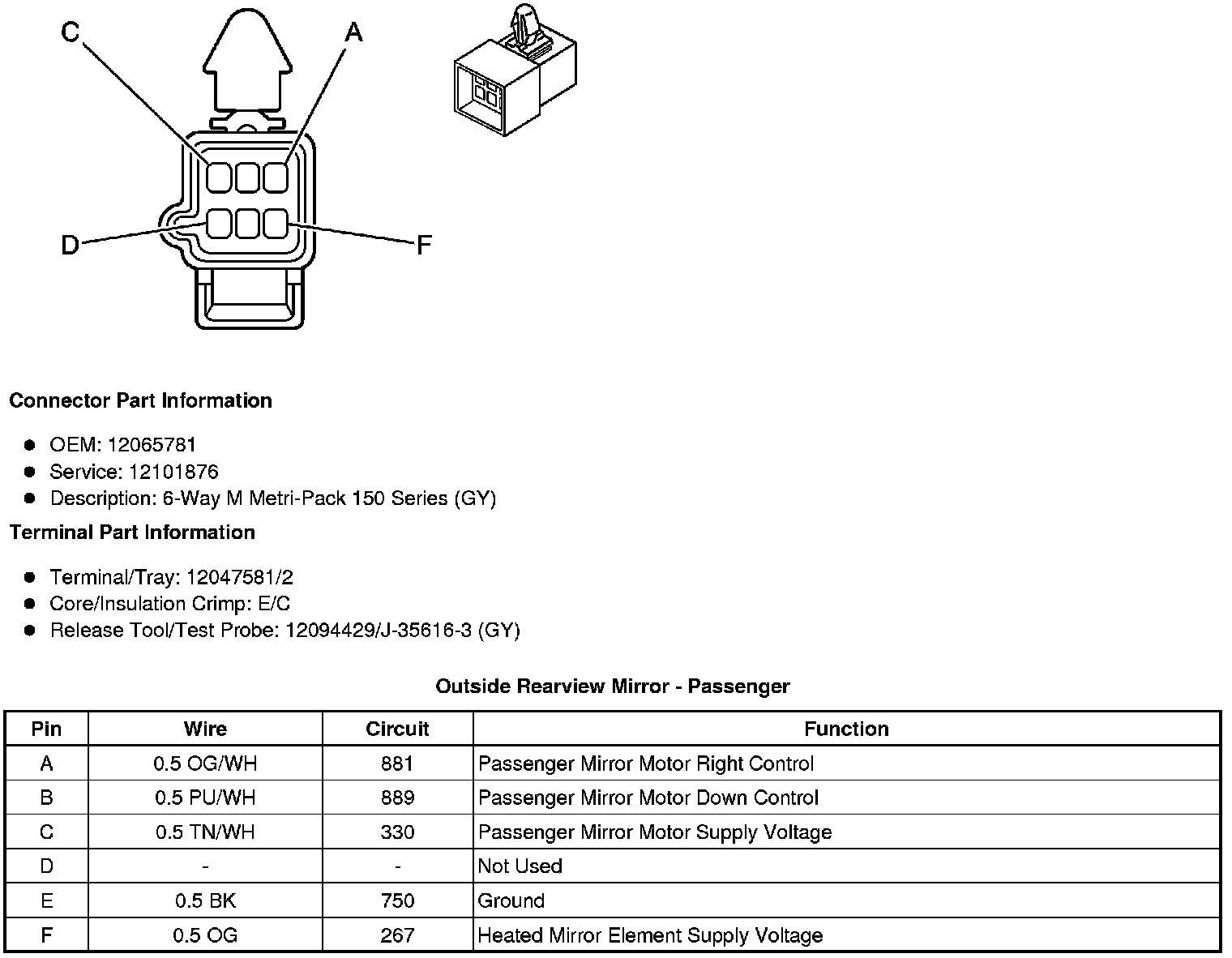

Outside Rearview Mirror - Passenger
