Door Locks: Diagrams




Component Connector End Views

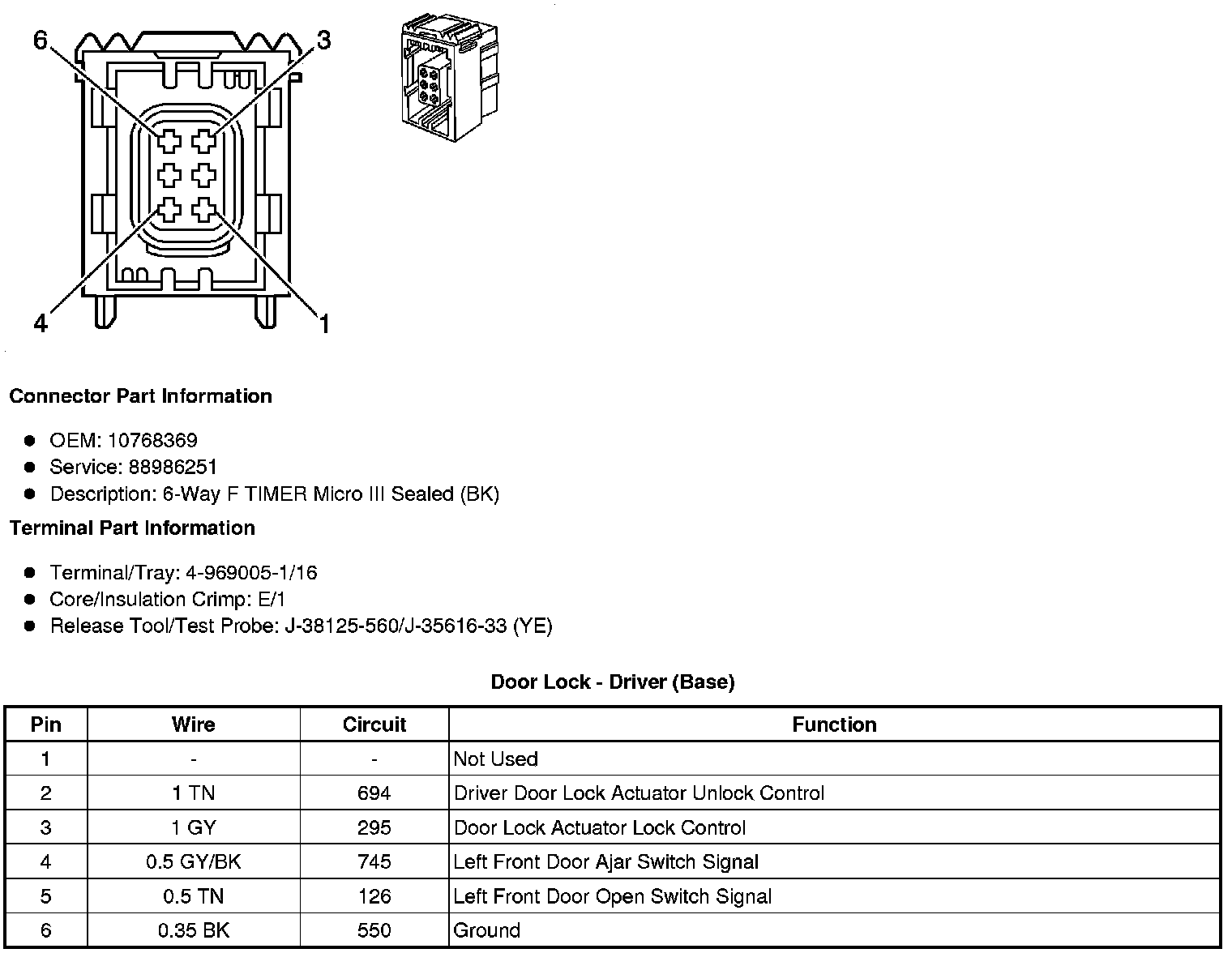

Door Lock - Driver (Base)

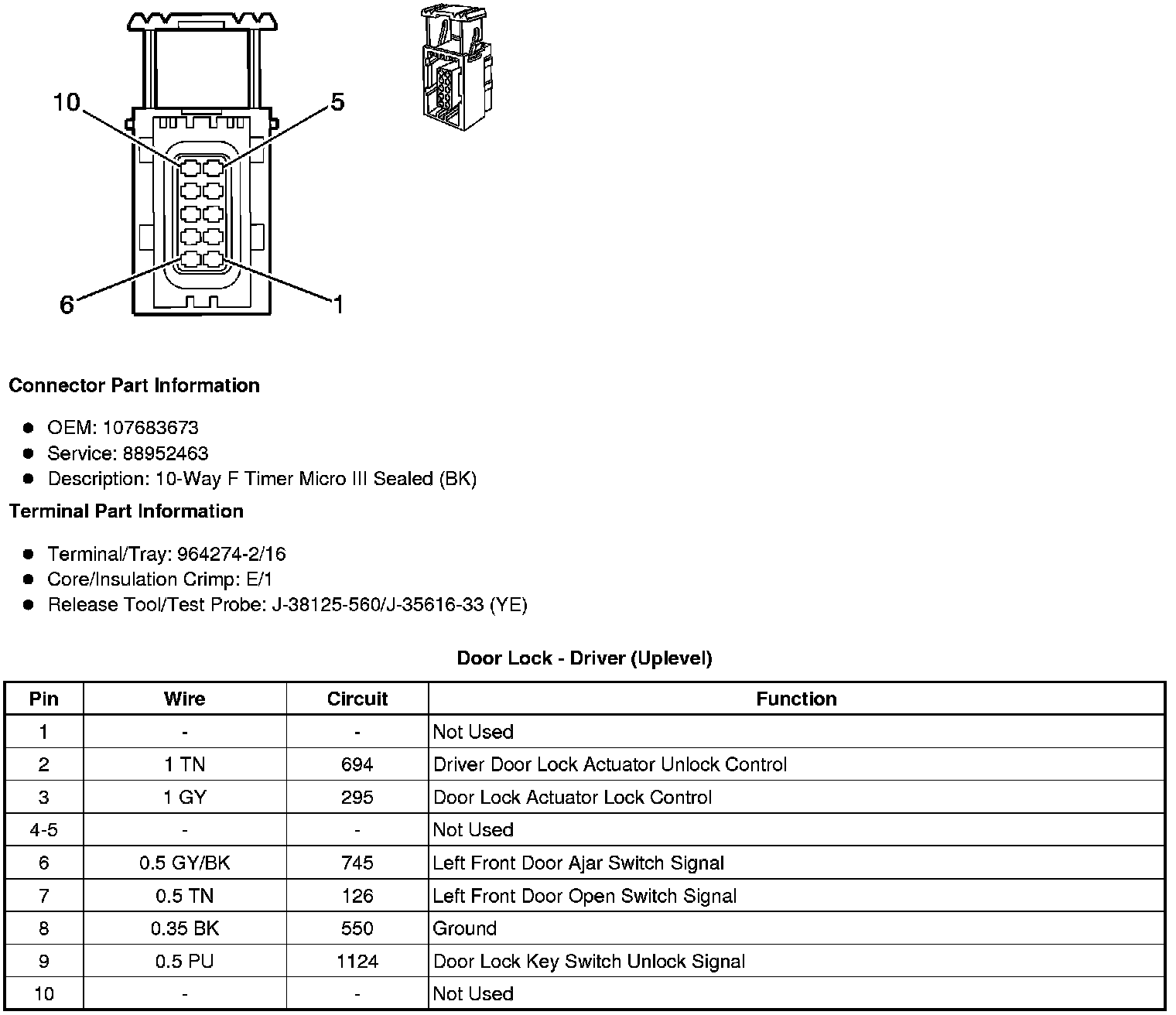

Door Lock - Driver (Uplevel)

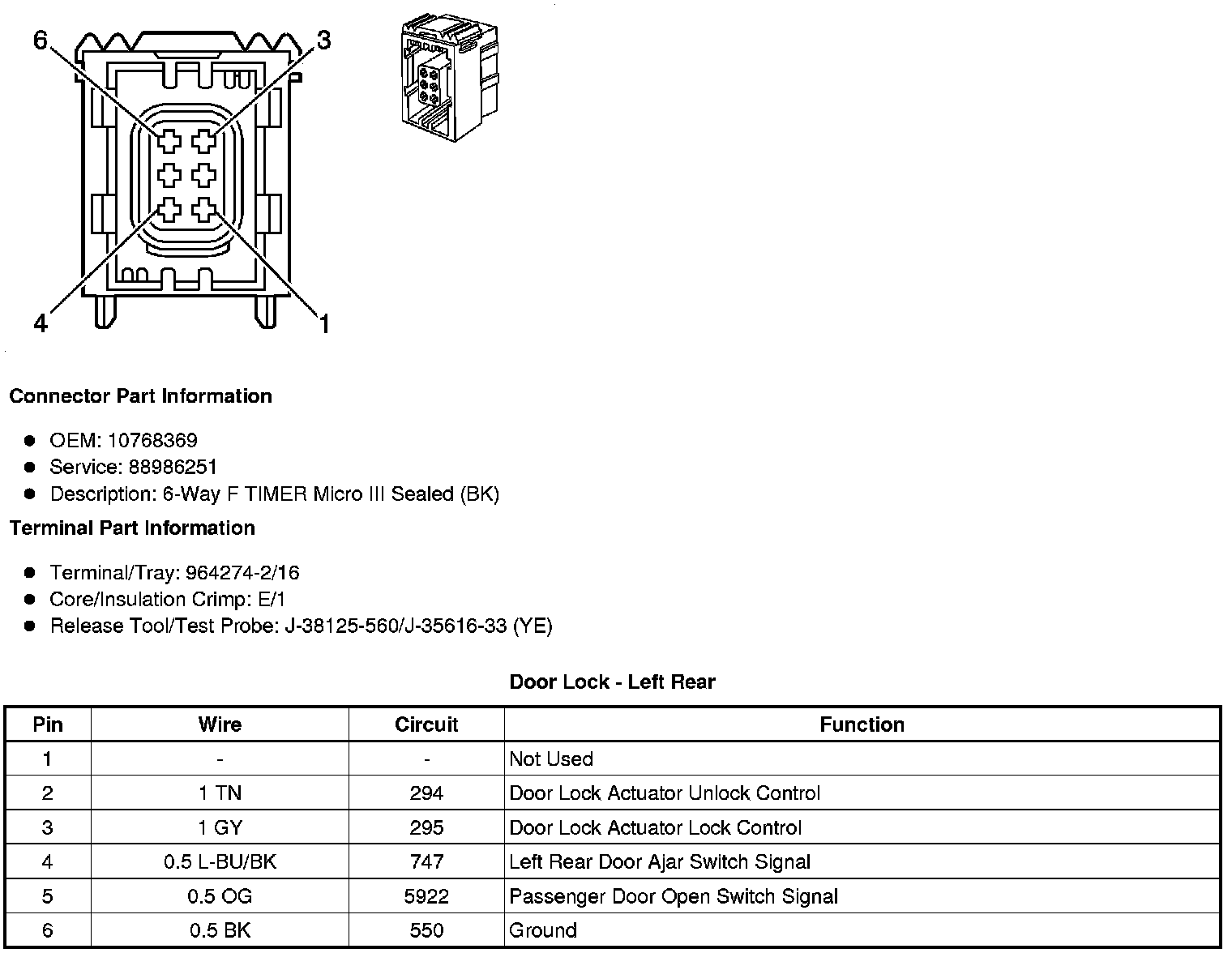

Door Lock - Left Rear

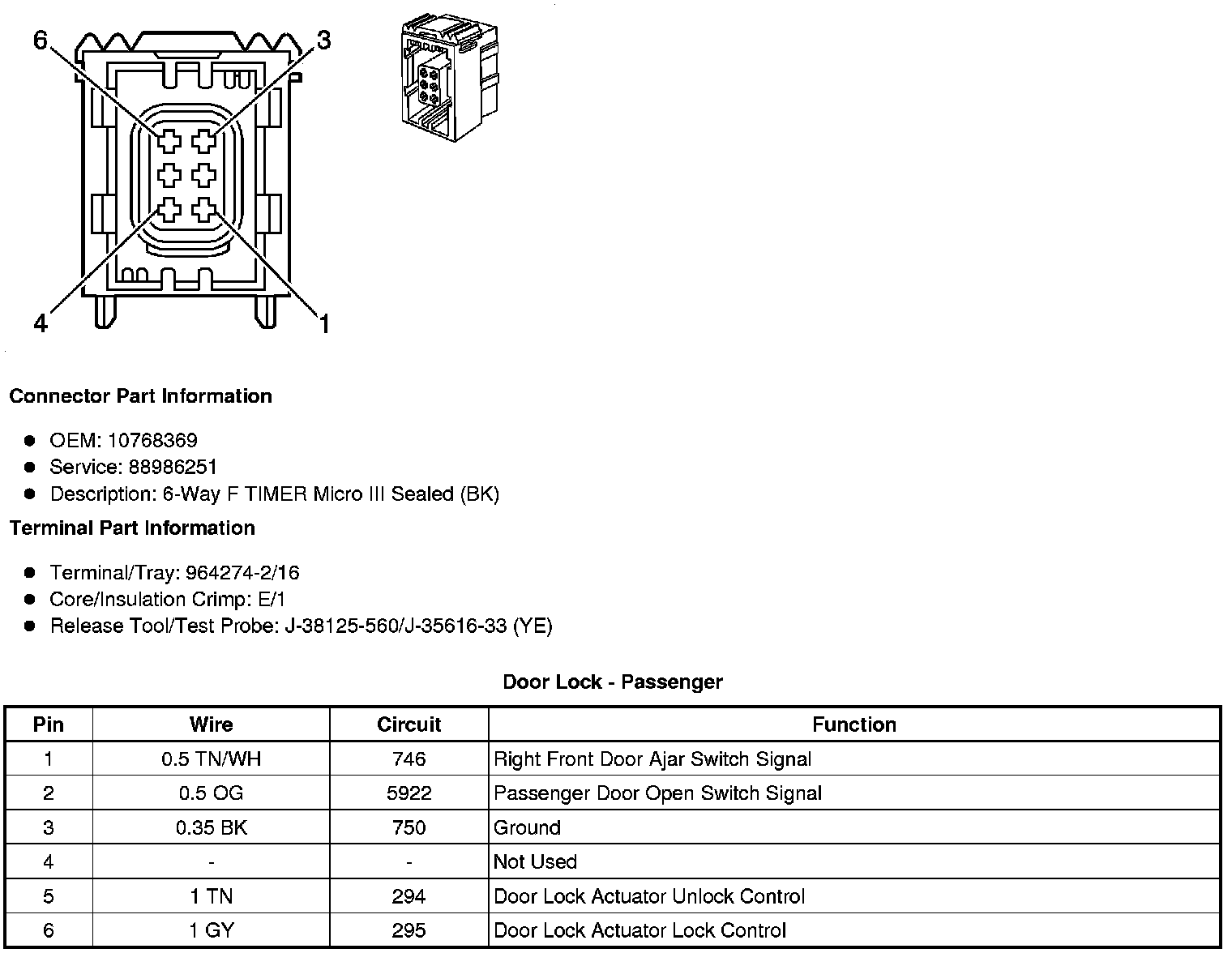

Door Lock - Passenger

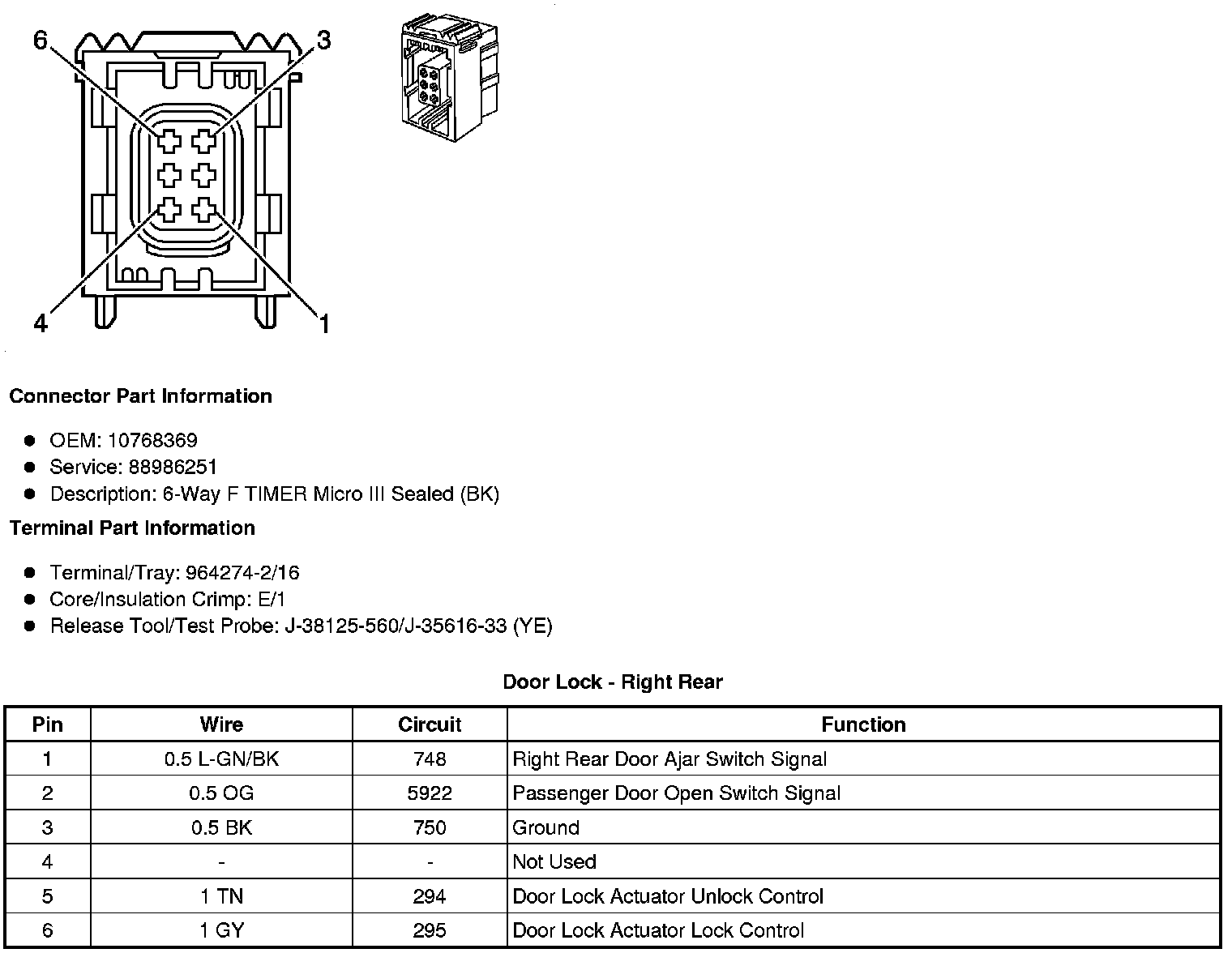

Door Lock - Right Rear
