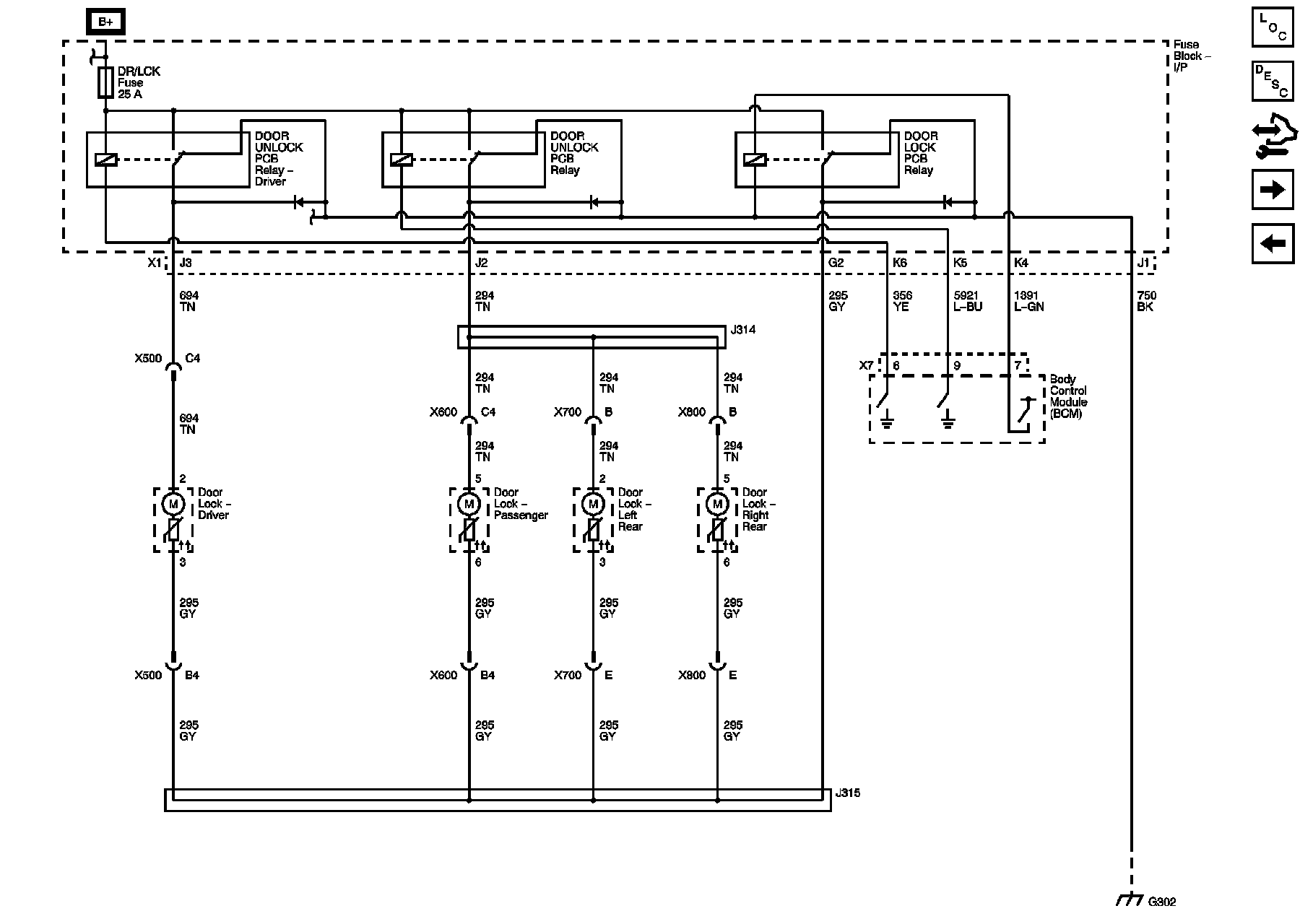

Door Lock/Indicator Schematics
Door Lock/Indicator Schematics
Door Lock Switches
Door Lock Actuators
Door Ajar Indicators
