Radio/Navigation System Schematics




Radio/Navigation System Schematics

Power, Ground, and References

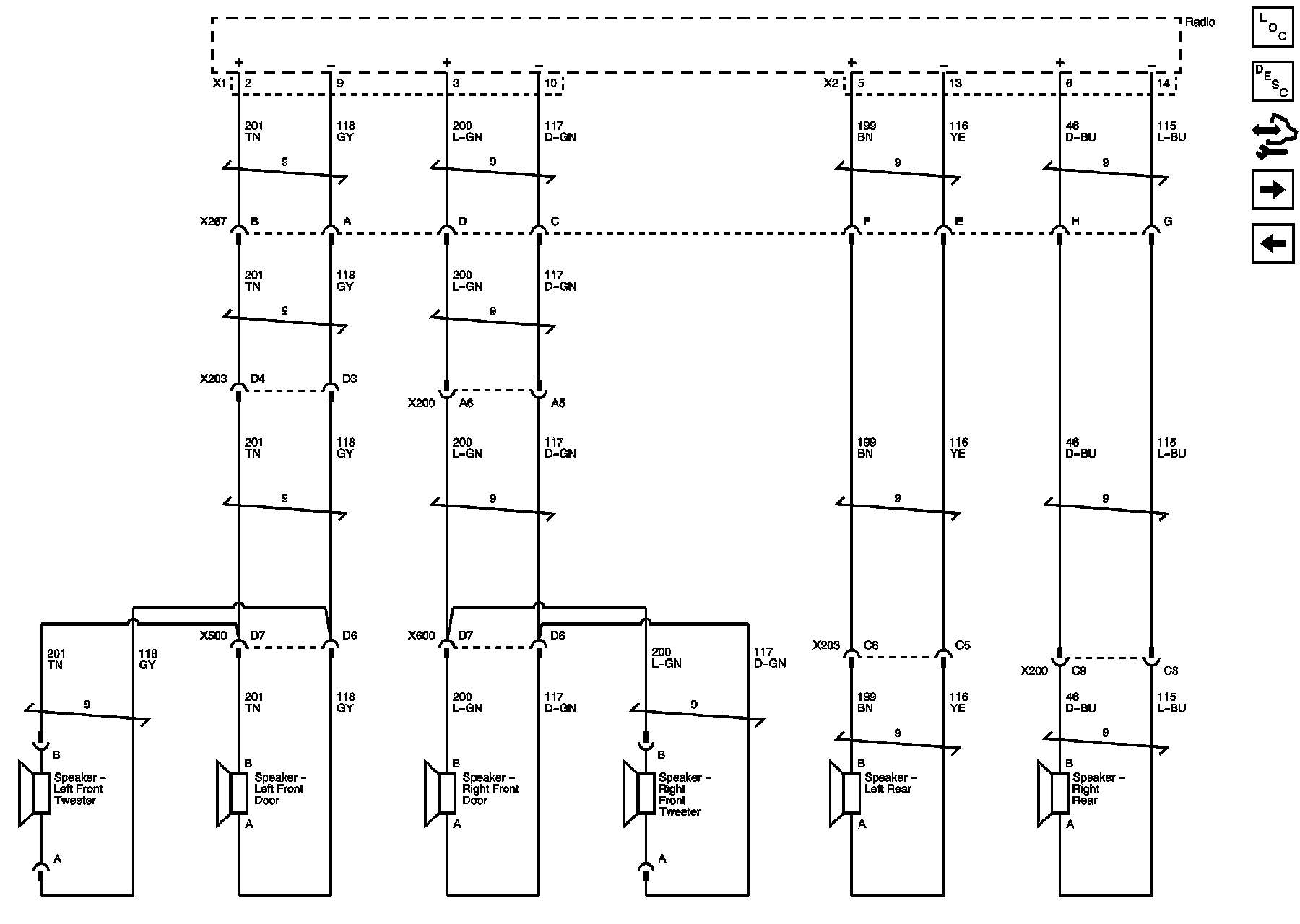

Radio to Speakers - UW6





Audio Signal Communications - UQ3





Audio Amplifier to Speakers - UQ3





Radio to Speakers - 9C1/9C3 w/o WX7

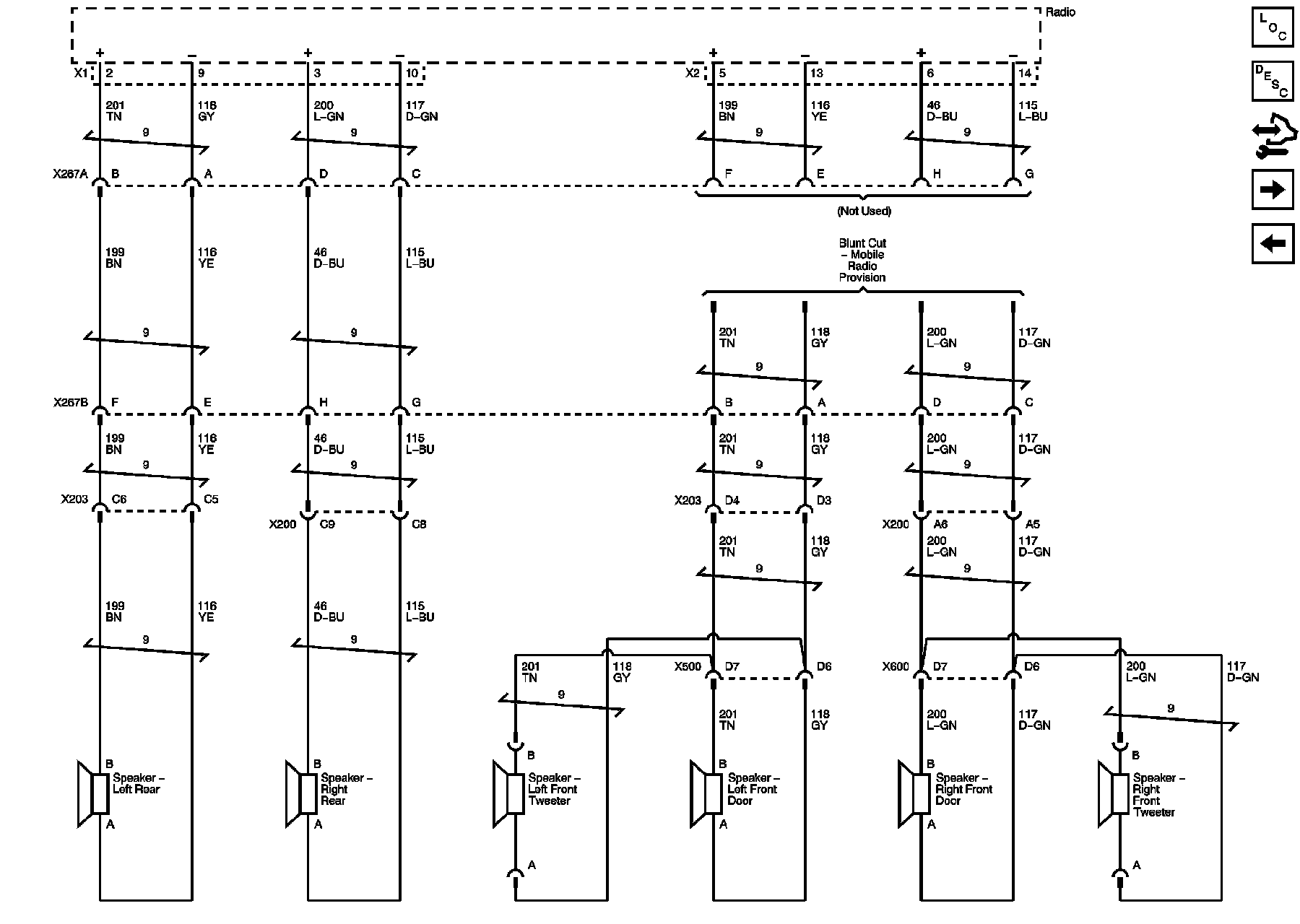

Radio to Speakers - 9C1/9C3 and WX7





Satellite Radio - U2K
