Instrument Cluster Schematics

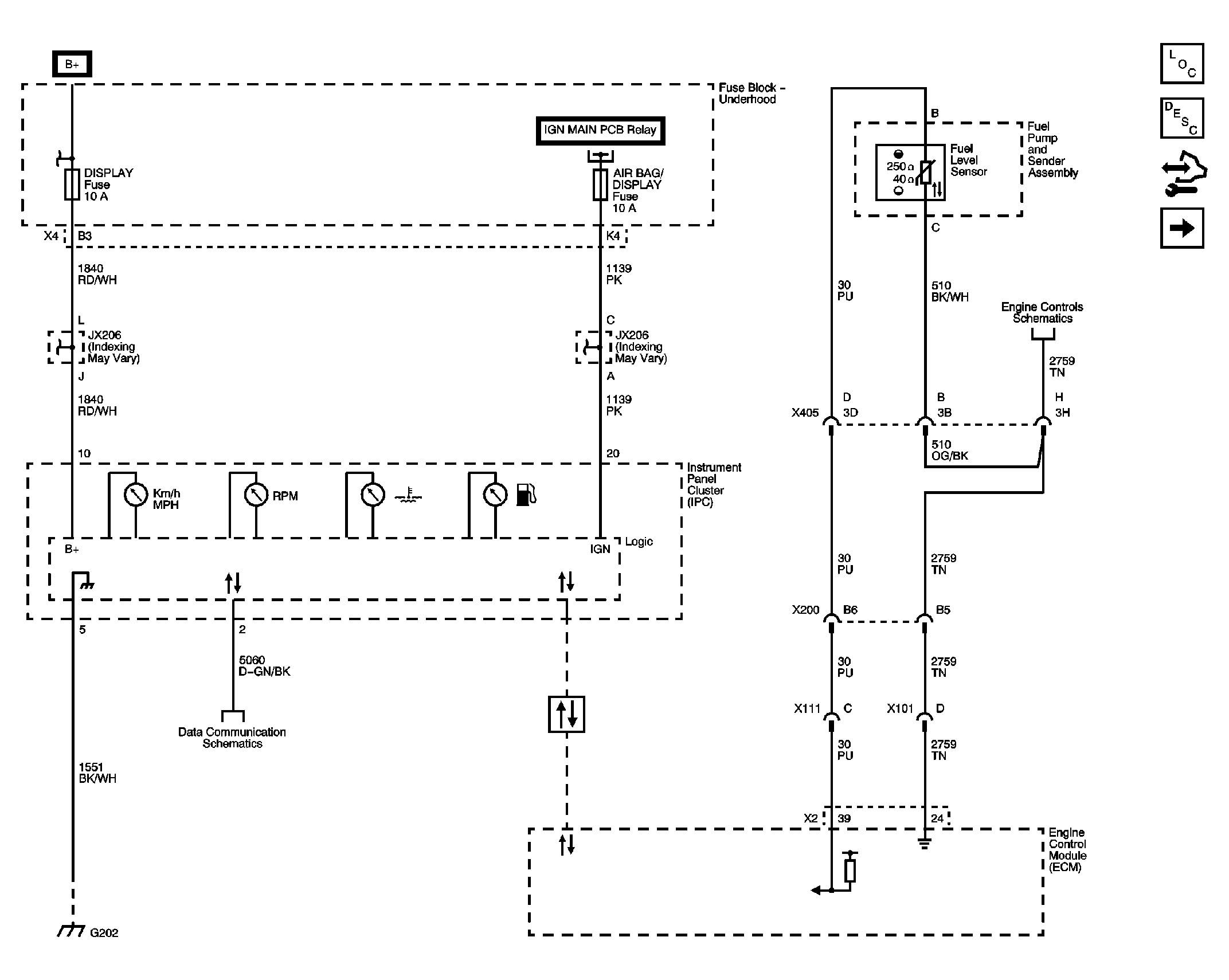

Fig 1: Power, Ground, and Gages
GM2227991Courtesy of GENERAL MOTORS CORP.

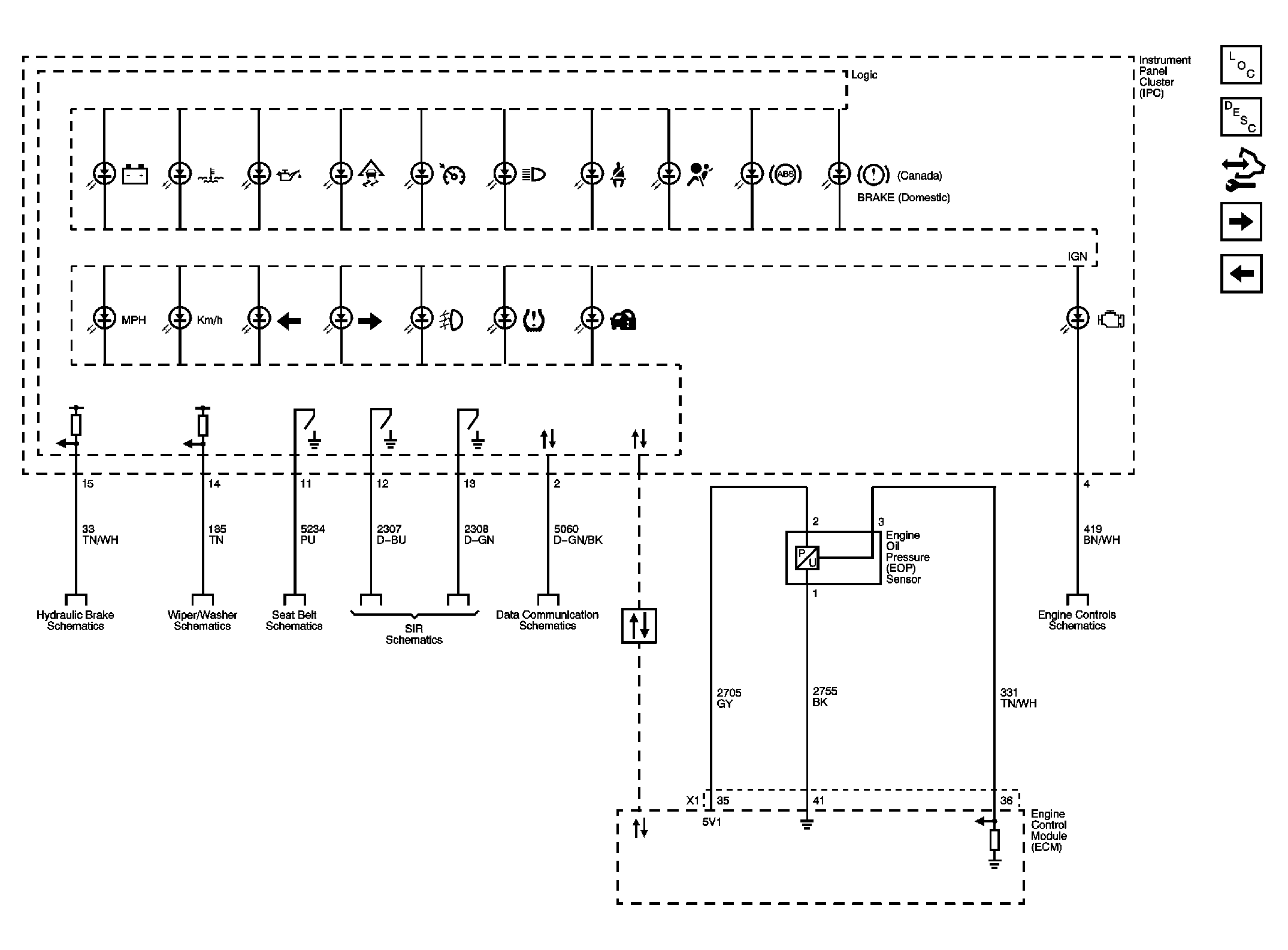

Fig 2: Indicators
GM2227999Courtesy of GENERAL MOTORS CORP.

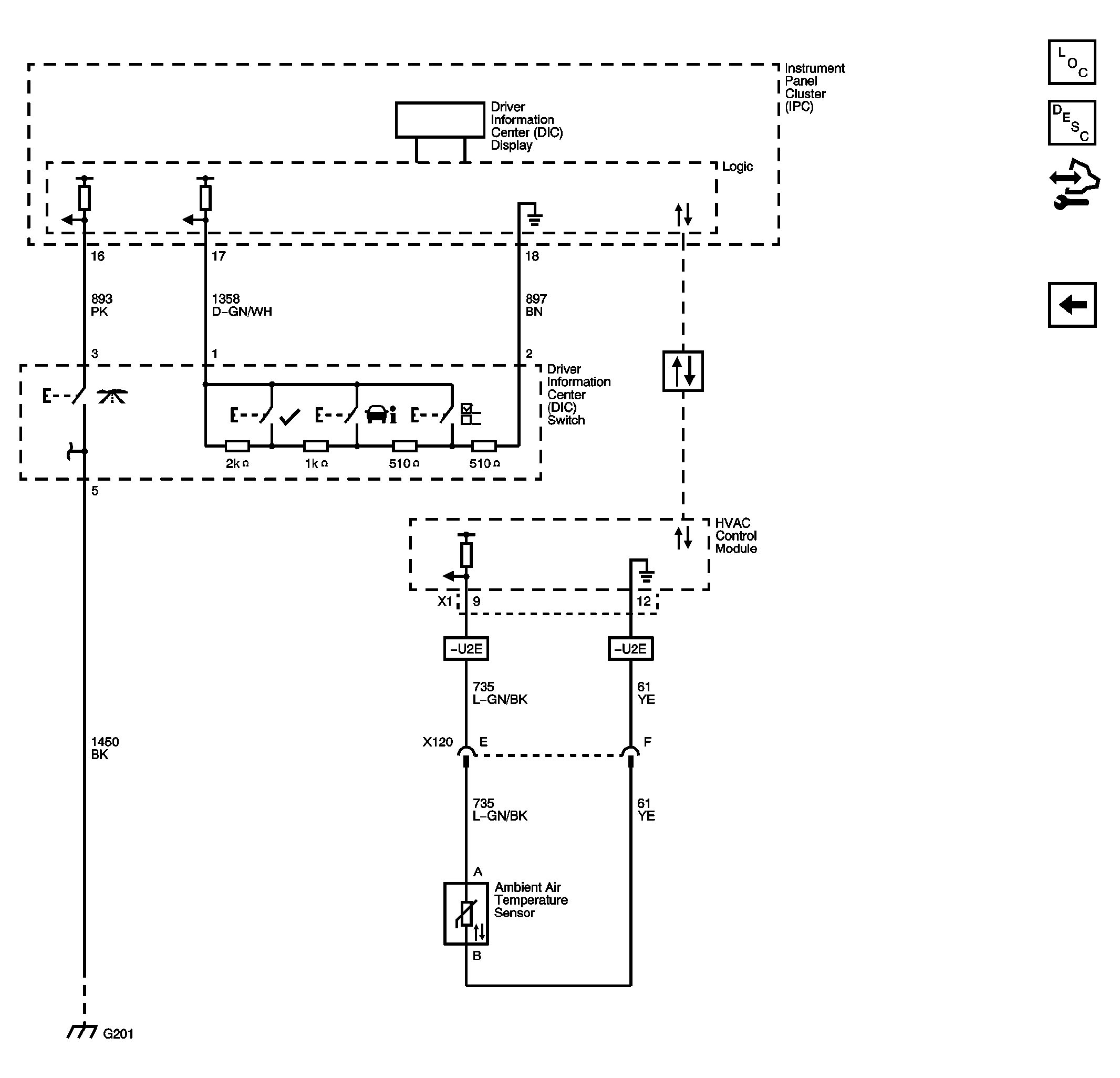

Fig 3: Driver Information Center
GM2228001Courtesy of GENERAL MOTORS CORP.
