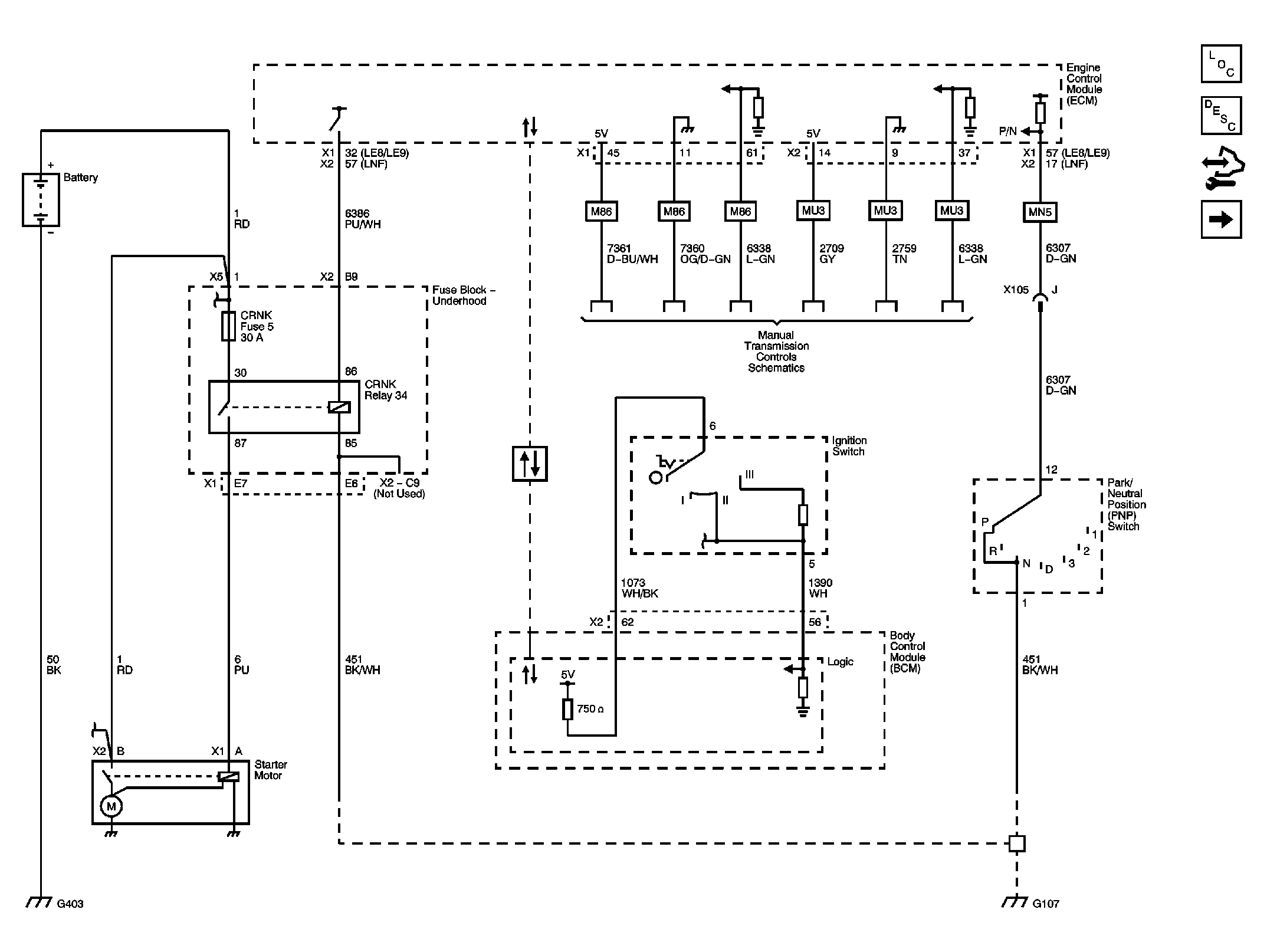

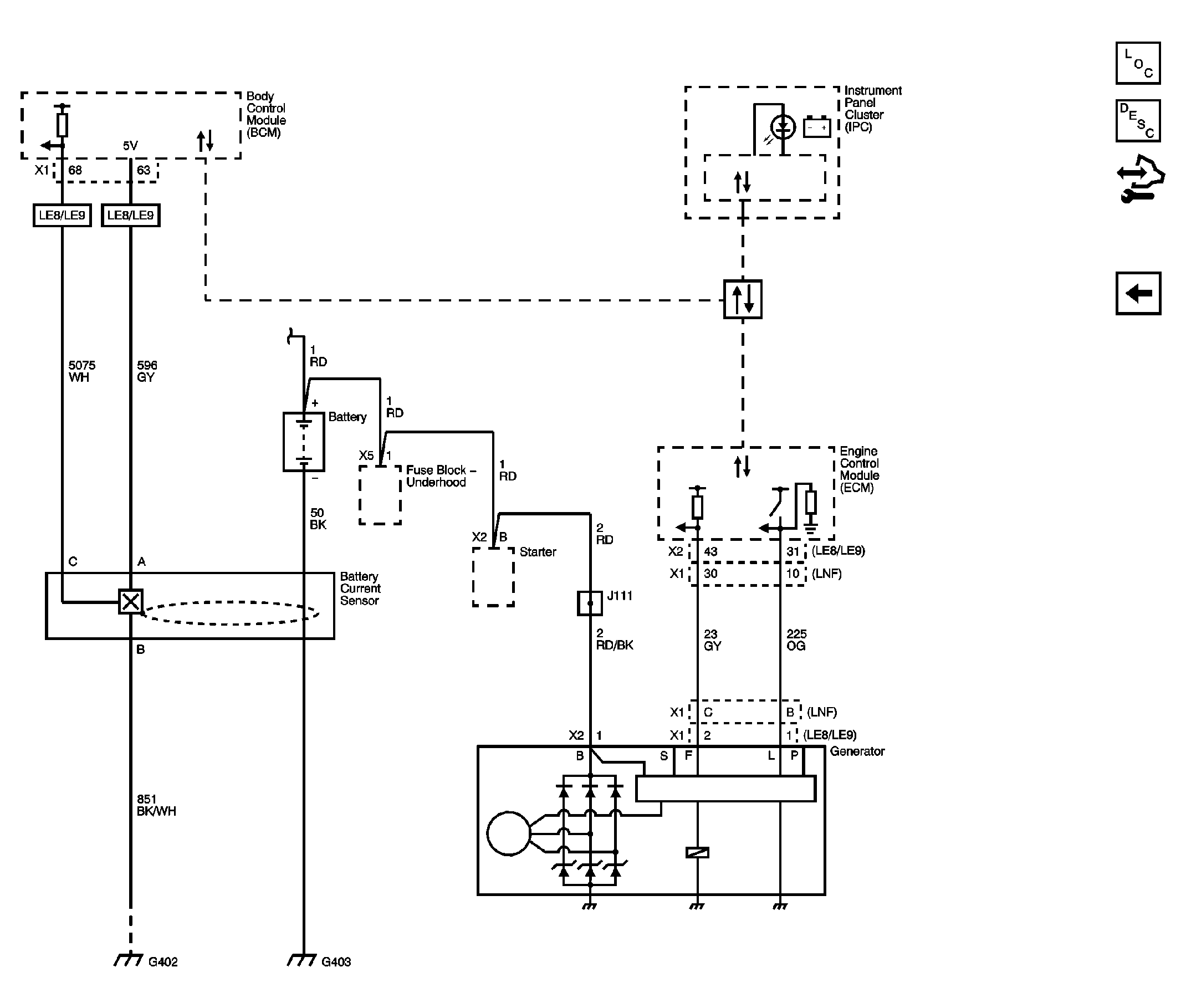

Home >> Chevrolet >> 2010 >> HHR LS, Standard >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Battery, Charging System And Starting System >> Schematic and Routing Diagrams >> Starting and Charging Schematics
