48. Final Drive Pinion End Play Check

Final Drive Pinion End Play Check

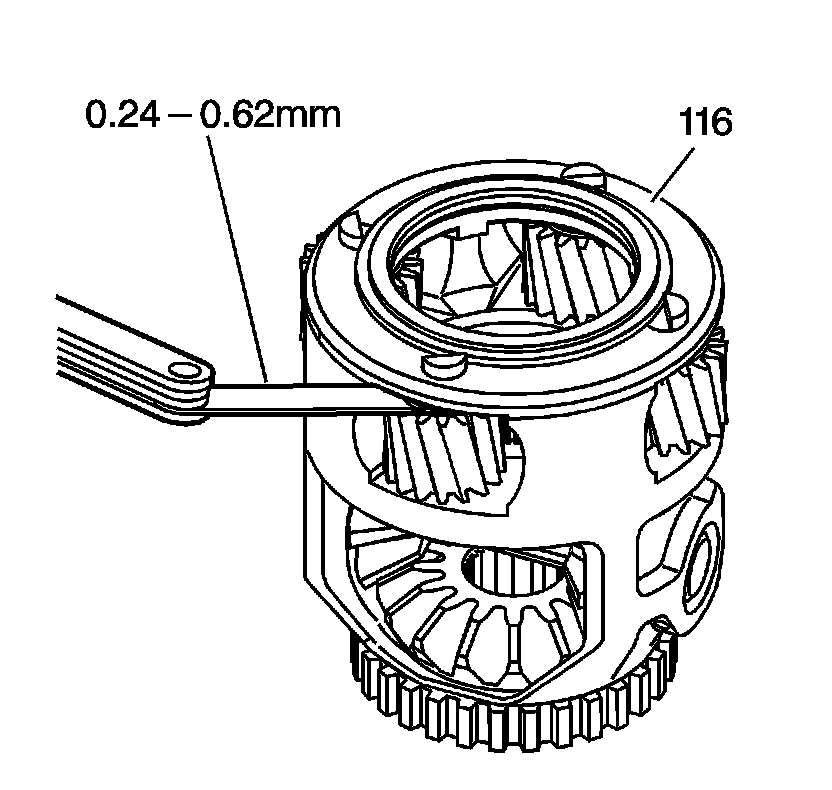

1. Inspect the end play with a feeler gauge for proper clearance. Proper clearance is 0.24-0.62 mm (0.009-0.024 in).
2. If the clearance is out of specification, replace the differential assembly (116).
