Front Air Bags
Component Connector End Views

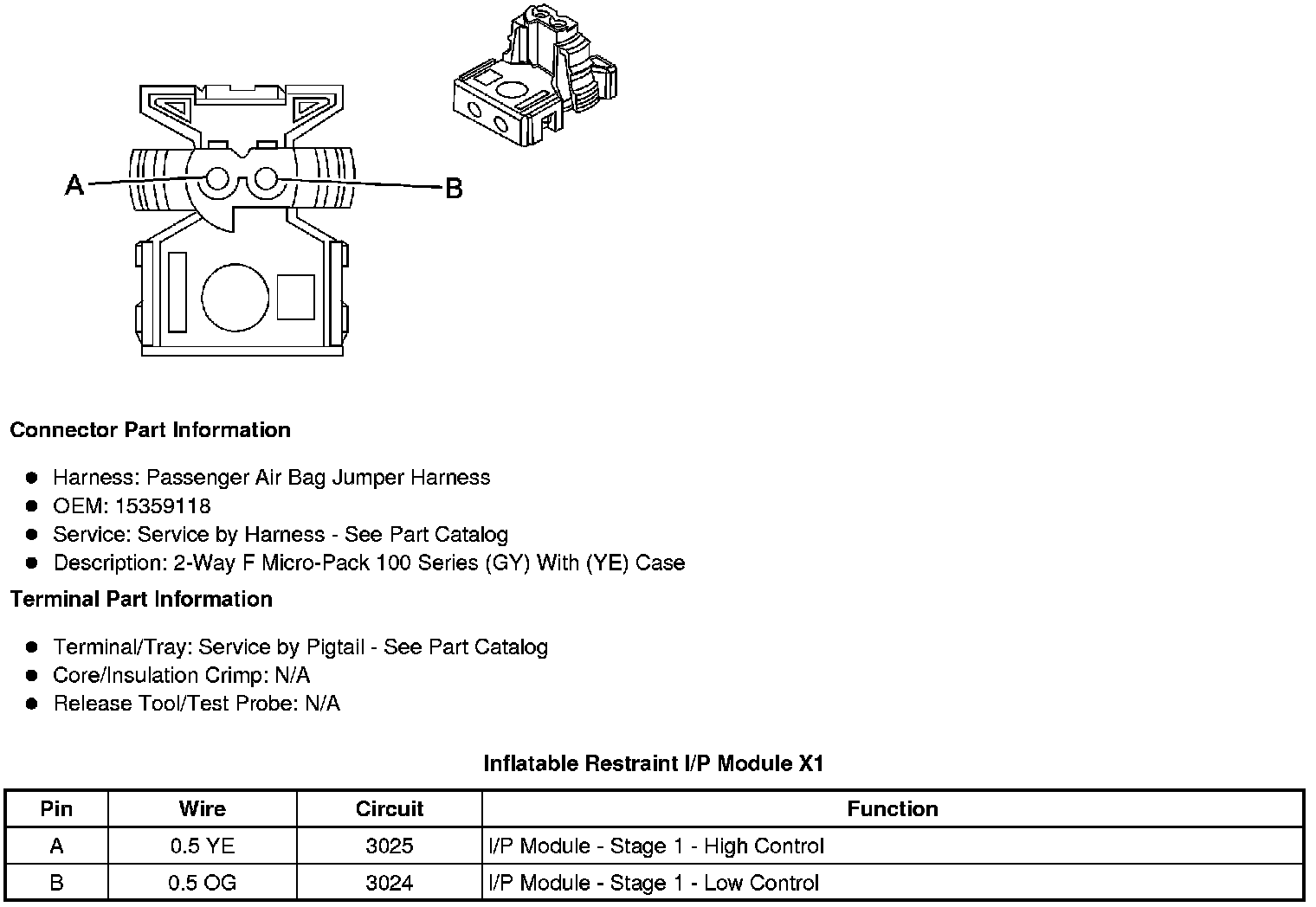

Inflatable Restraint I/P Module X1

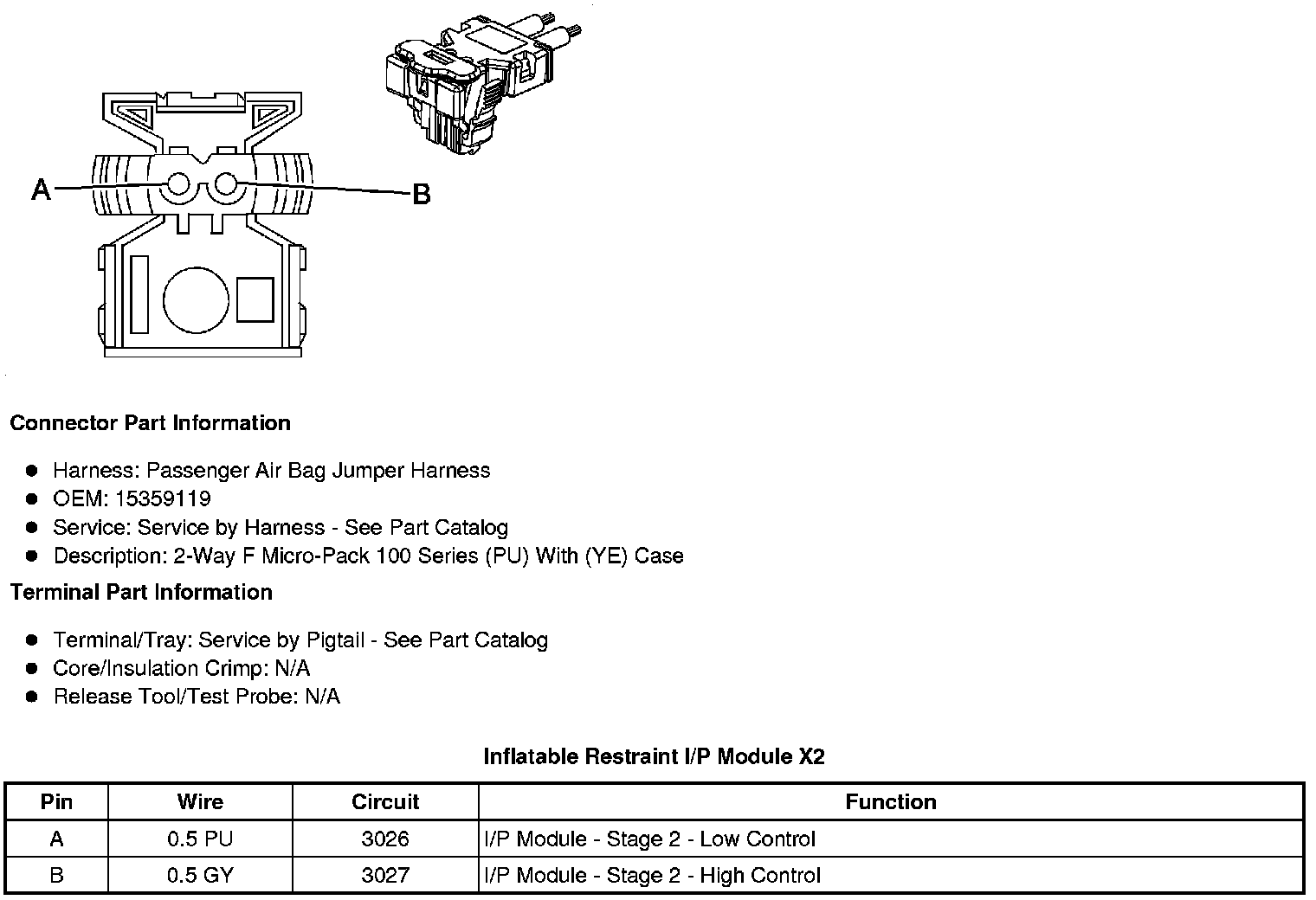

Inflatable Restraint I/P Module X2

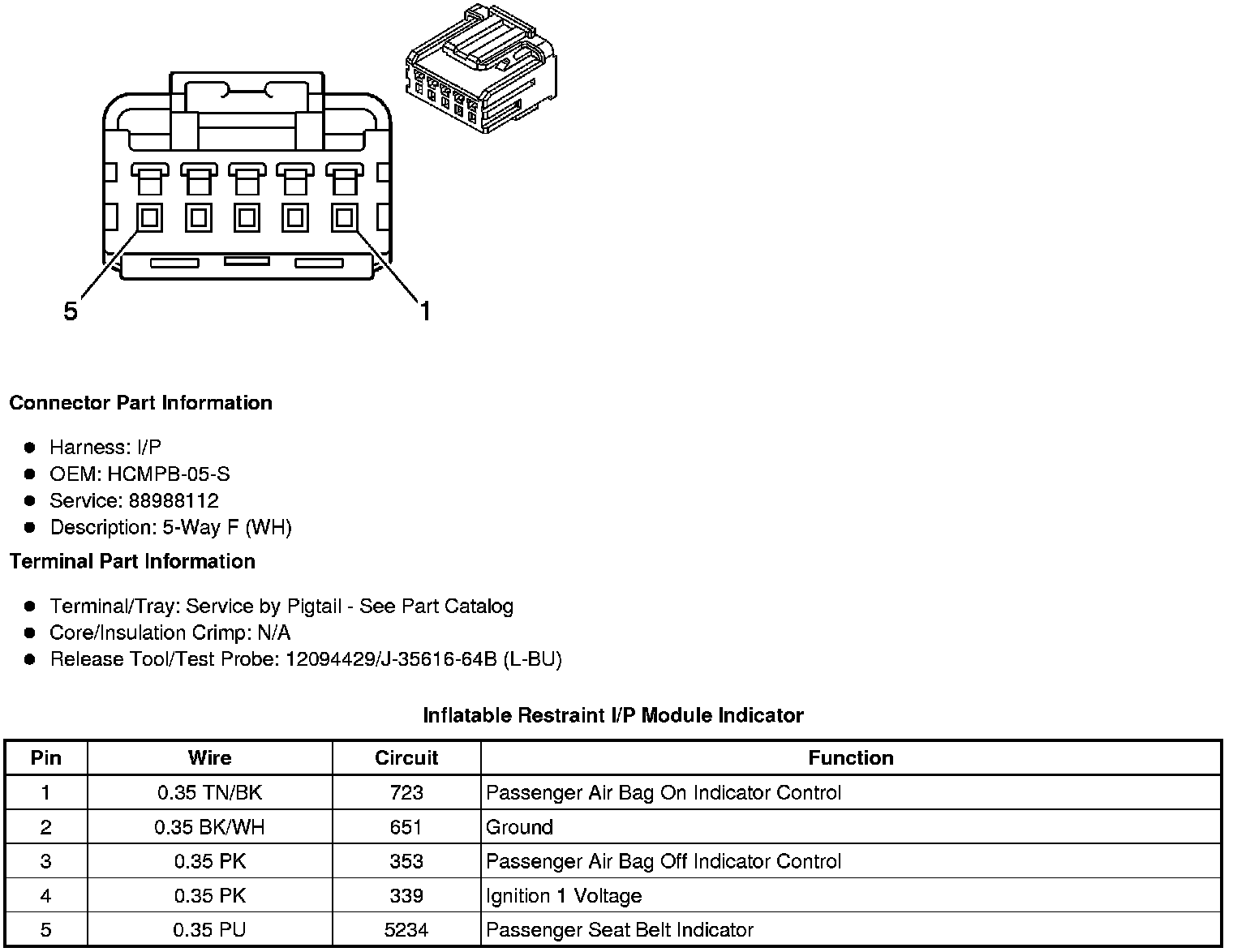

Inflatable Restraint I/P Module Indicator

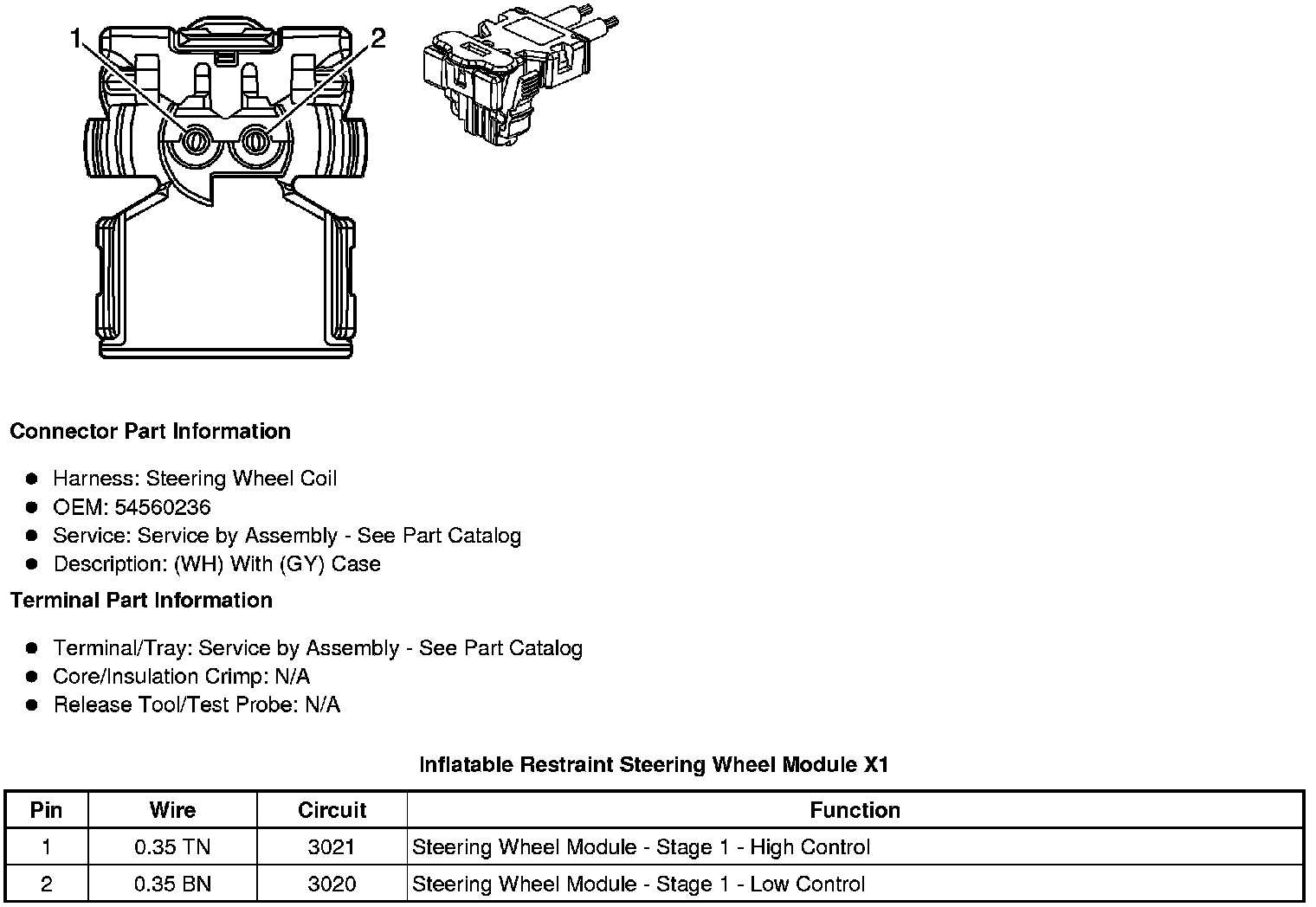

Inflatable Restraint Steering Wheel Module X1

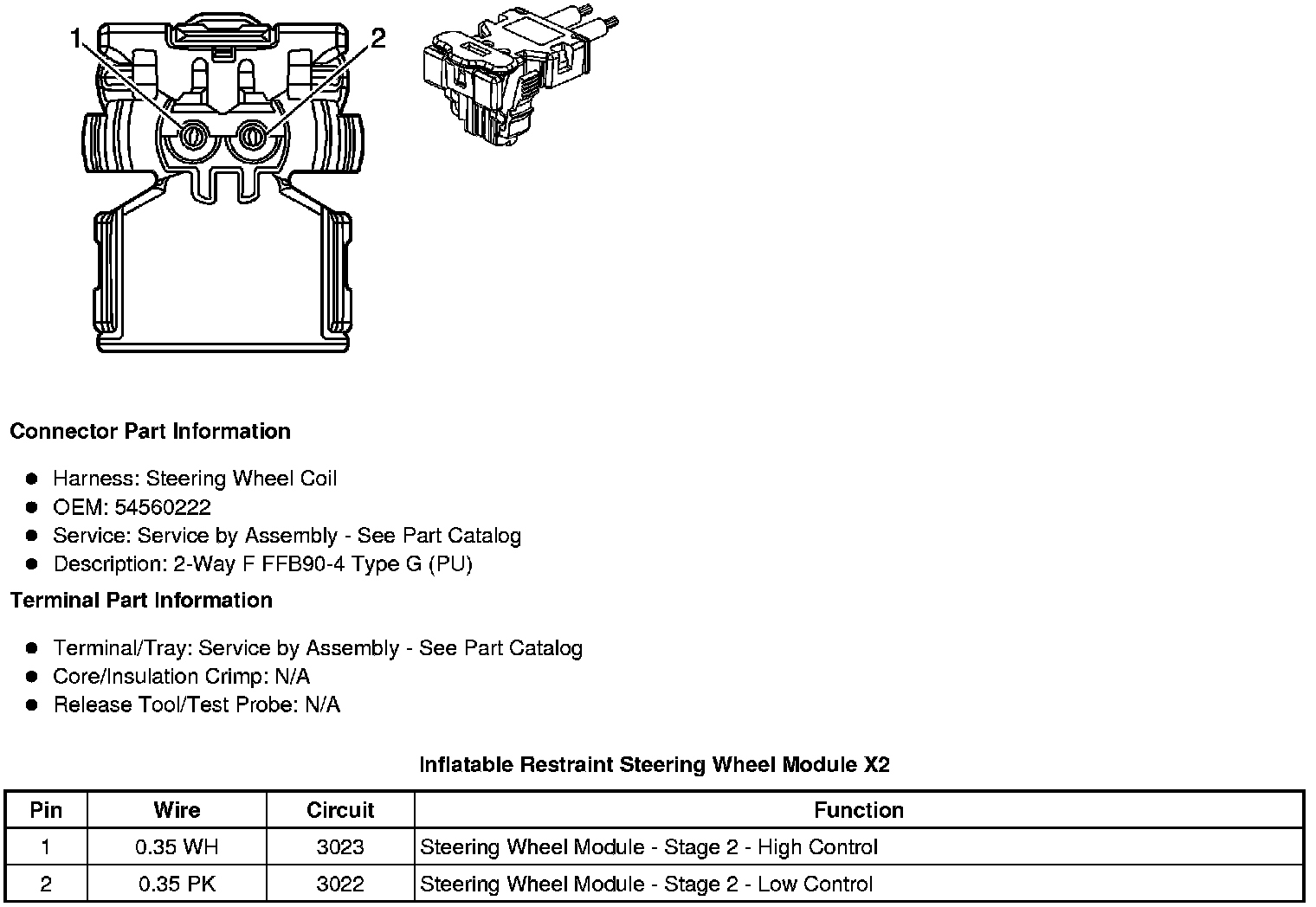

Inflatable Restraint Steering Wheel Module X2
Component Connector End Views
Inflatable Restraint I/P Module X1
Inflatable Restraint I/P Module X2
Inflatable Restraint I/P Module Indicator
Inflatable Restraint Steering Wheel Module X1
Inflatable Restraint Steering Wheel Module X2
