Voice Activation Module: Diagrams

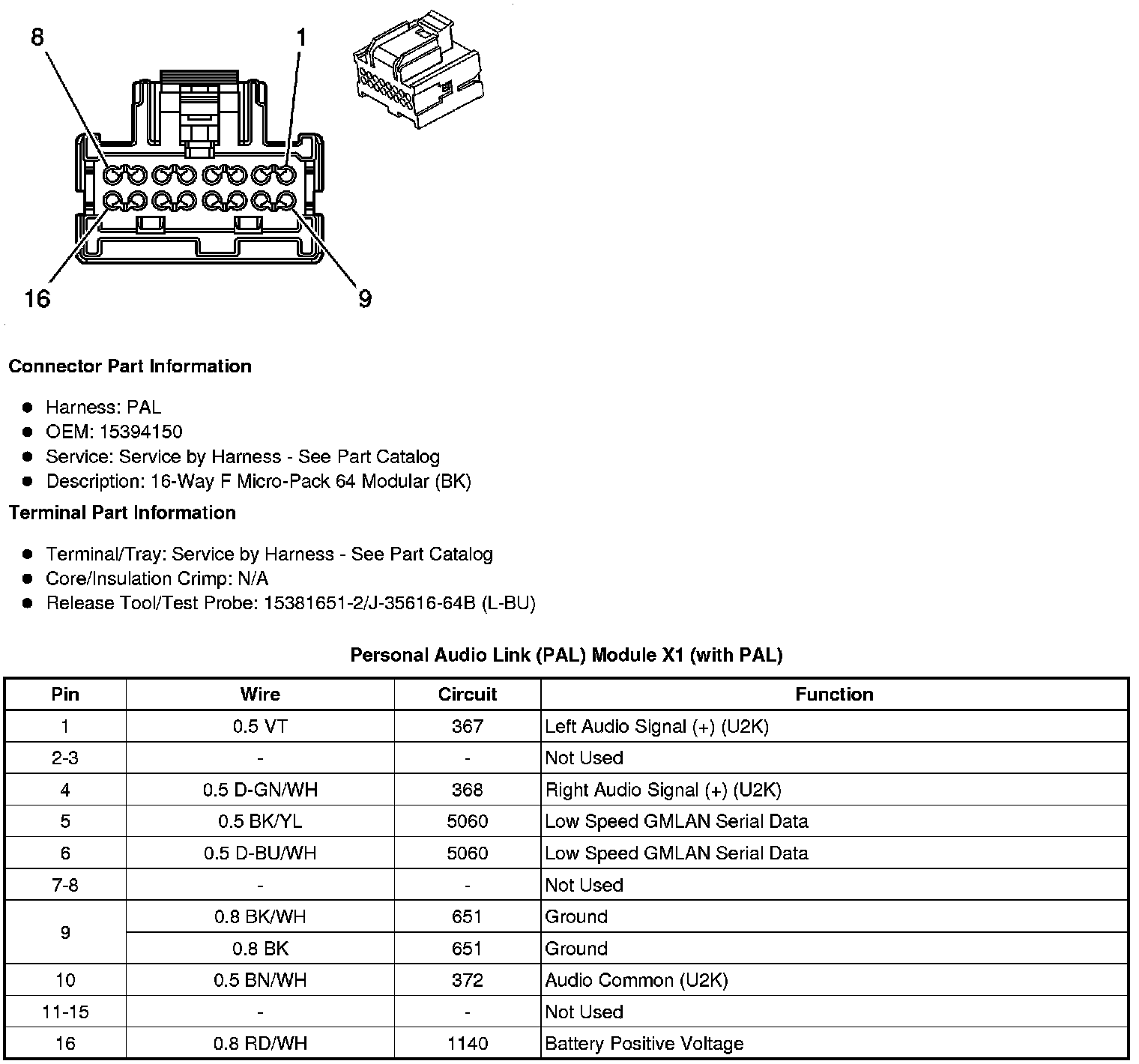

Component Connector End Views

Personal Audio Link (PAL) Module X1 (with PAL)
