X160




Harness Routing Views

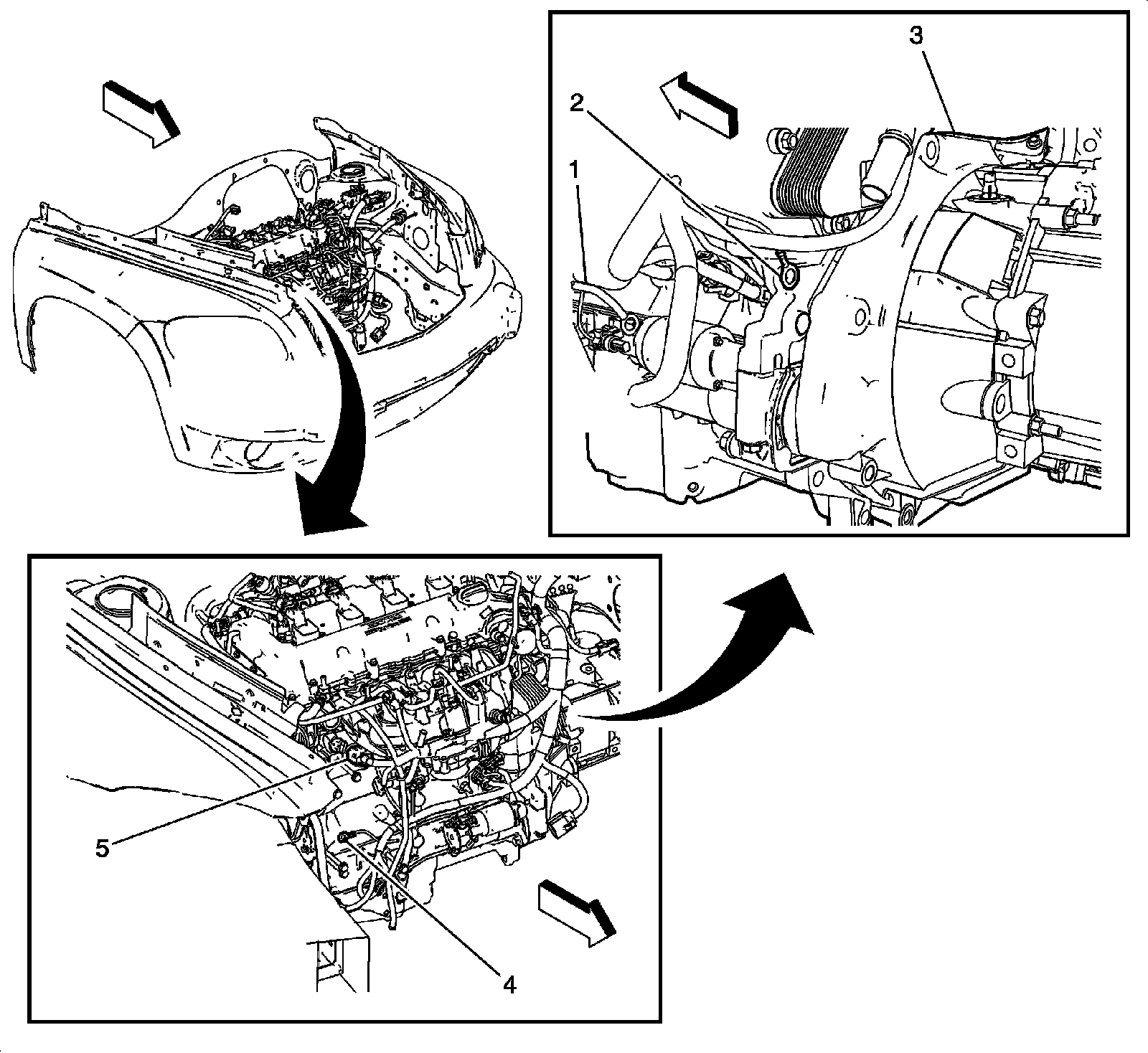

Engine - Front View (LNF)






1 - J111
2 - G107
3 - Transmission (MU3)
4 - G105
5 - X160
