Parking Lamp: Diagrams




Component Connector End Views

Park/Turn Signal Lamp - Left Front

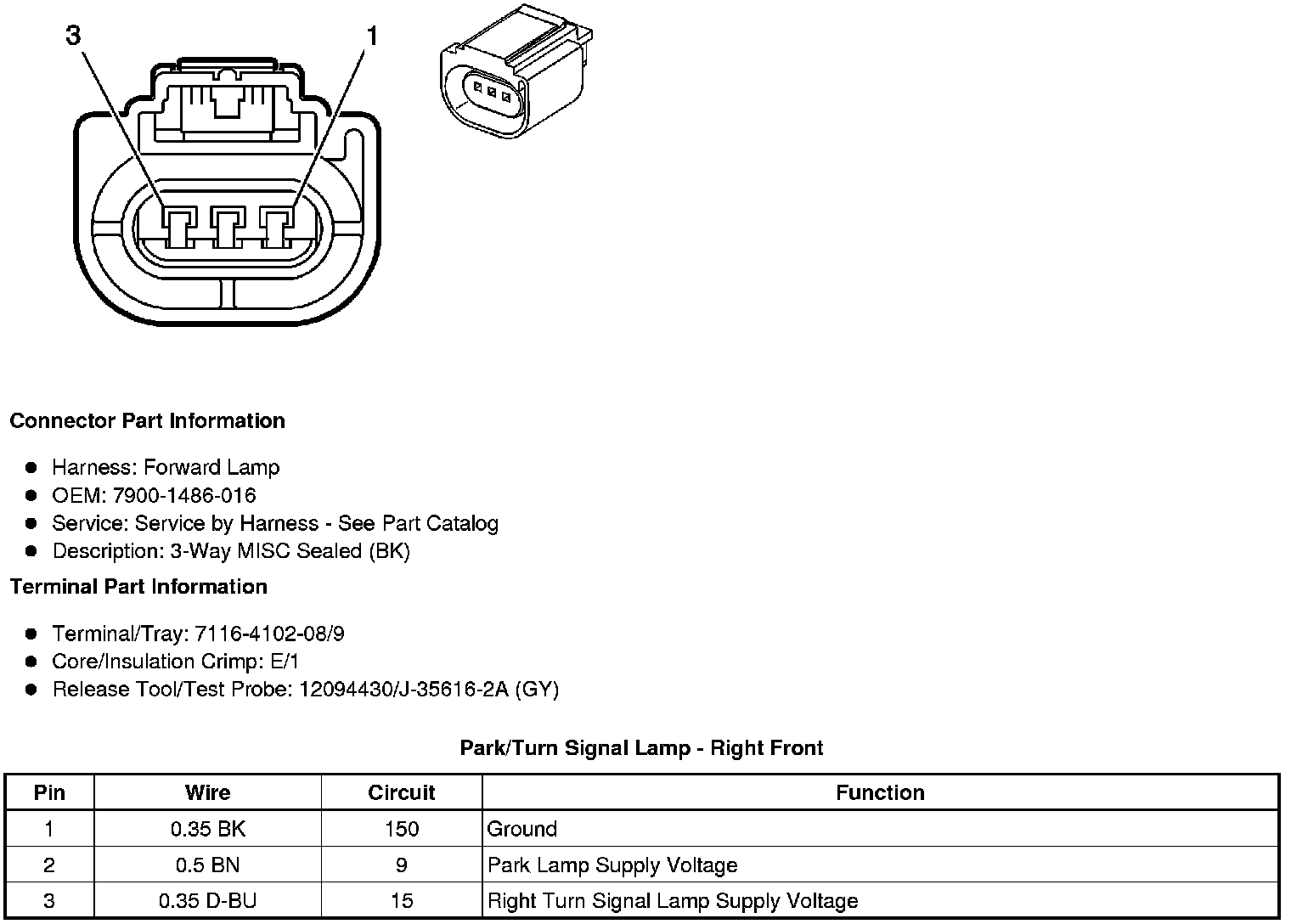

Park/Turn Signal Lamp - Right Front
