Home >> Chevrolet >> 2010 >> HHR L4-2.0L Turbo >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Fog Lights Schematics

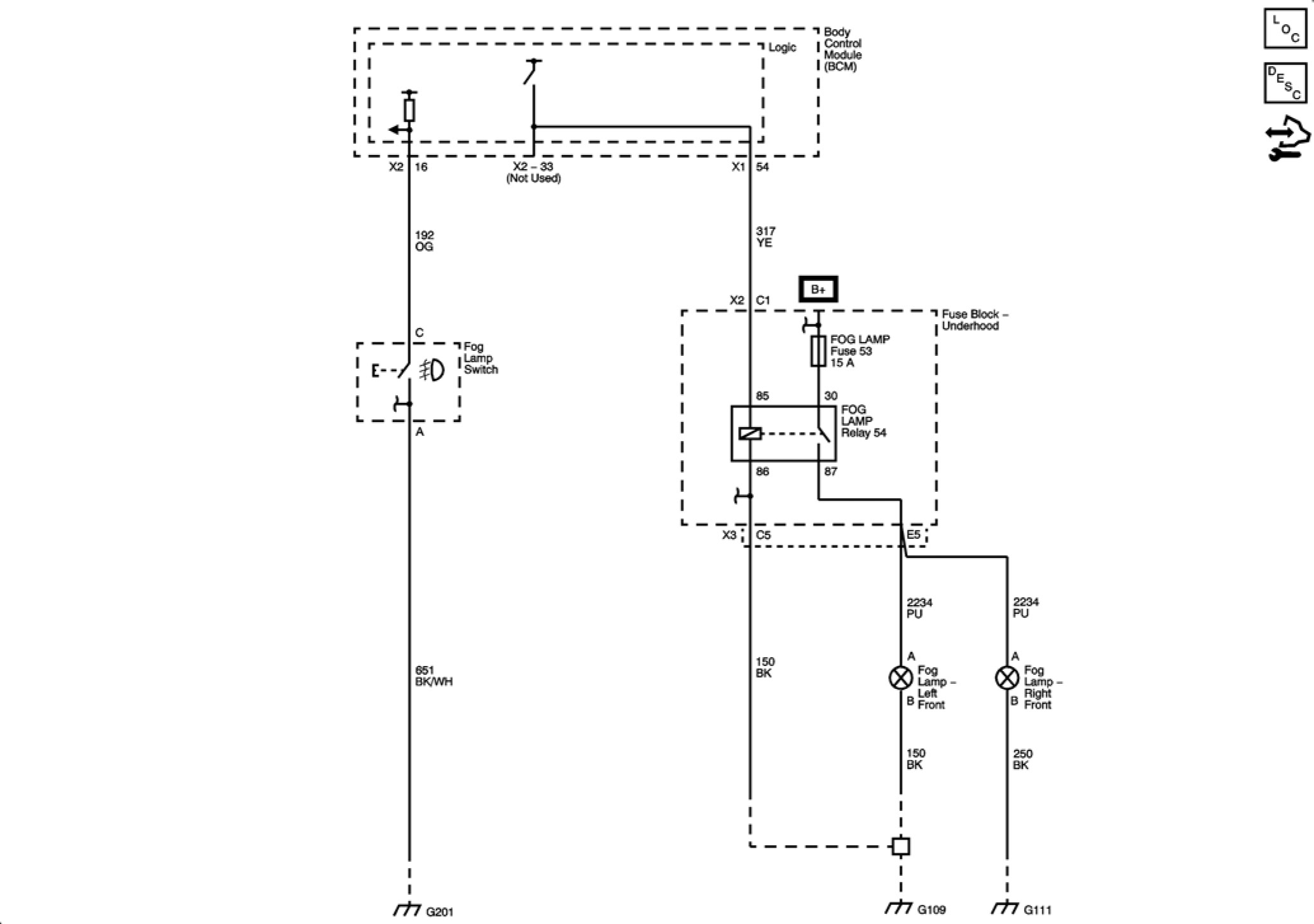

Fog Lights Schematics
