Owners Manual Procedure

PASSENGER COMPARTMENT AIR FILTER
The filter removes dust and pollen from the air which is drawn into the vehicle. Airflow reduction is an indication that the filter needs to be replaced.

The filter should be replaced as part of routine scheduled maintenance.

To access the passenger compartment air filter:

1. Open and empty the glove box.

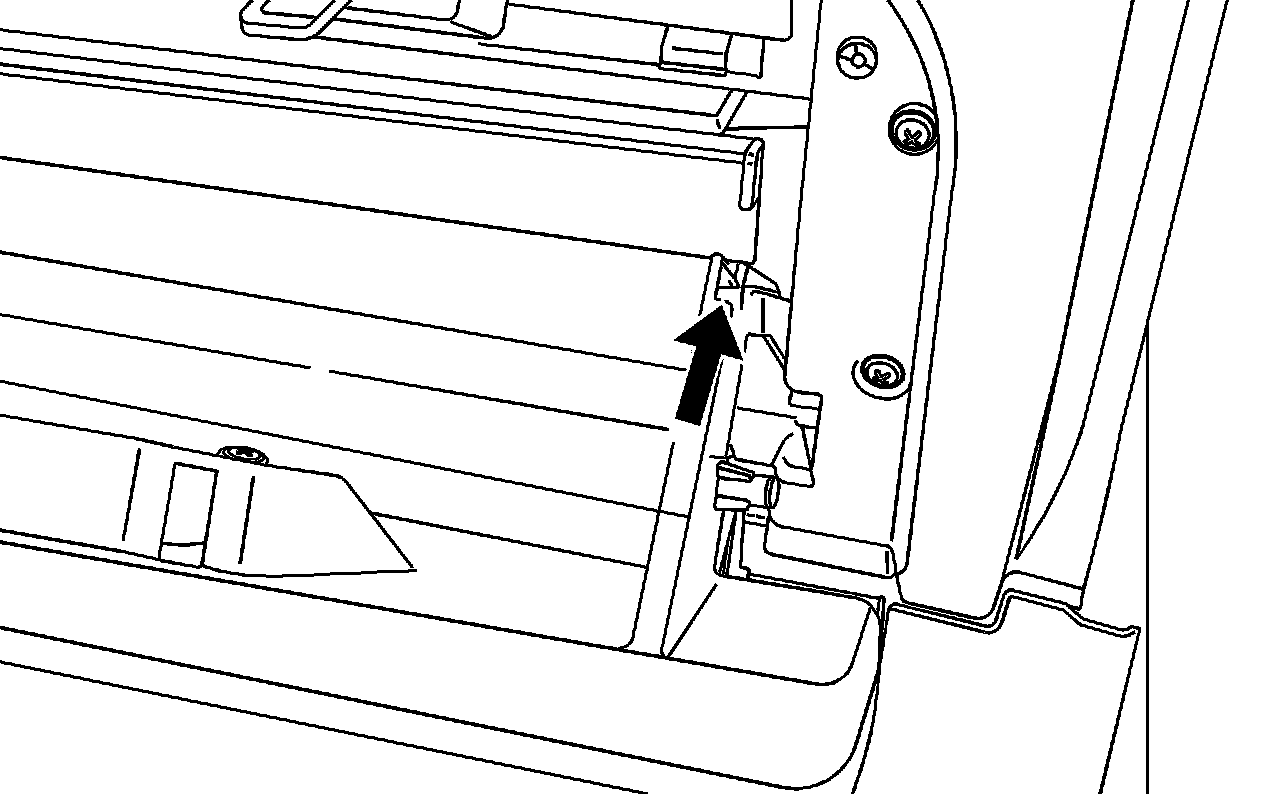

2. Press both glove box stops outward to let the glove box drop open completely.






3. Pull the three tabs of the filter access door down and open the access door downward.

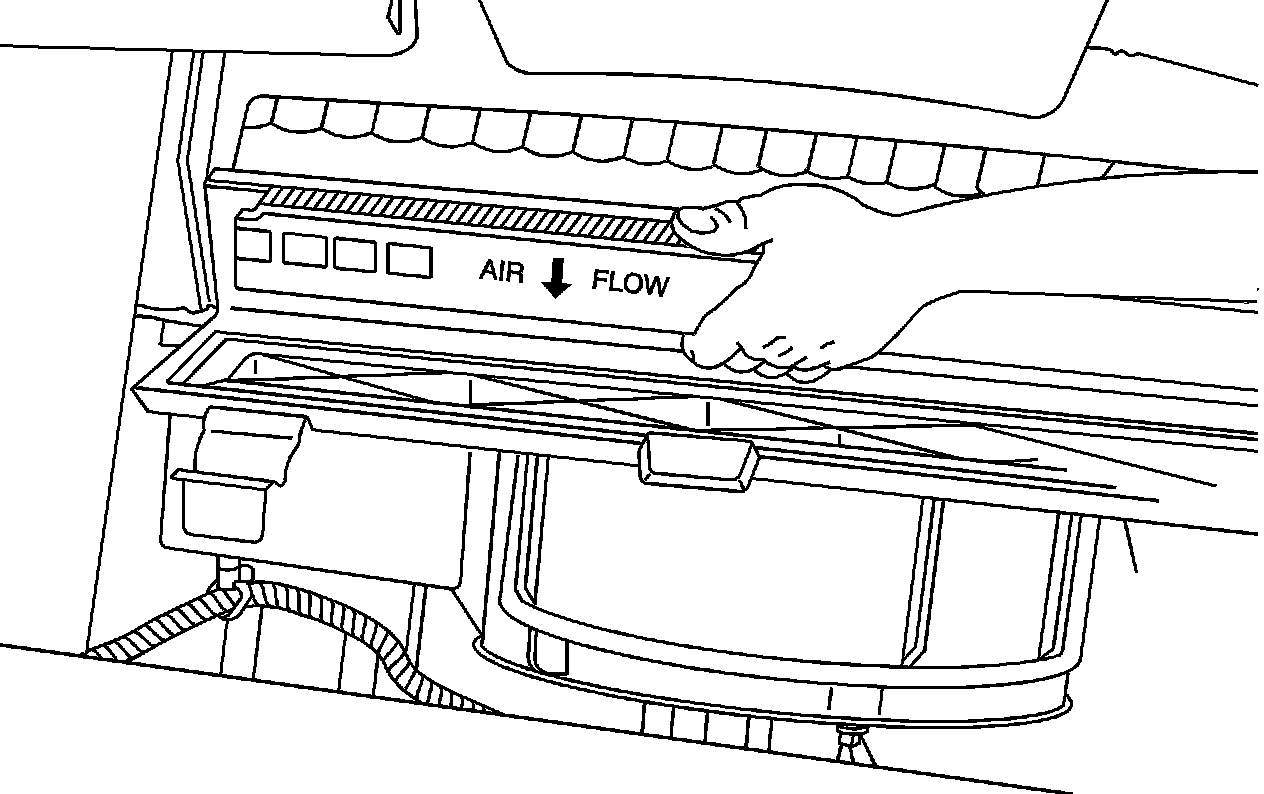

4. Pull the filter out, keeping it upwards. Install the new air filter with the AIR FLOW arrow pointing downward. Reverse Steps 1 through 4 to reassemble.
