With Manual Transmission

Engine Flywheel Removal (Manual Transmission)

Special Tools

J 43653 - Flywheel Holding Tool




1. Ensure that J 43653 - flywheel holding
tool is installed and engaging the flywheel to prevent crankshaft rotation.
2. Remove the flywheel attaching bolts.

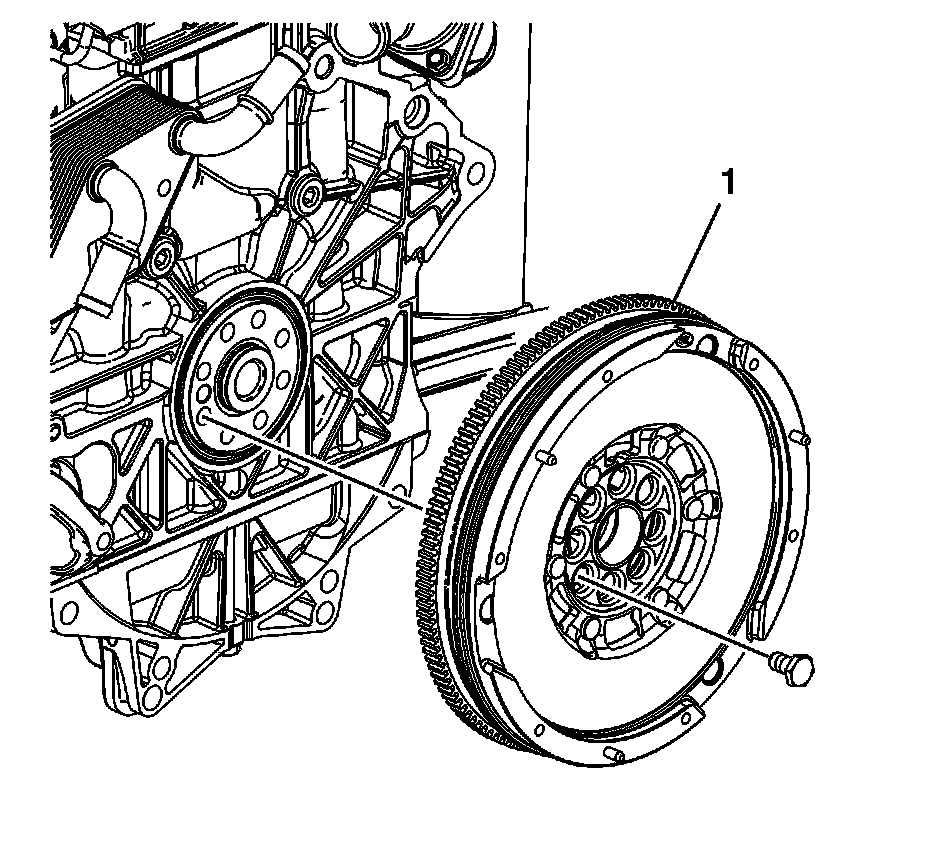

3. Remove the flywheel (1).
4. Remove the pilot bearing. Refer to Clutch Pilot Bearing Replacement (Service and Repair) for manual transmission.
5. Remove J 43653 - flywheel holding tool.
