System Diagram
>>
Release Systems Schematics
Release Systems Schematics
Release Systems Schematics
Liftgate

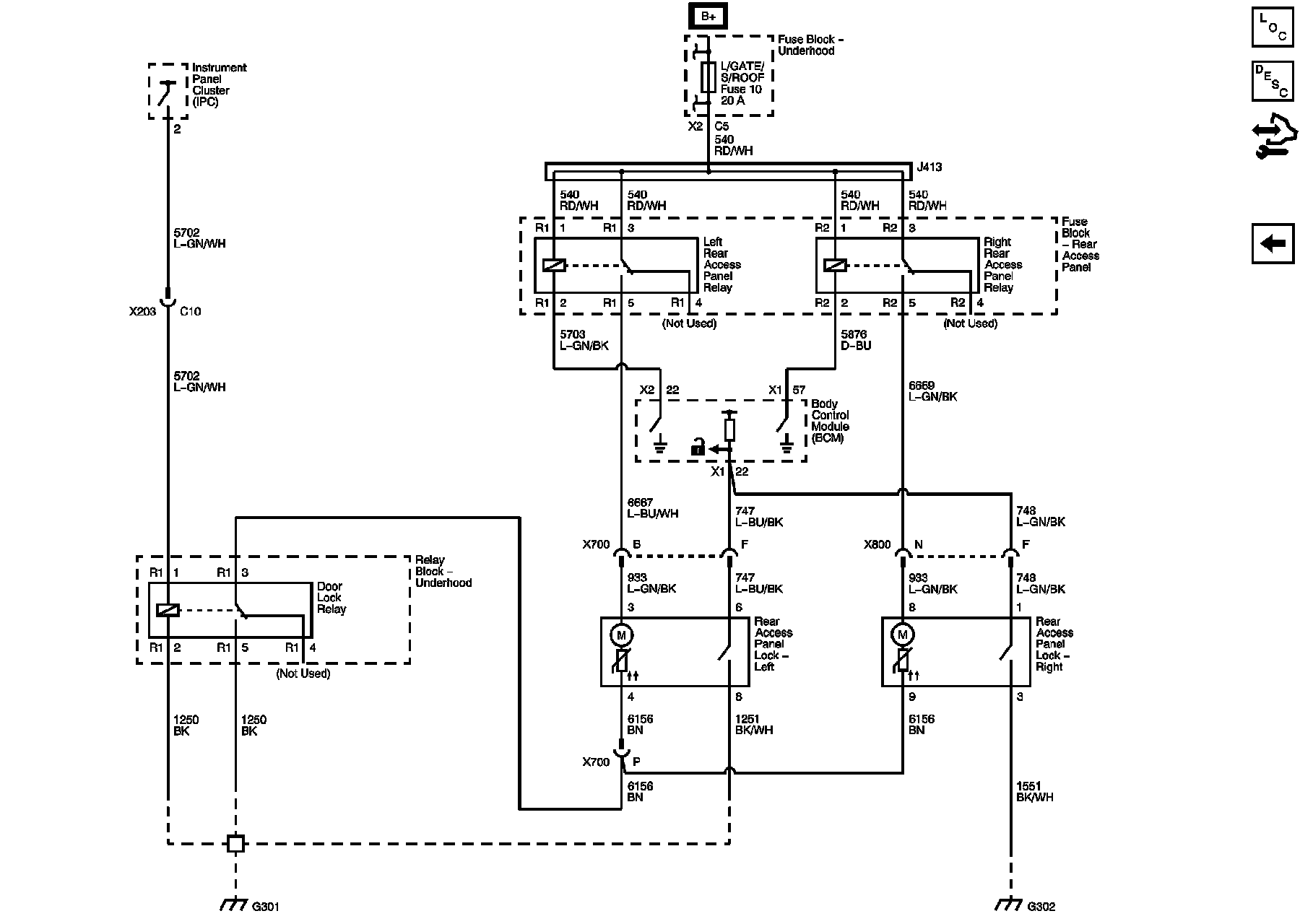

Rear Access Panel (Panel Van) 1 of 2
Rear Access Panel (Panel Van) 2 of 2
