X401

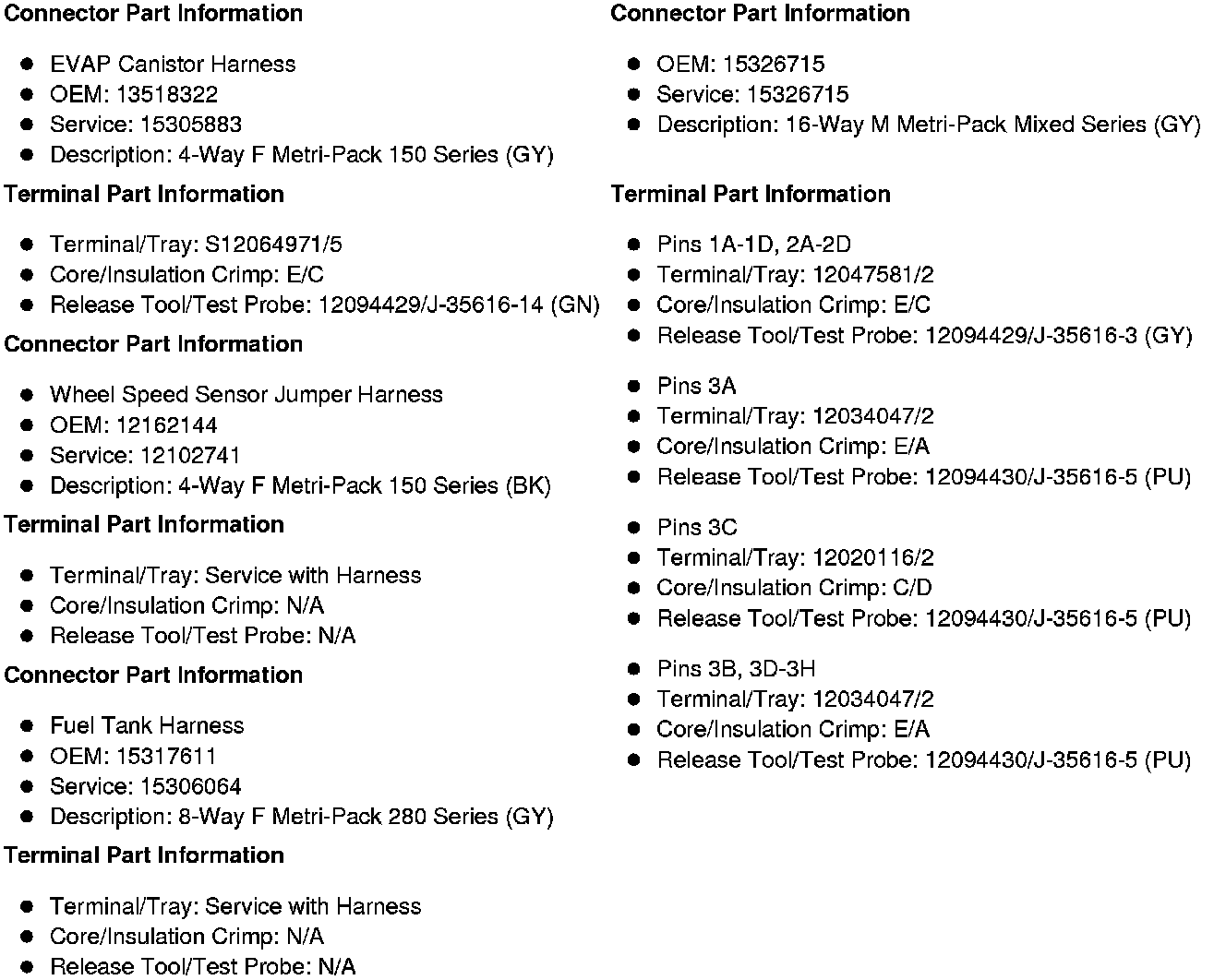

Inline Harness Connector End Views

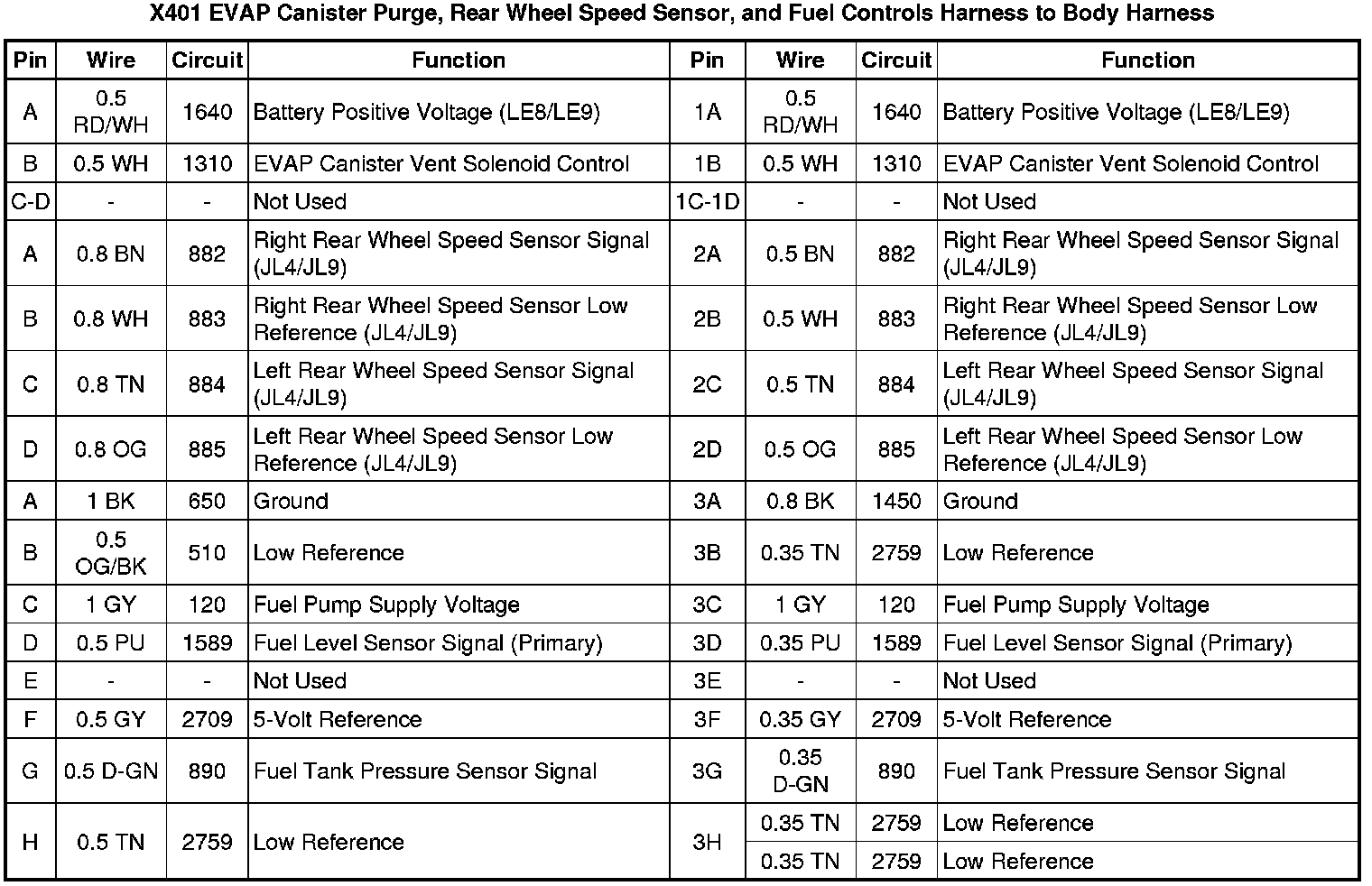

X401 EVAP Canister Purge, Rear Wheel Speed Sensor, and Fuel Controls Harness to Body Harness
