Air Bypass Valve Solenoid, Turbocharger

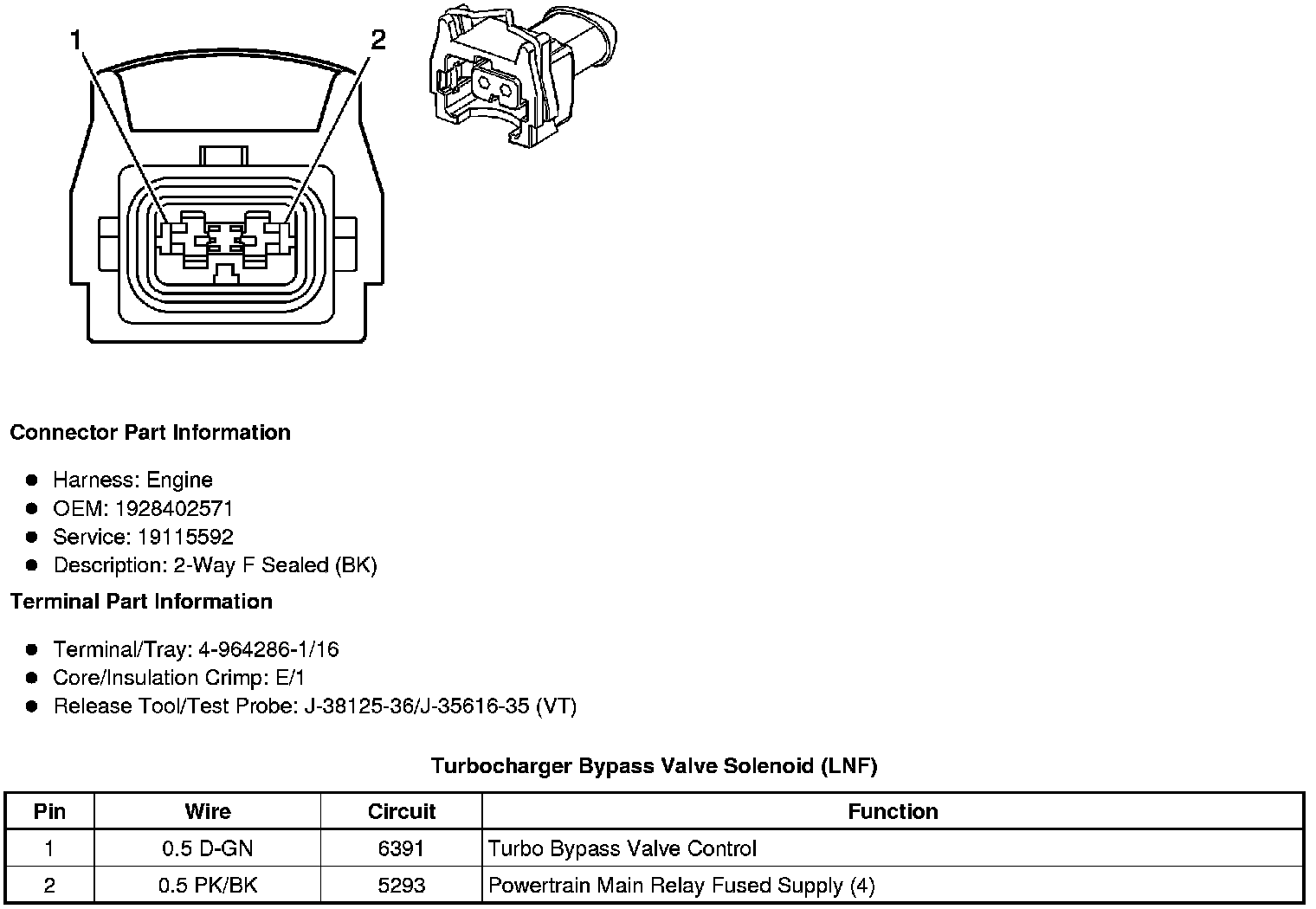

Component Connector End Views

Turbocharger Bypass Valve Solenoid (LNF)
