Home >> Chevrolet >> 2010 >> HHR L4-2.0L Turbo >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams




Antilock Brake System Schematics

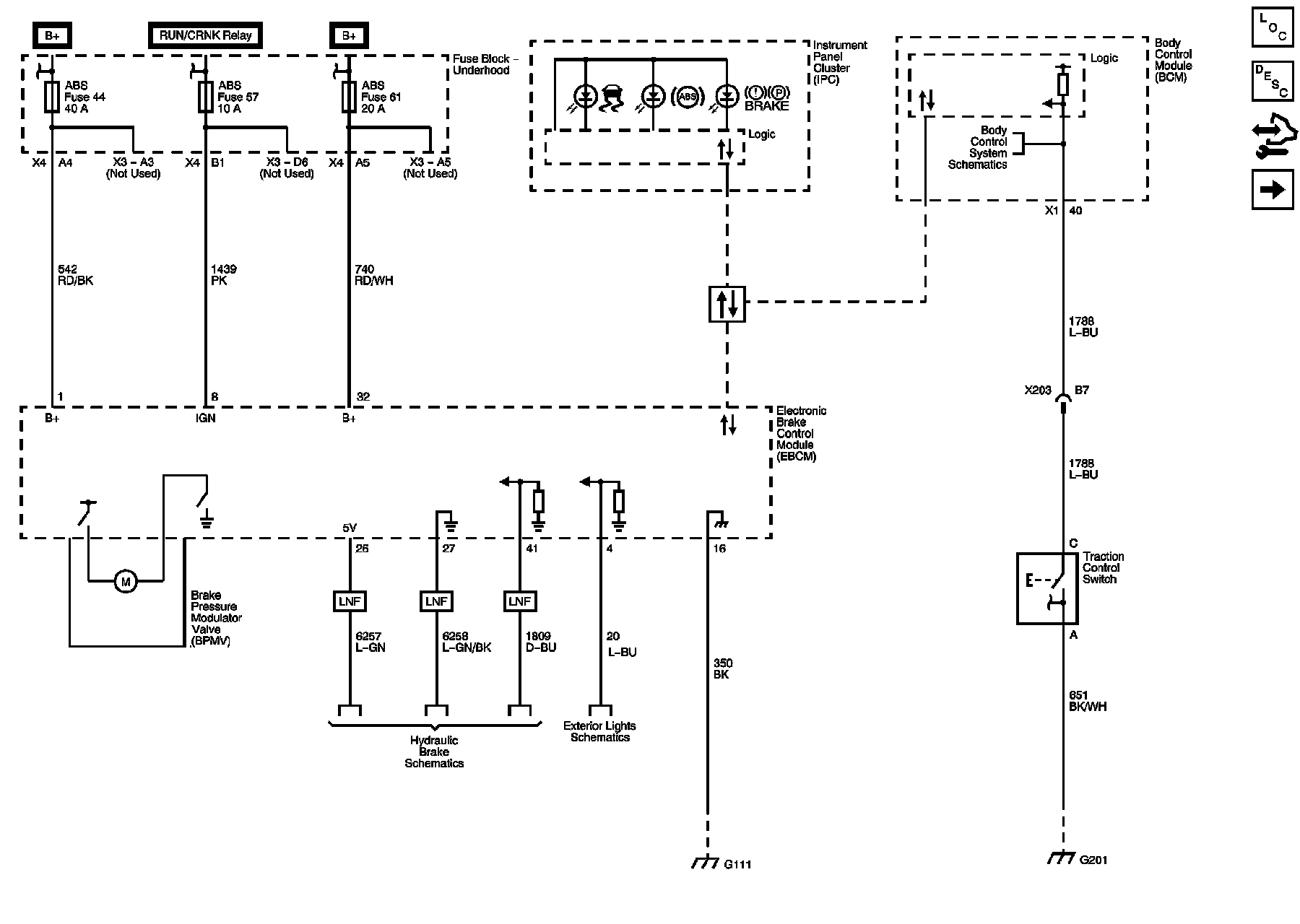

Power, Ground, Serial Data and Traction Control





Wheel Speed Signals





Vehicle Stability Control
