Front of Vehicle/Engine Compartment Component Views




Front of Vehicle/Engine Compartment Component Views

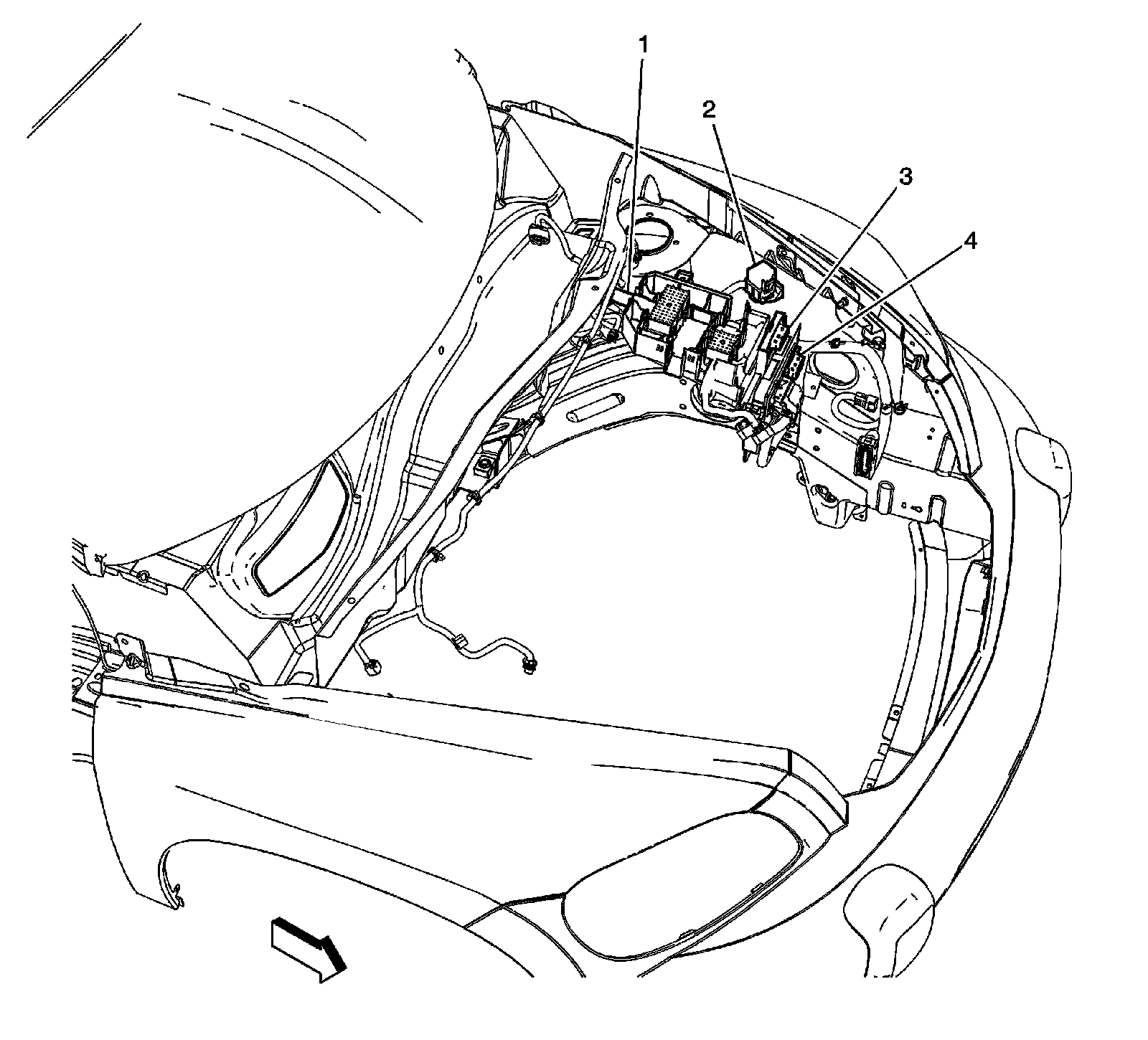

Engine Compartment - Left Side




1 - G109
2 - Liftgate Relay Block (Panel Van)
3 - Transmission Control Module (TCM) (MN5)
4 - Engine Control Module (ECM)
