Front Bumper Fascia Replacement (SS)

Front Bumper Fascia Replacement (SS)












2.Remove the front bumper fascia extension. Refer to Front Bumper Fascia Extension Replacement .

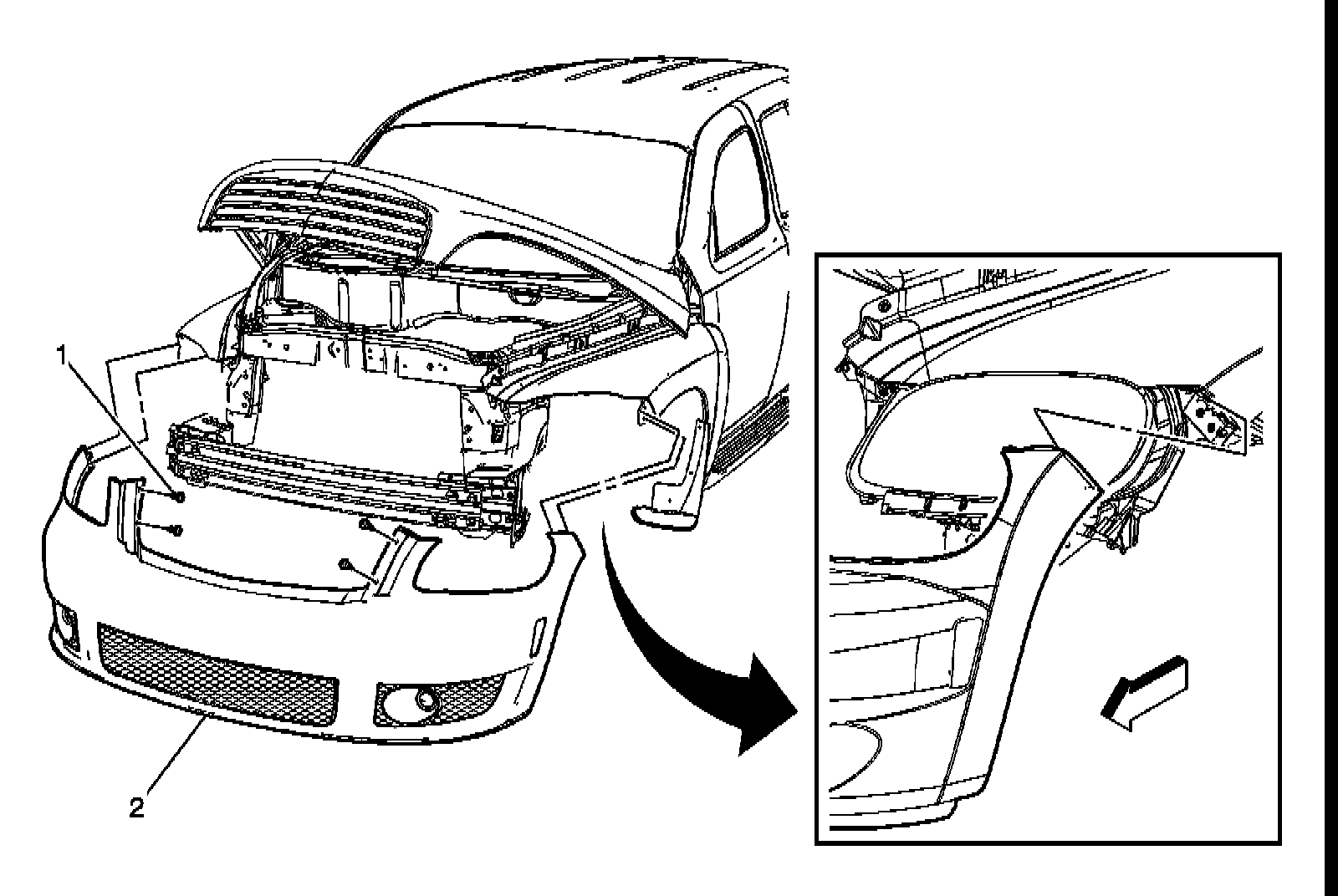

1Front Bumper Fascia Screw (Qty: 4)
Caution:Refer to Fastener Caution .

Tip Carefully push a small nylon wedge between the fascia and the fender. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the bracket.
Tighten 10 N �m (89 lb in)

2Front Bumper Fascia
Tip
-Disconnect the lamp electrical connectors.

-Pull out on the fascia to release the tabs on the fascia brackets.

-The energy absorber is attached to the front fascia.
