Home >> Chevrolet >> 2010 >> HHR L4-2.0L Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Diagrams >> Electrical Diagrams >> Radio/Navigation System Schematics

Radio/Navigation System Schematics




Radio/Navigation System Schematics

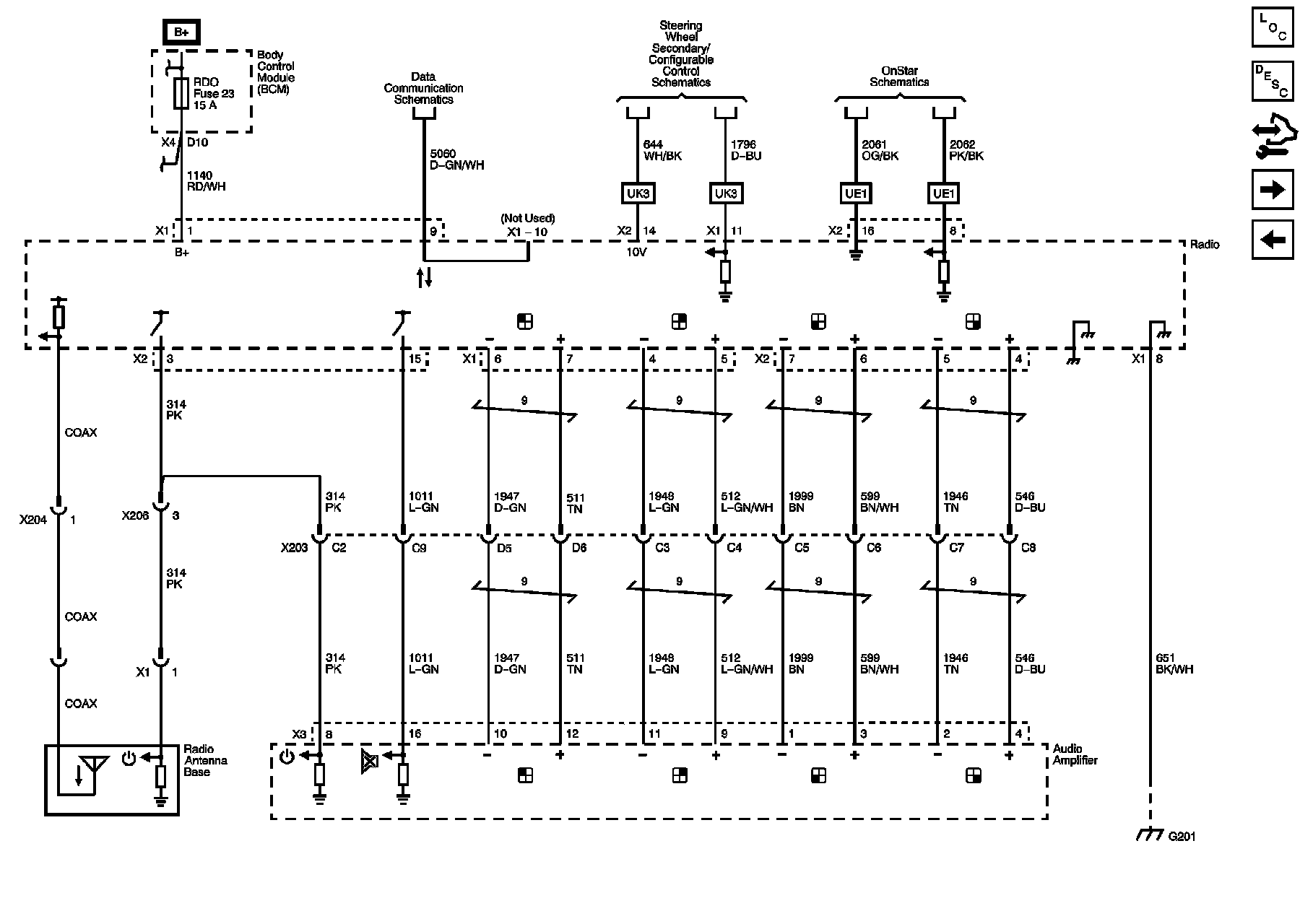

Radio (UW5)

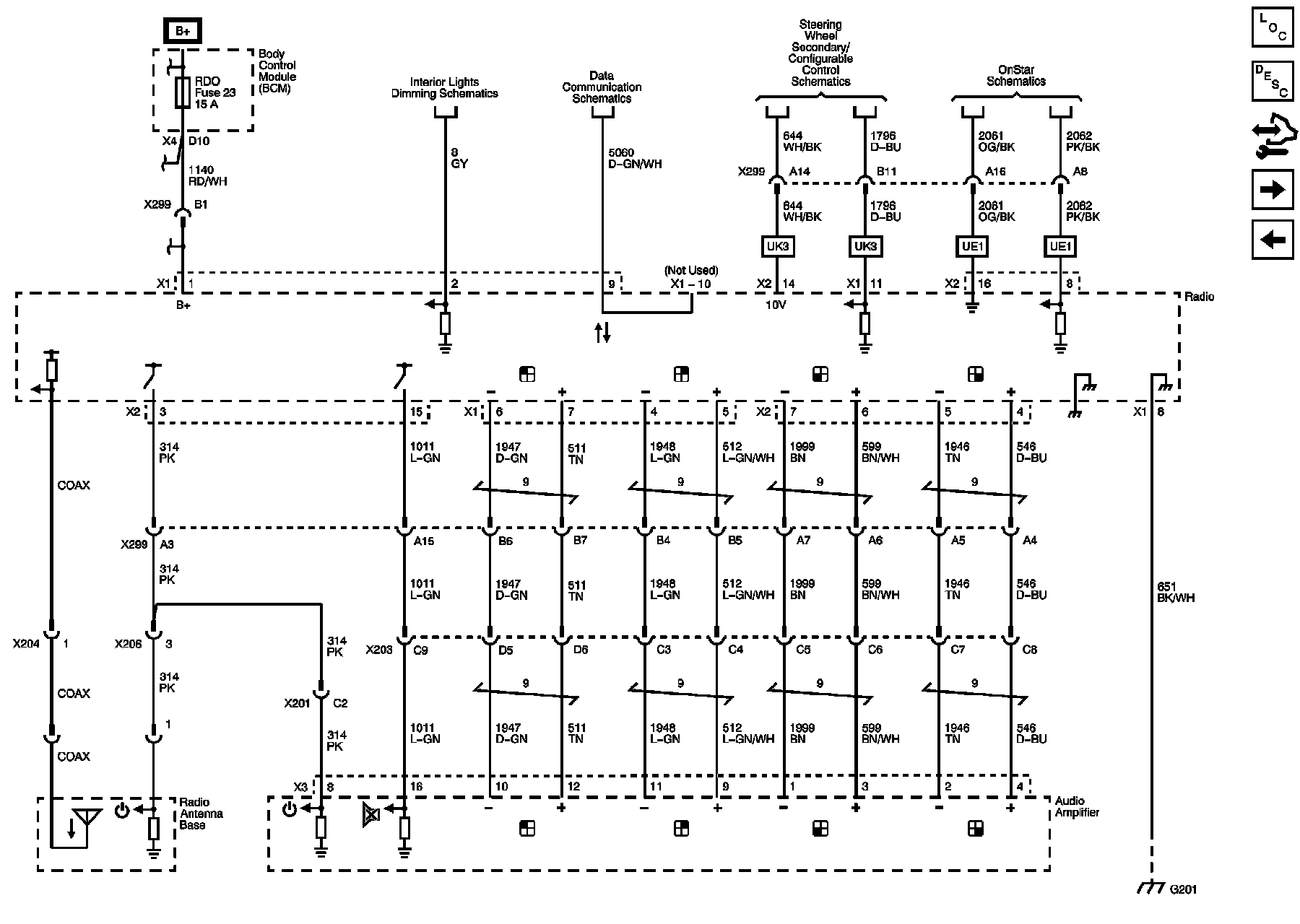

Radio (UQ3)





Radio (UQ3 with PAL)

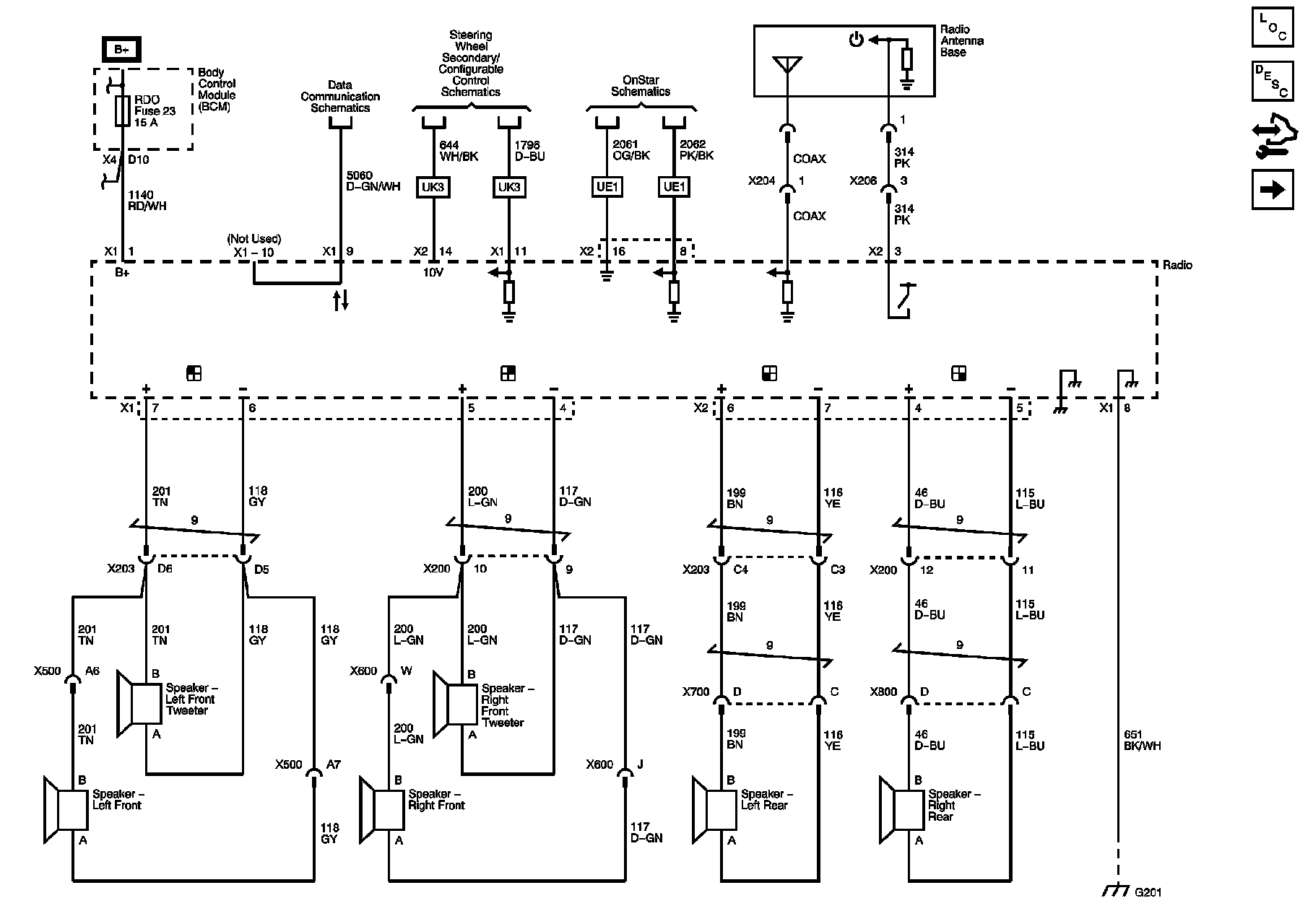

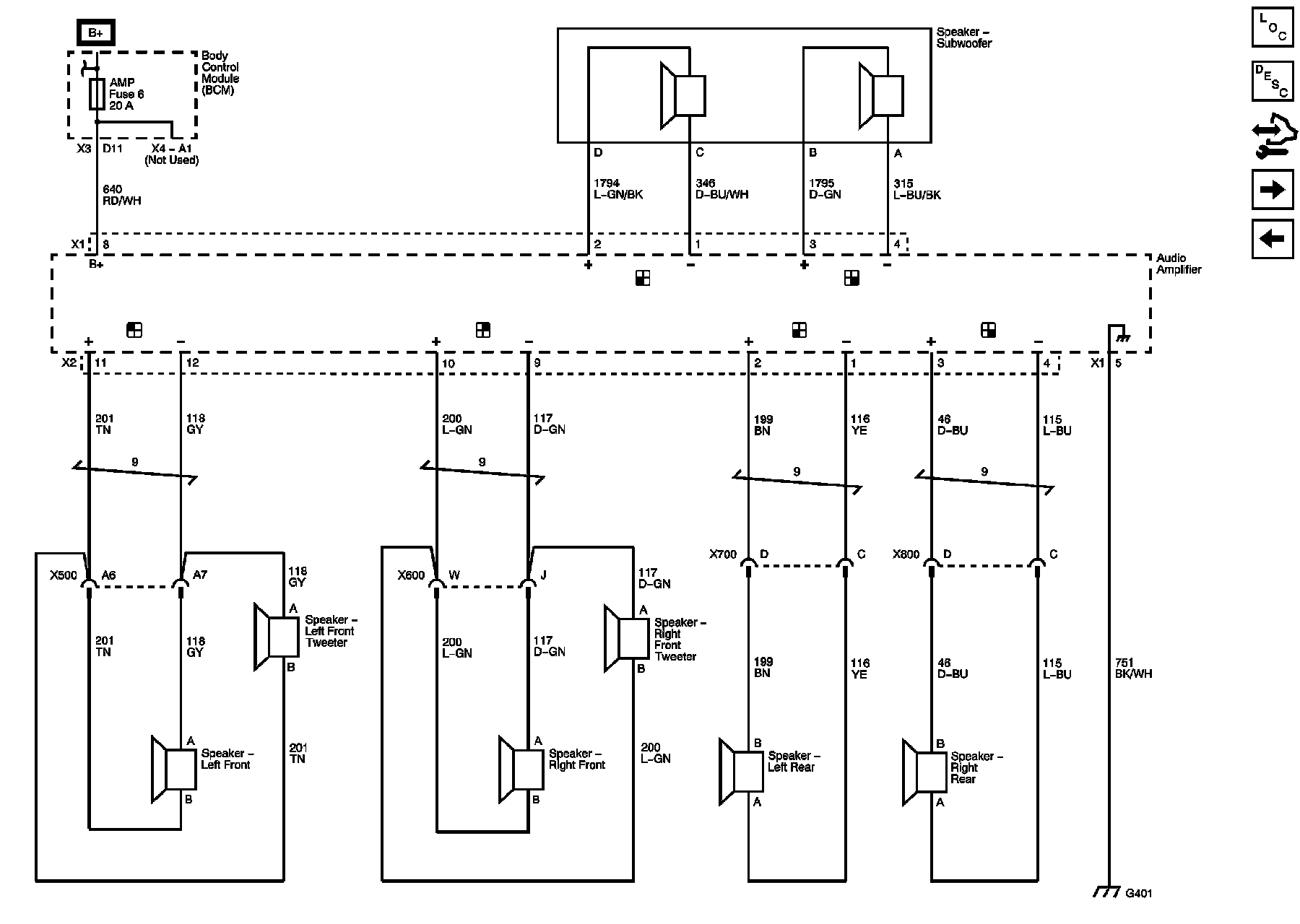

Amplifier (UQ3)





Digital Radio Receiver (U2K)





Digital Radio Receiver (U2K with PAL)





Personal Audio Link (PAL)
