X101

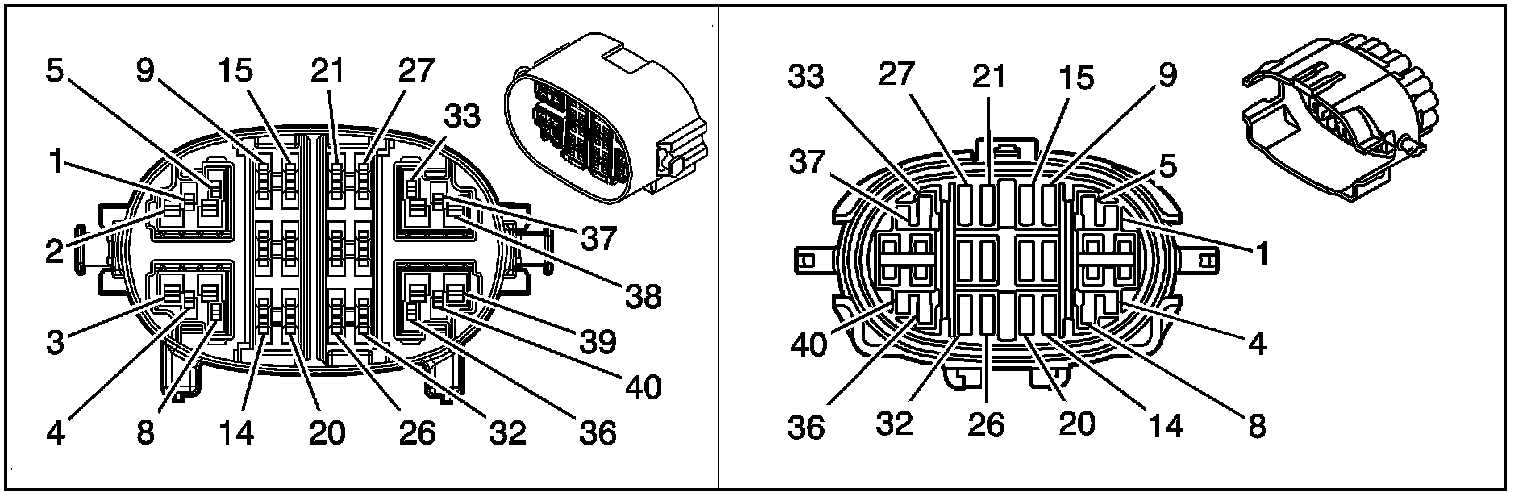

Inline Harness Connector End Views

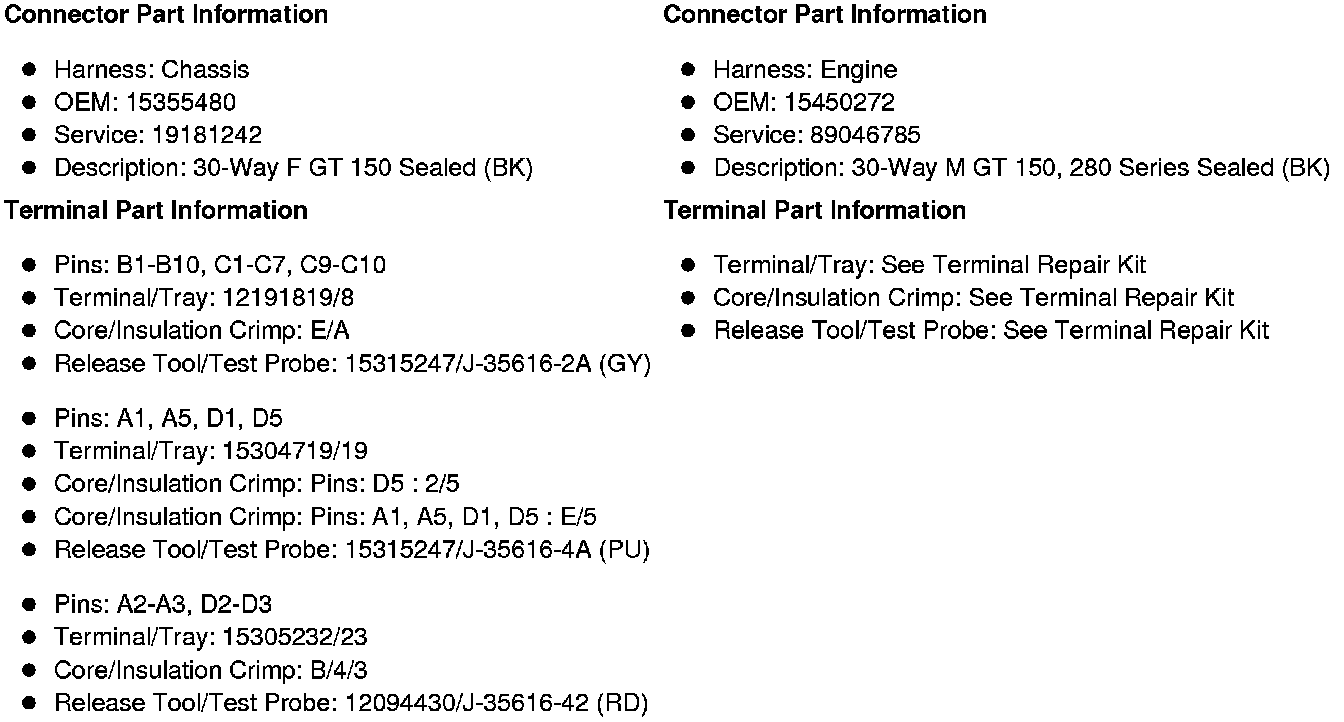

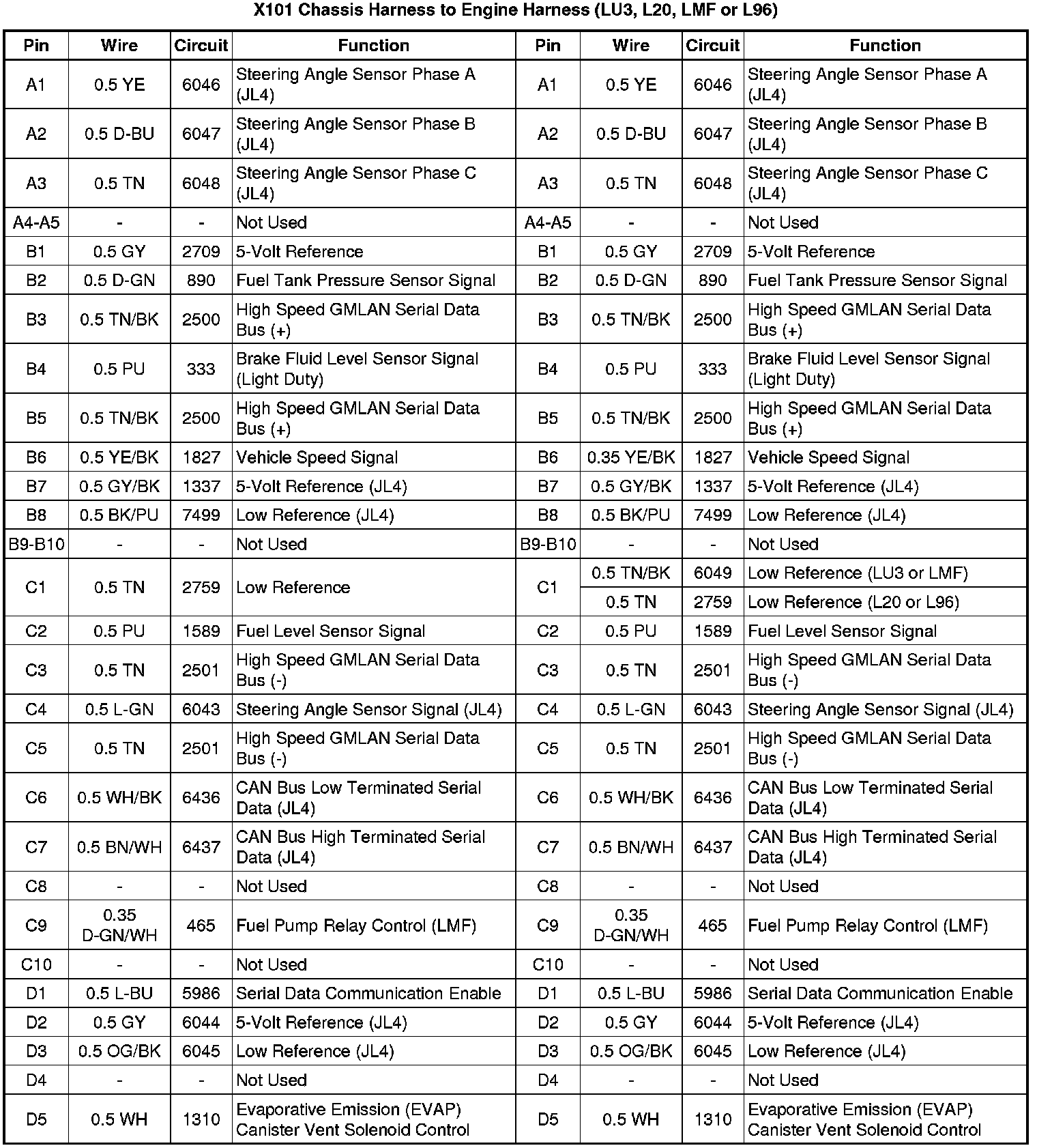

X101 Chassis Harness to Engine Harness (LU3, L20, LMF or L96)

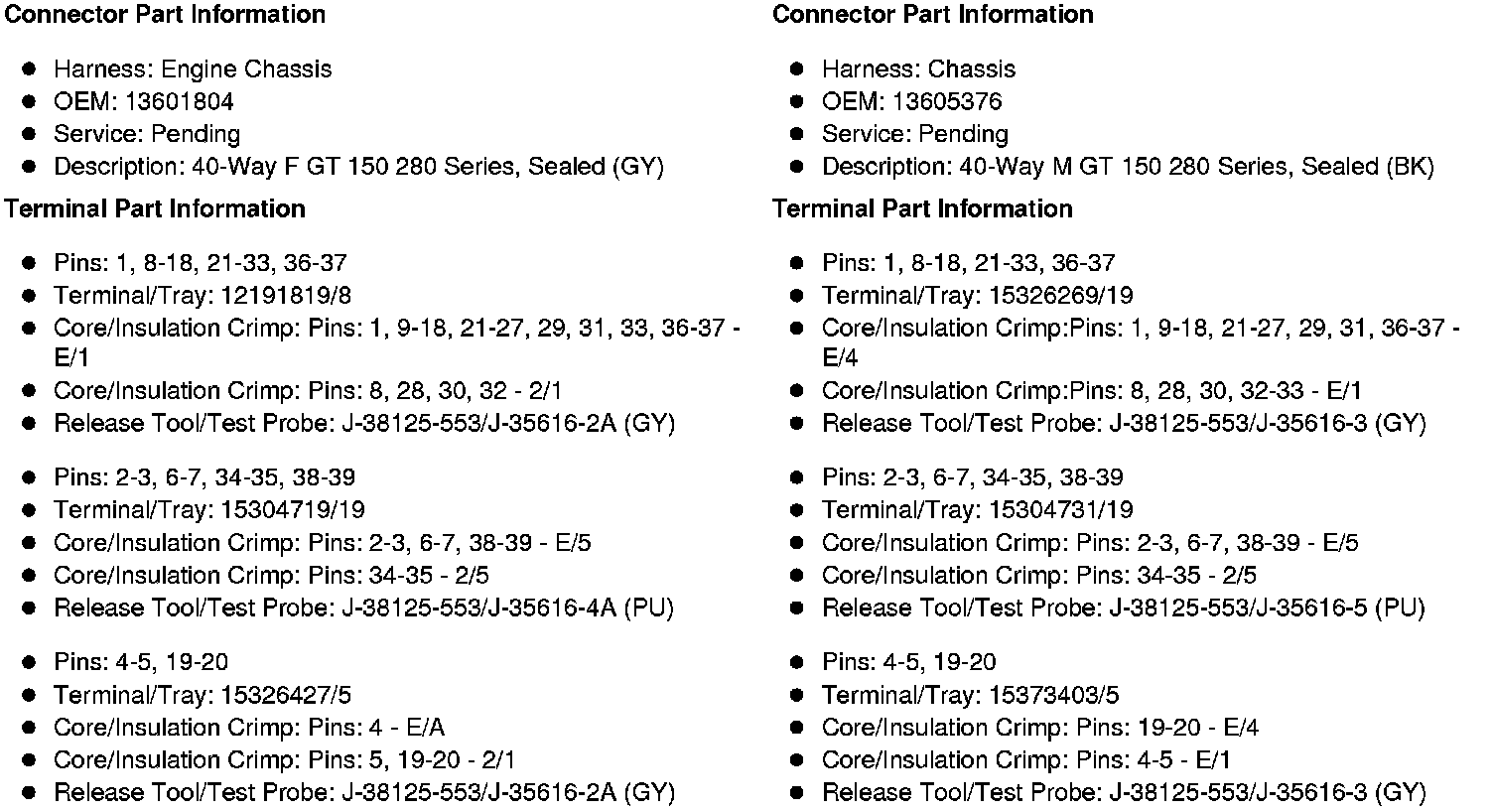

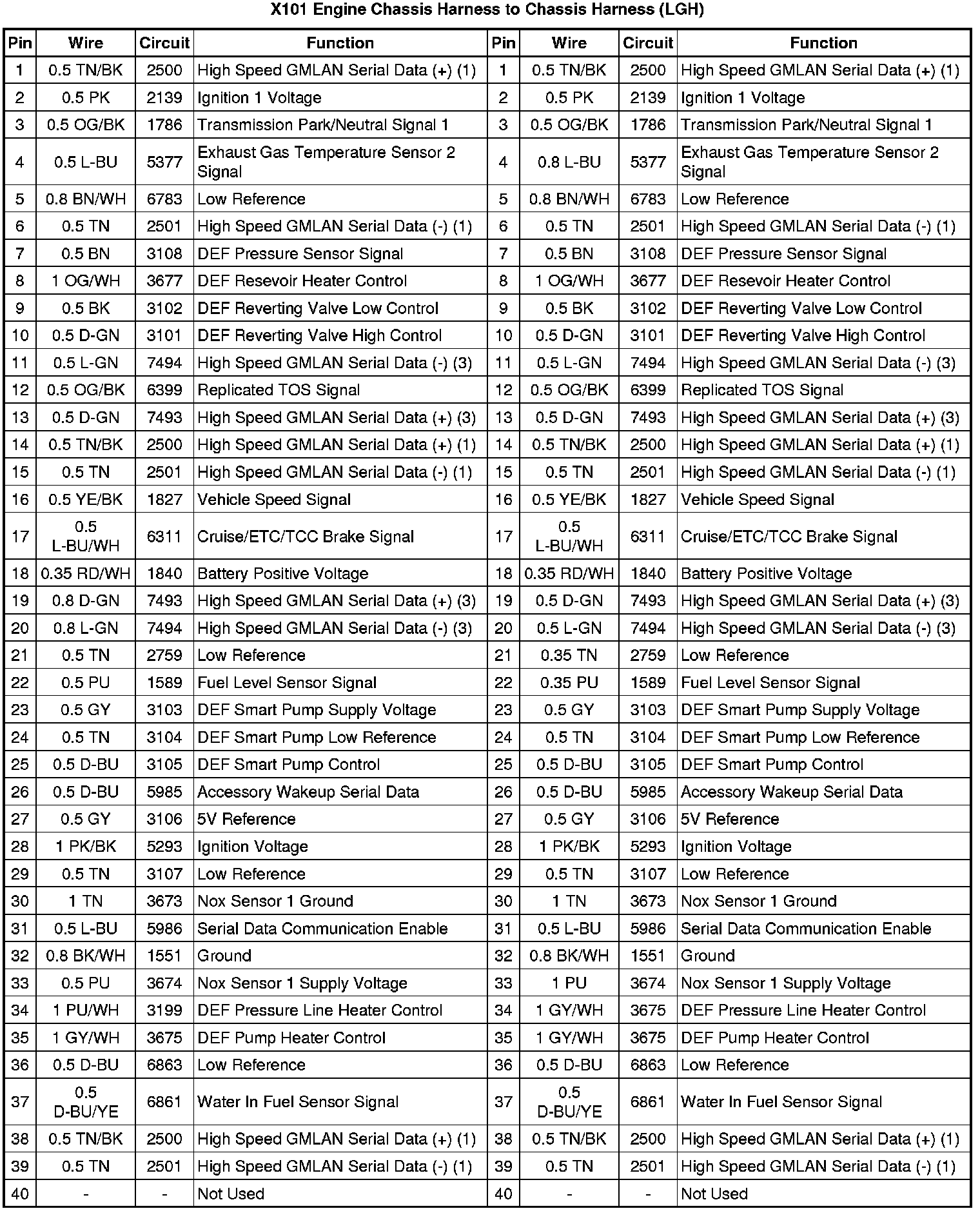

X101 Engine Chassis Harness to Chassis Harness (LGH)

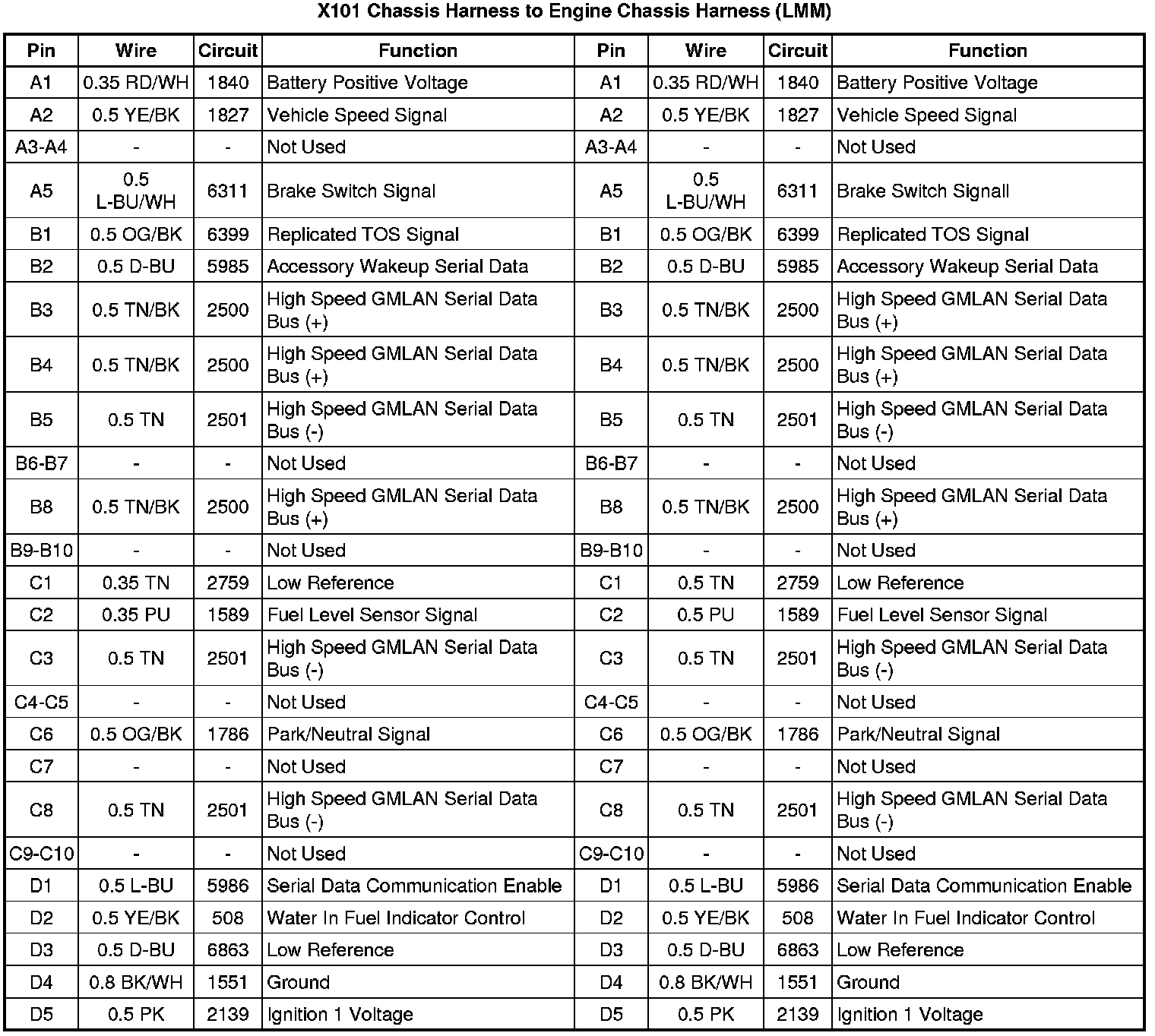

X101 Chassis Harness to Engine Chassis Harness (LMM)
