Master Grounds List
Master Grounds List
Master Electrical Component List
X500 - G102:

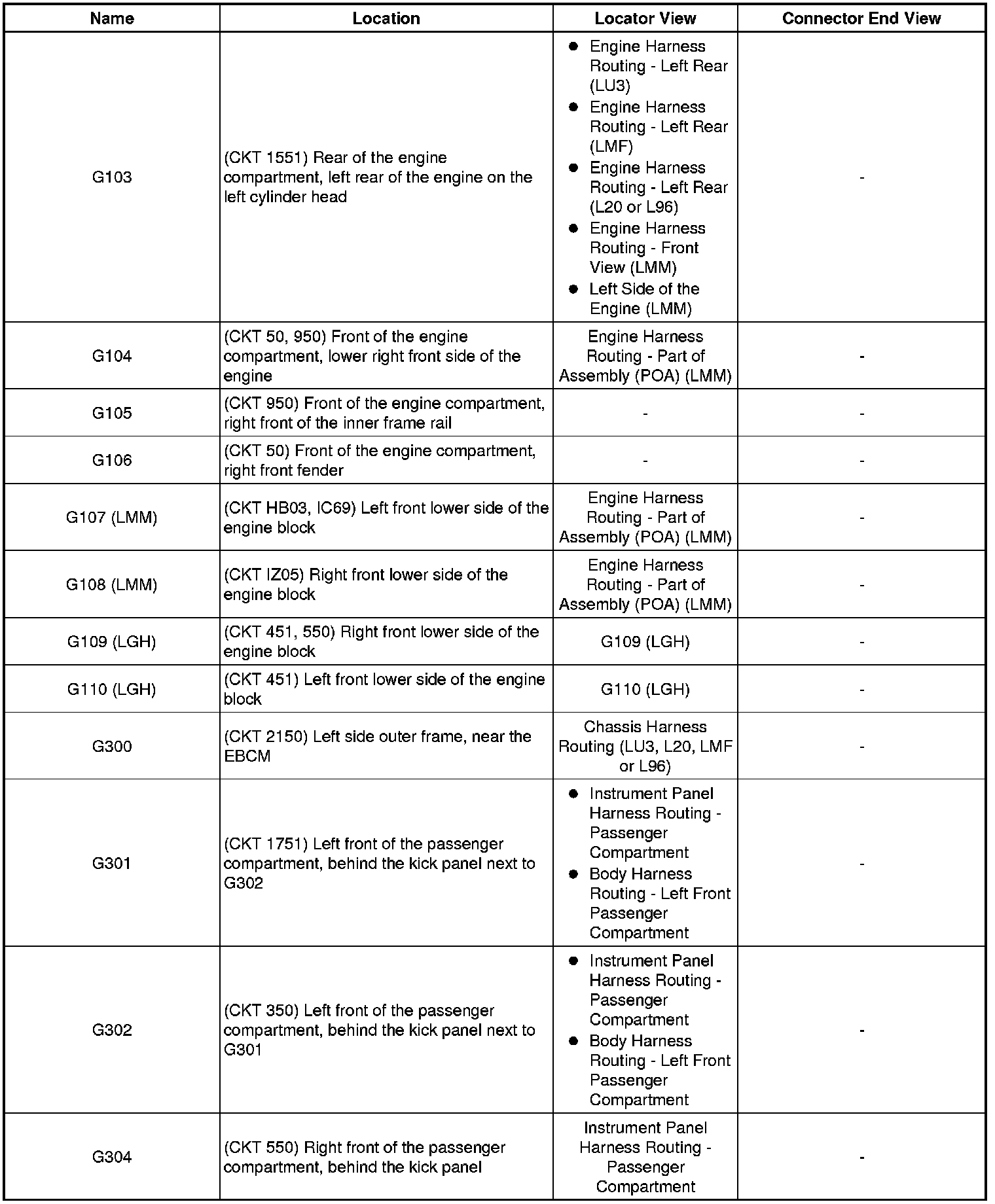

G103 - G304:

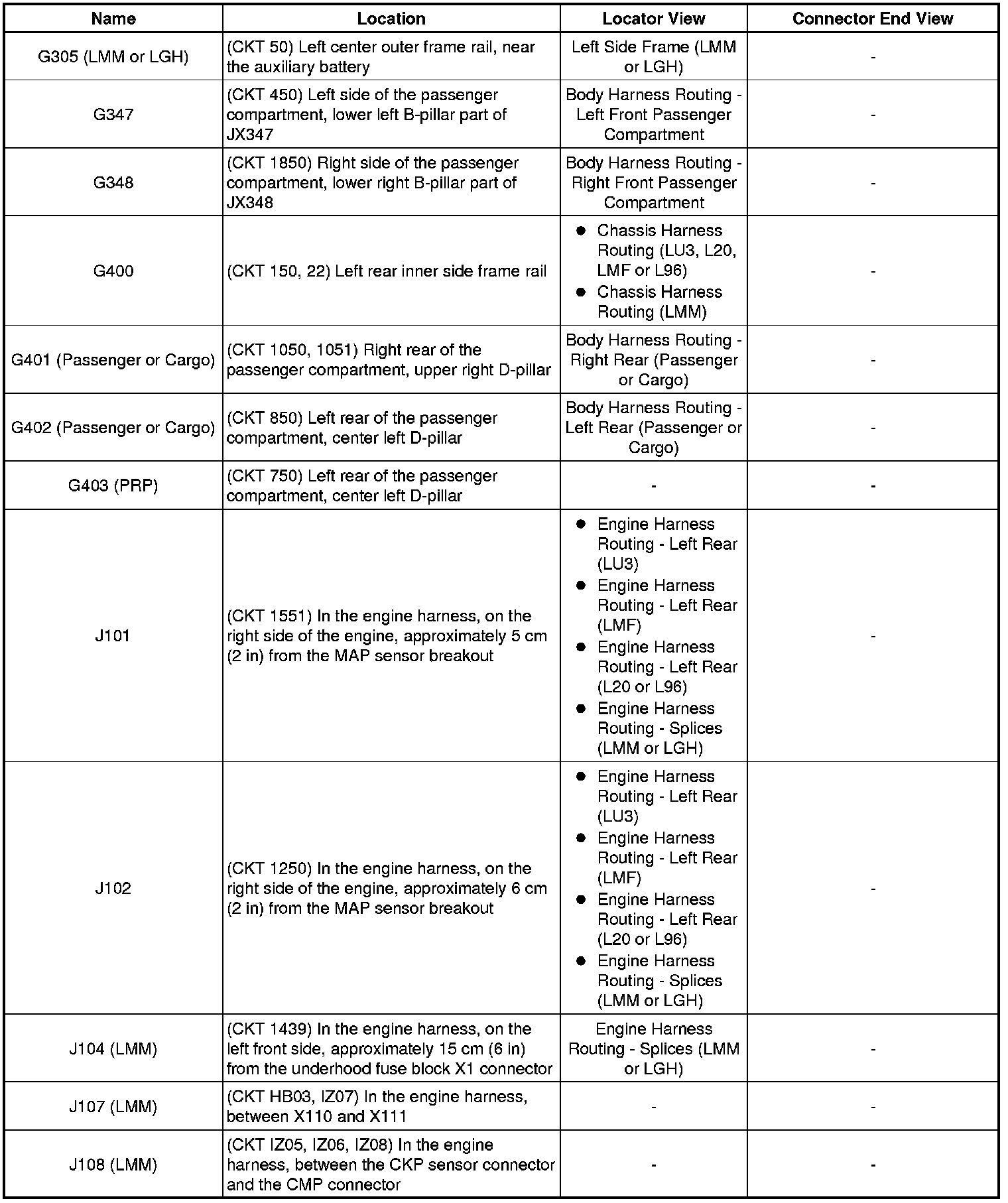

G305 - J108:
