Home
>>
Chevrolet
>>
2010
>>
Express 1500 AWD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
Cruise Control
Cruise Control

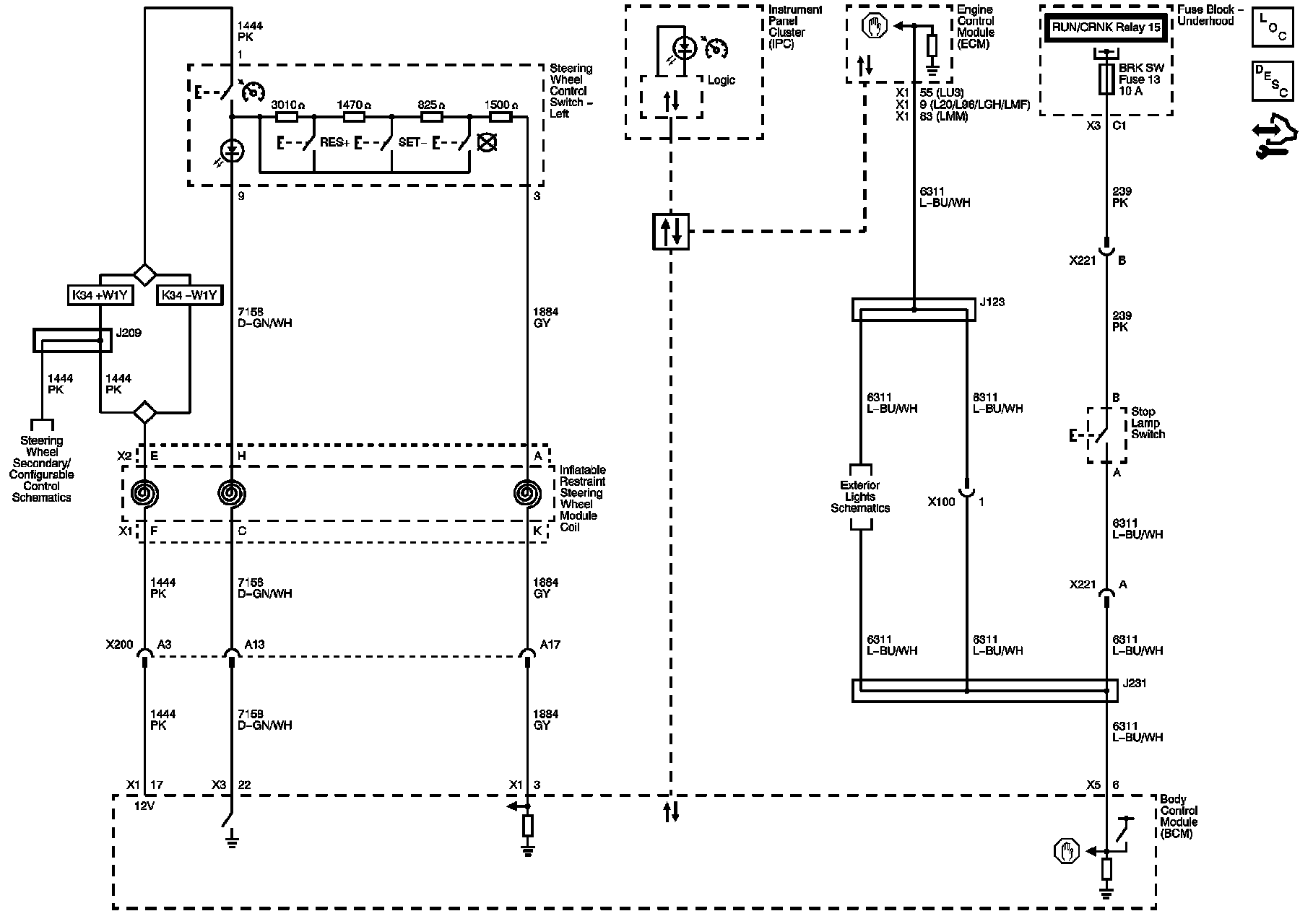

Schematics
Cruise Control
(K34)
