Antilock Brakes / Traction Control Systems



Antilock Brake System Schematics

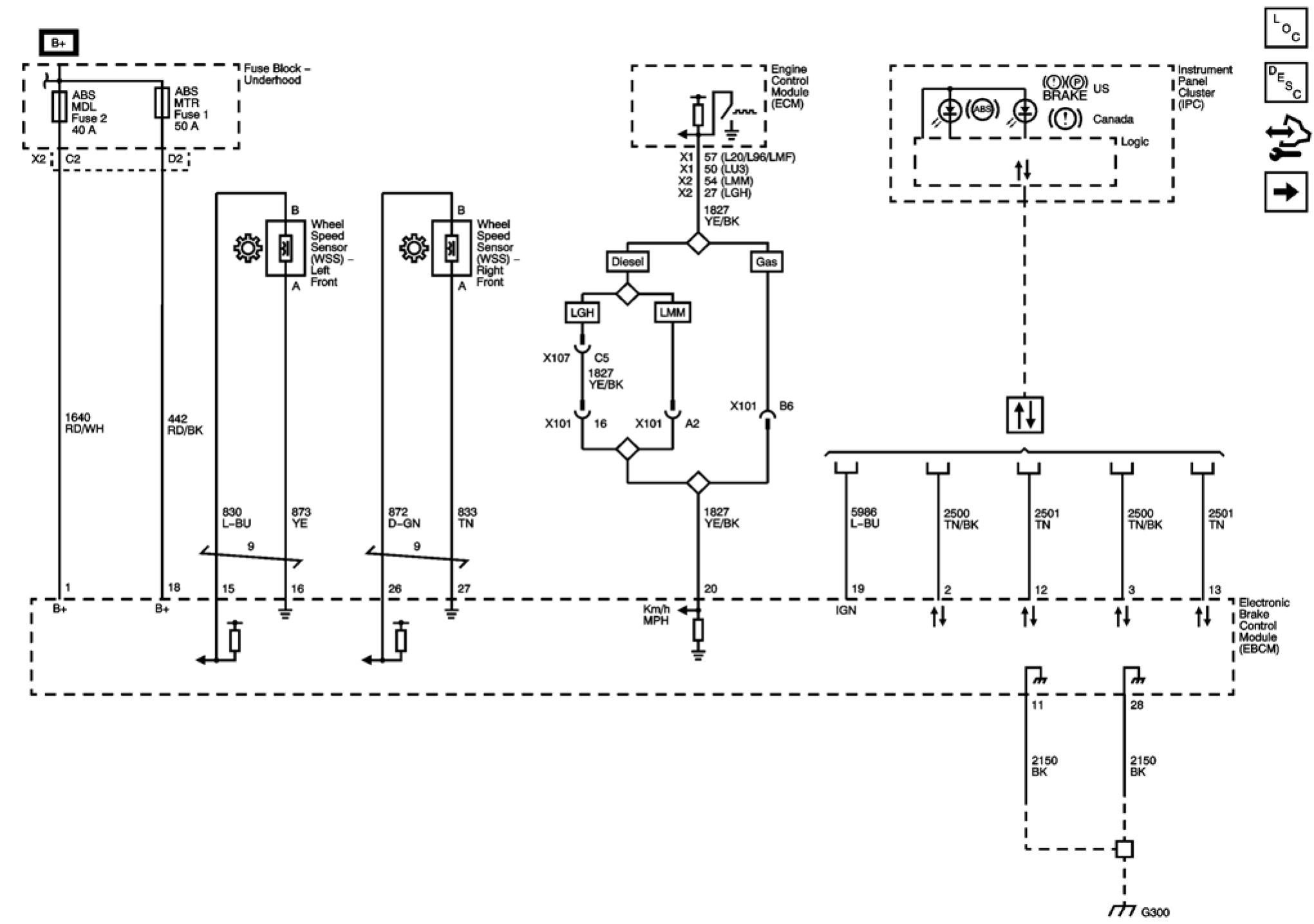

Power, Ground, Serial Data, Speed Signals and Indicators (JL9)

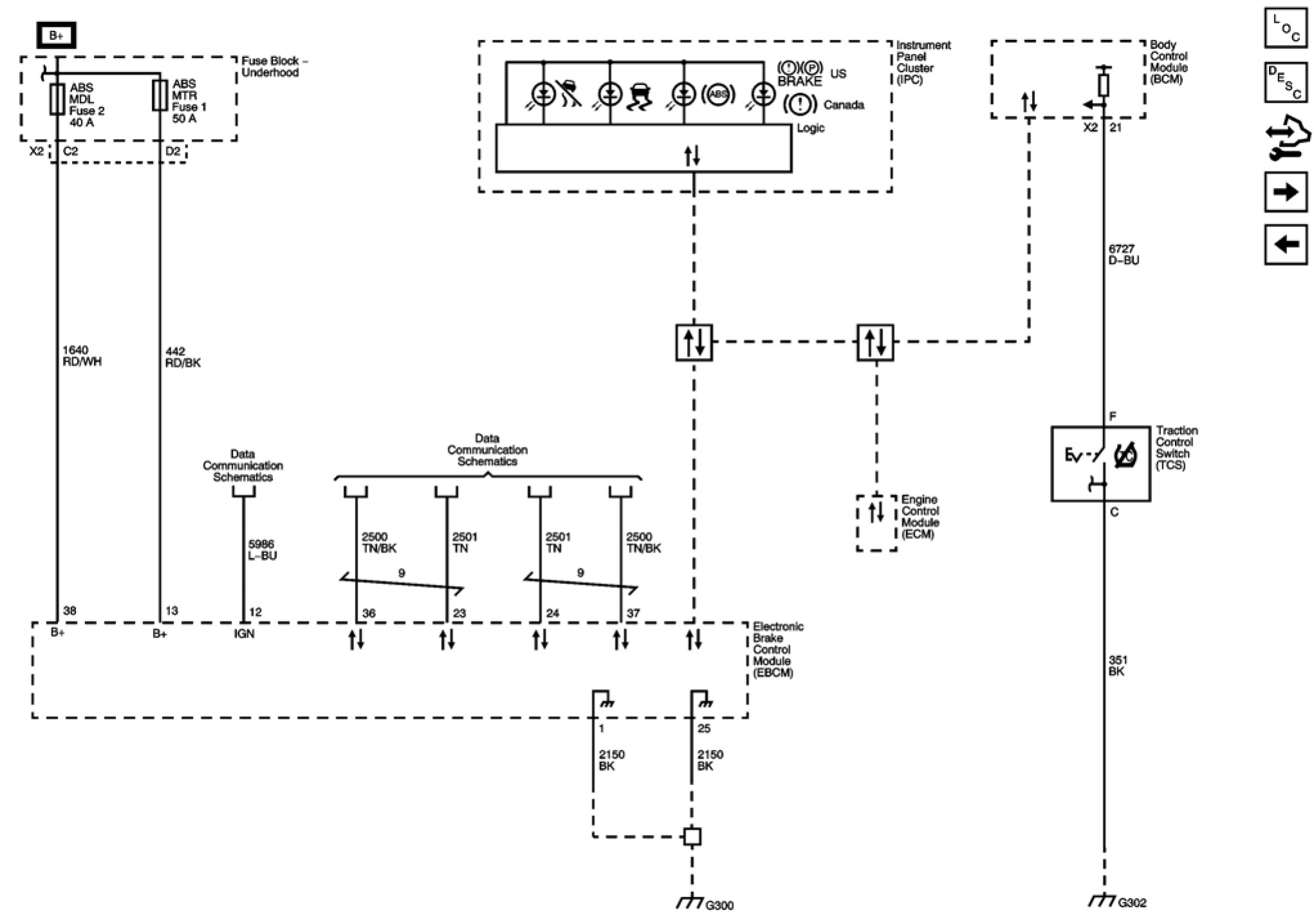

Power, Ground, Serial Data, Indicators, and Traction Control Switch (JL4)

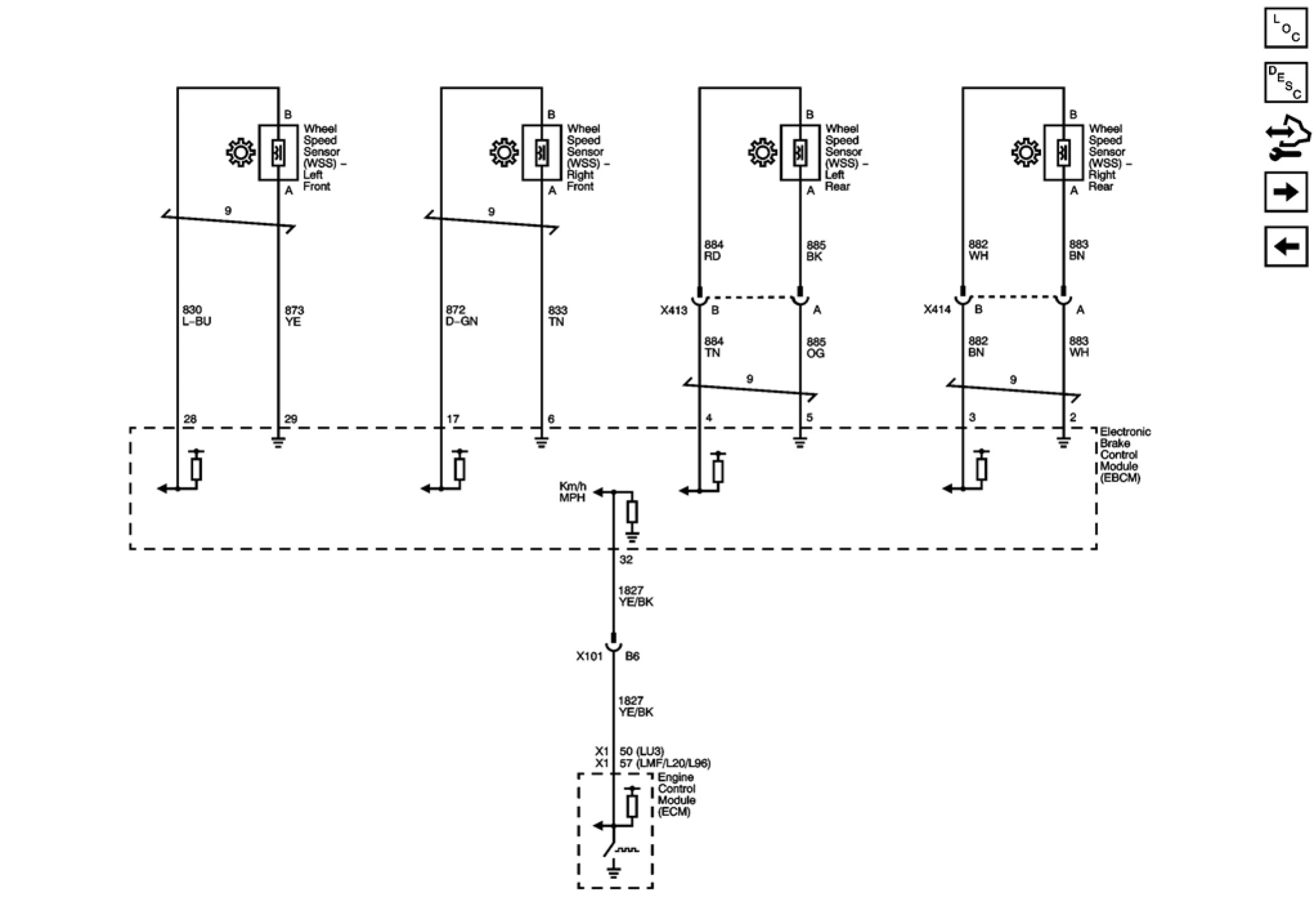

Speed Signals (JL4)

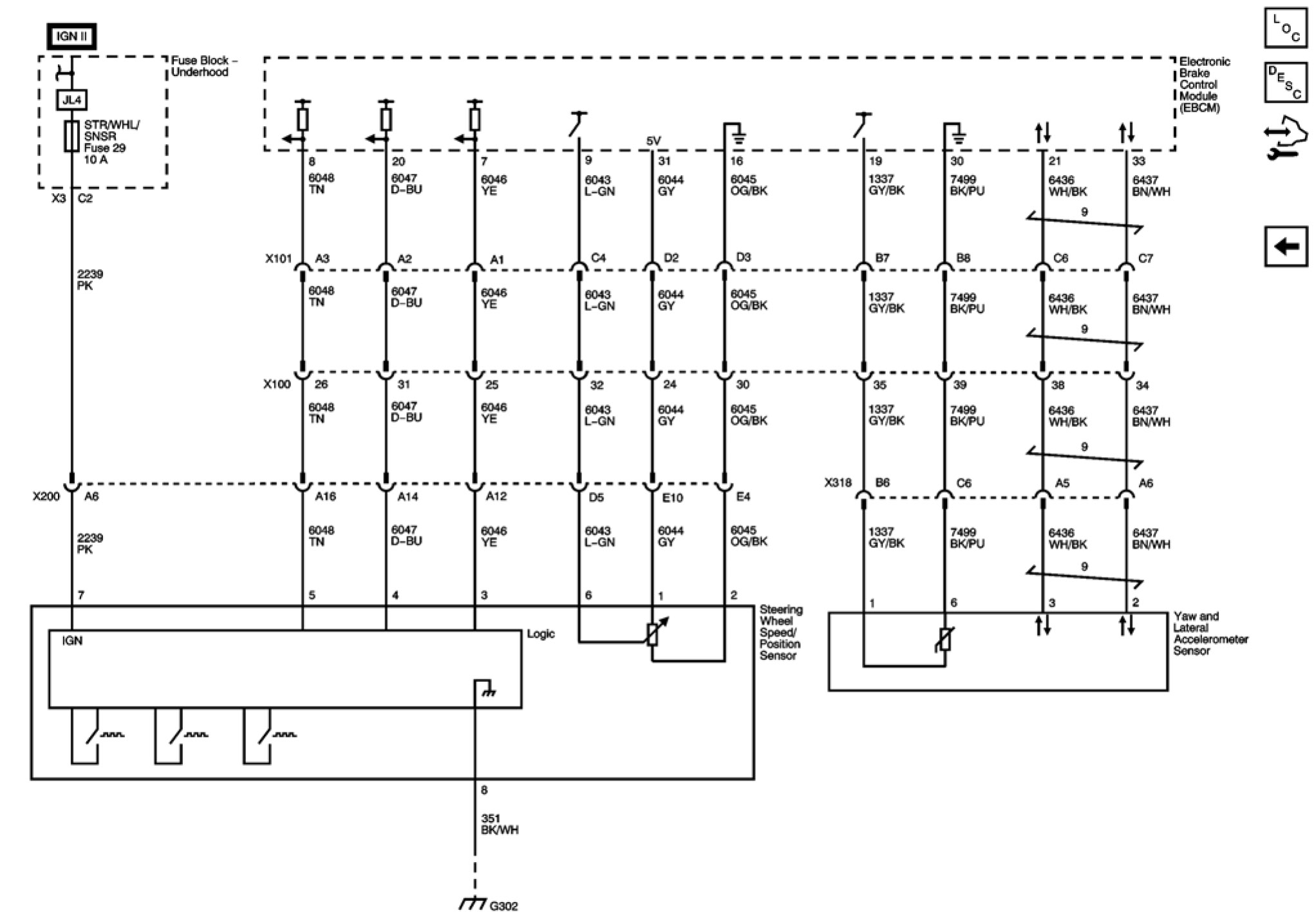

StabiliTrak Steering Wheel Position Inputs and Yaw and Lateral Accelerometer Sensor (JL4)
