Master Connector List
Master Electrical Component List

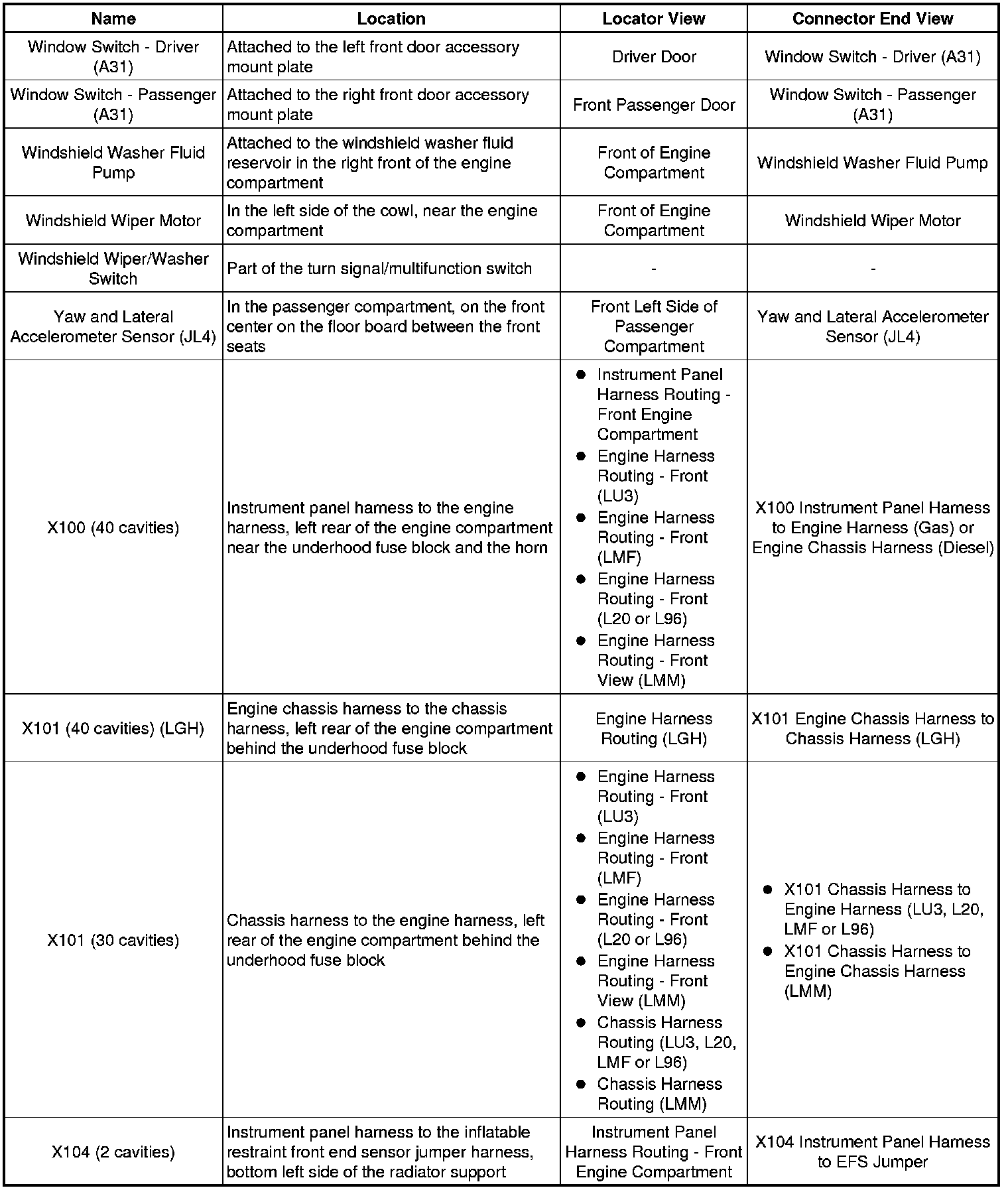

Wi - X104:

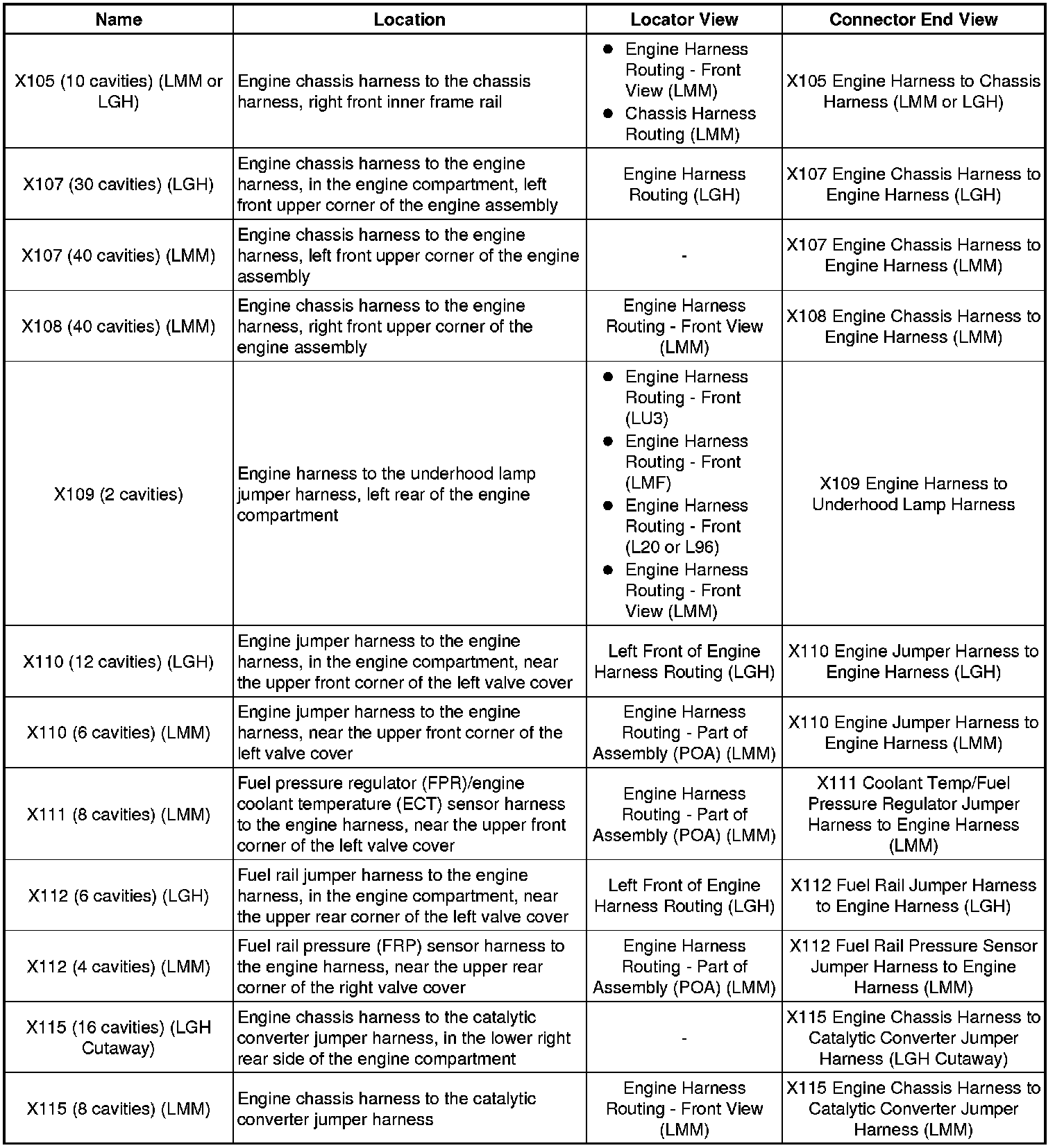

X105 - X115:

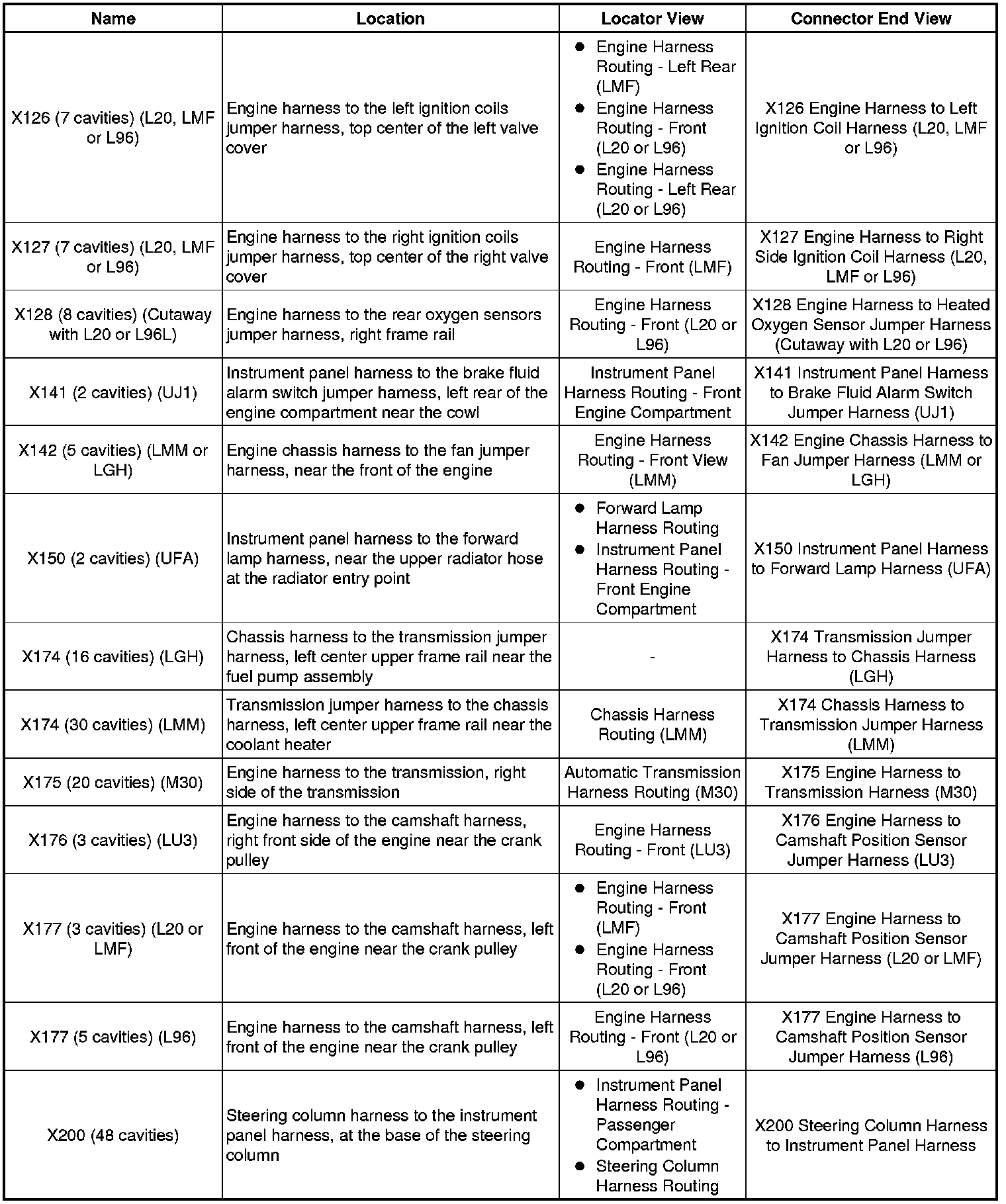

X126 - X200:

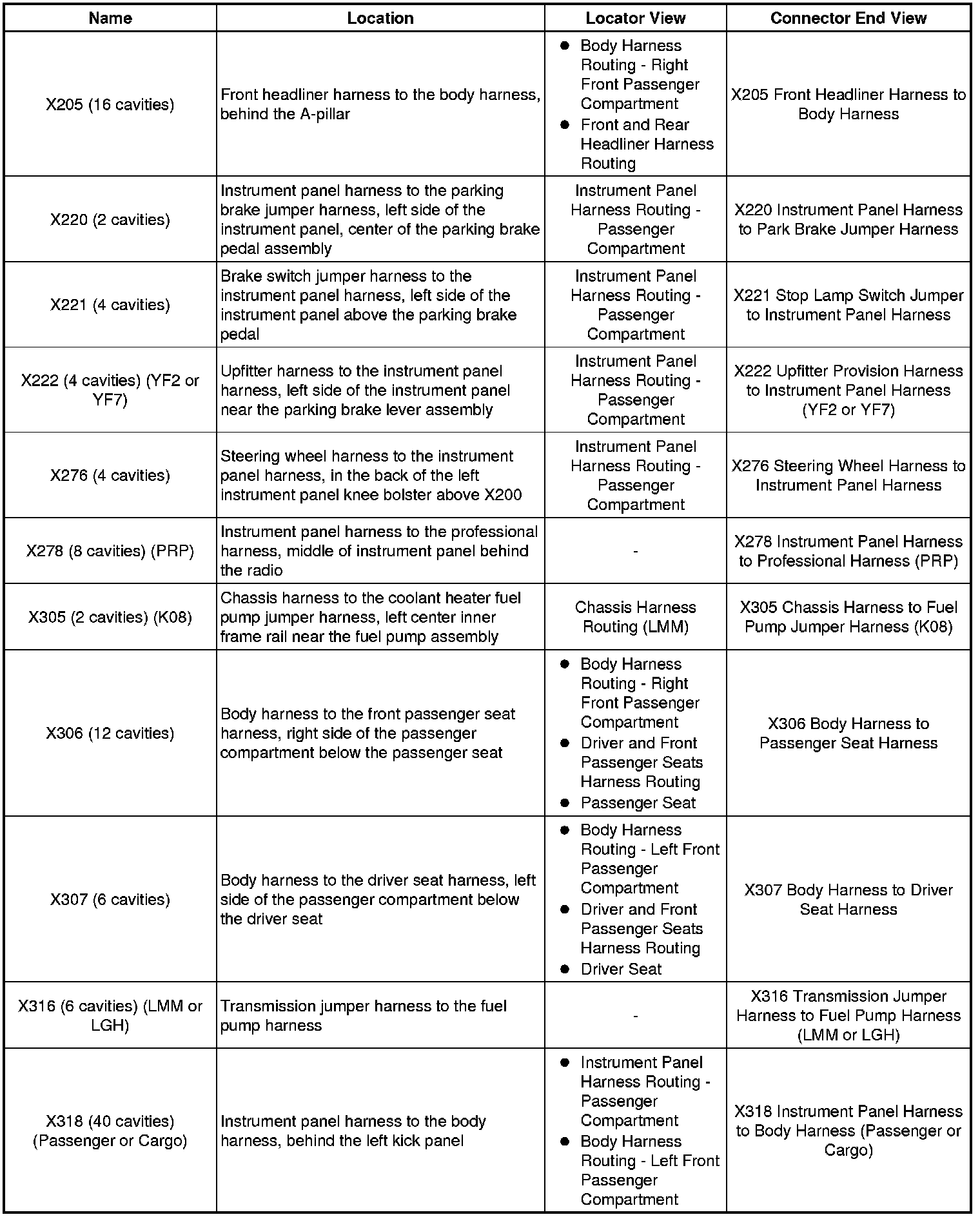

X205 - X318:

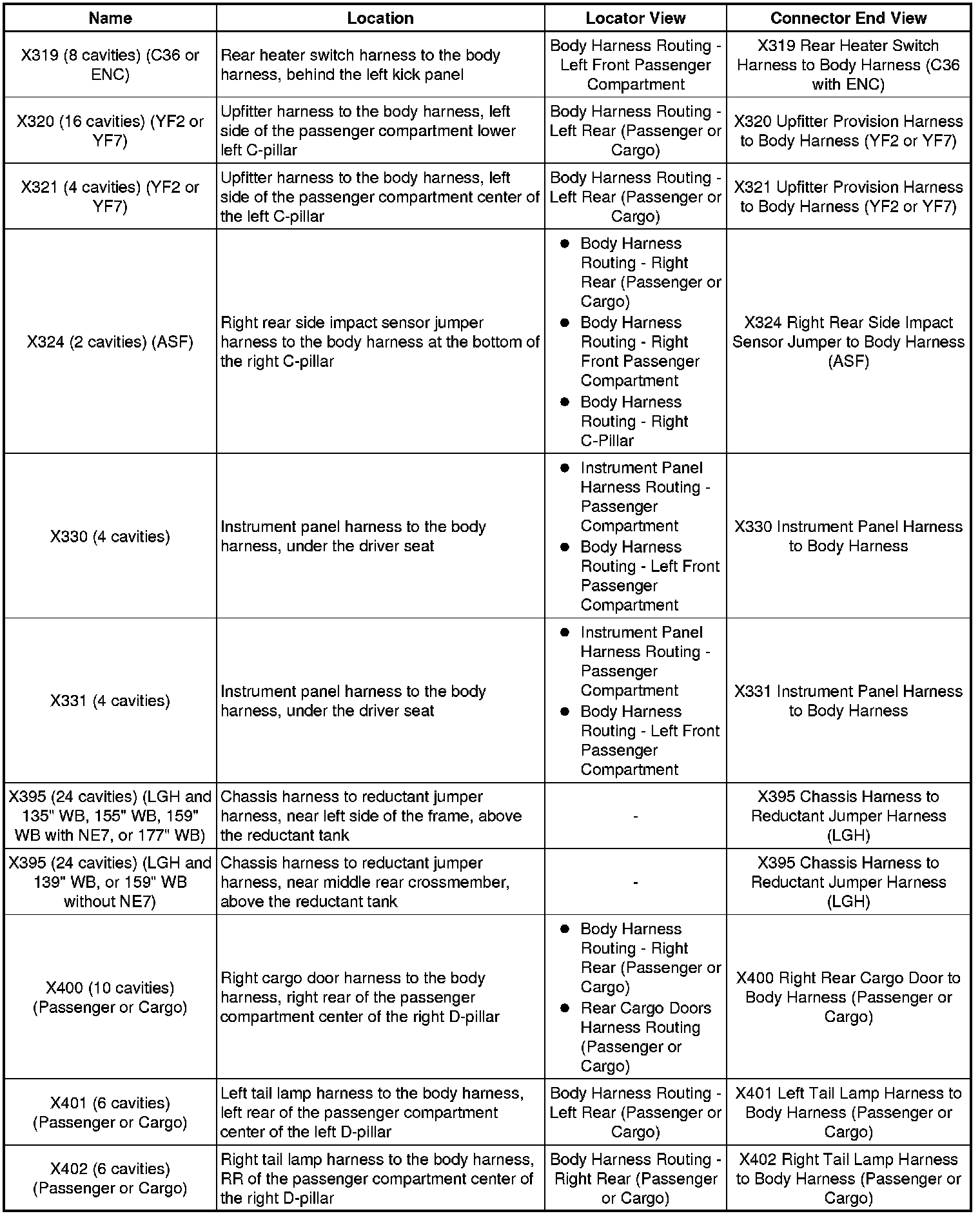

X319 - X402:

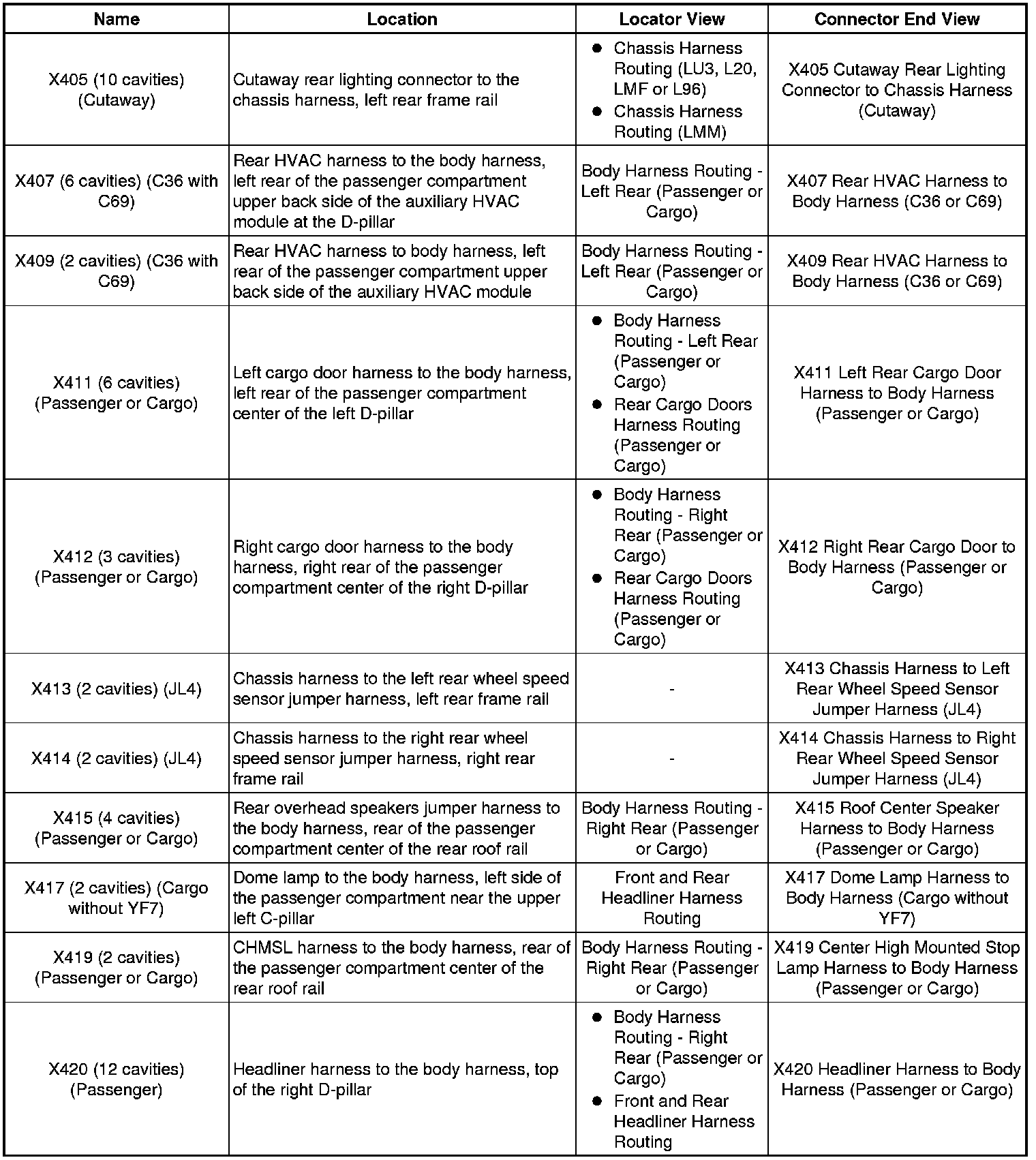

X405 - X420:

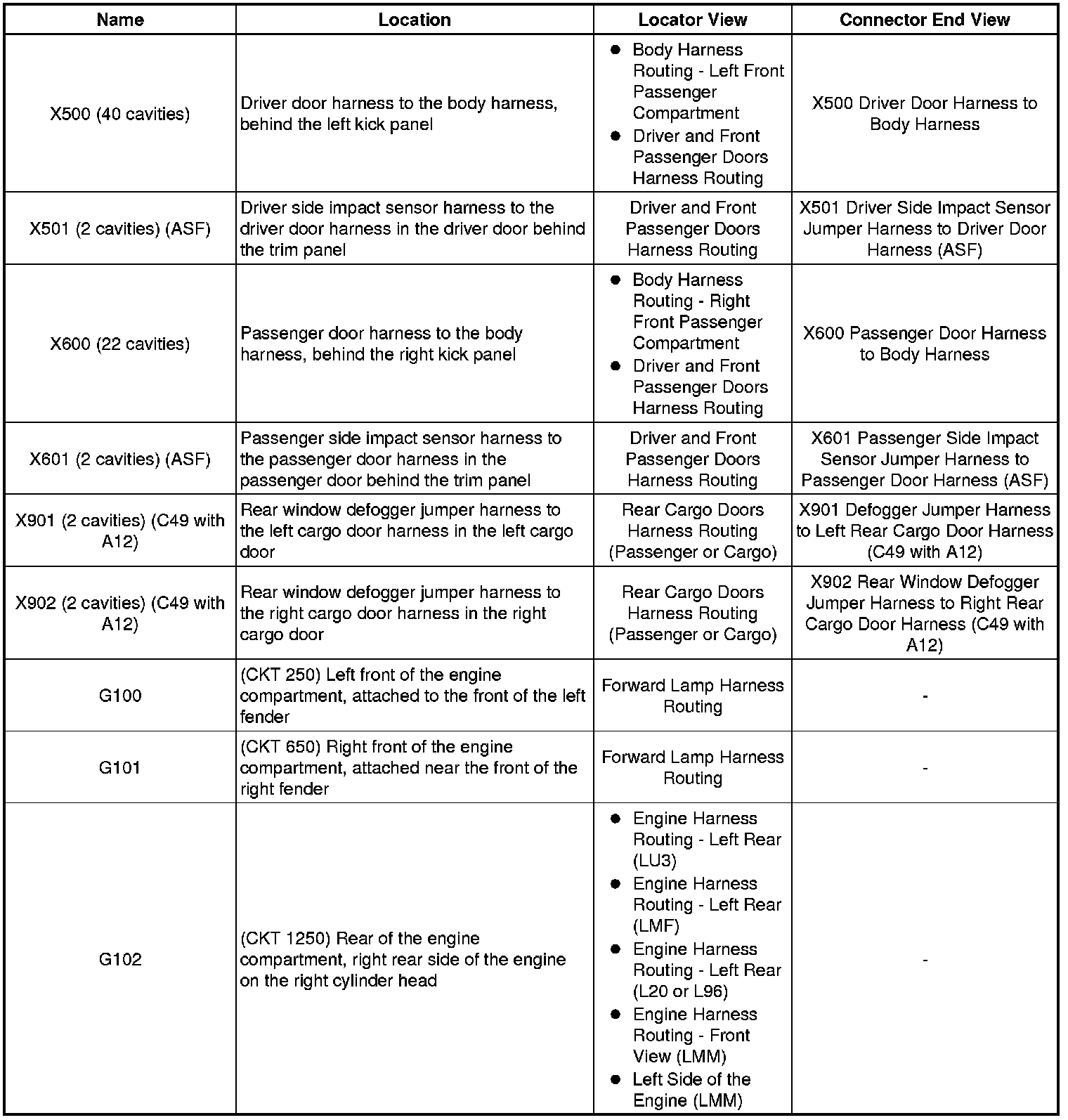

X500 - G102:
